Mounting Space
To allow for heat dissipation and facilitate replacement, ensure that there are at least 20 to 40 mm between the FC6A Series
MICROSmart and surrounding equipment and ducts.

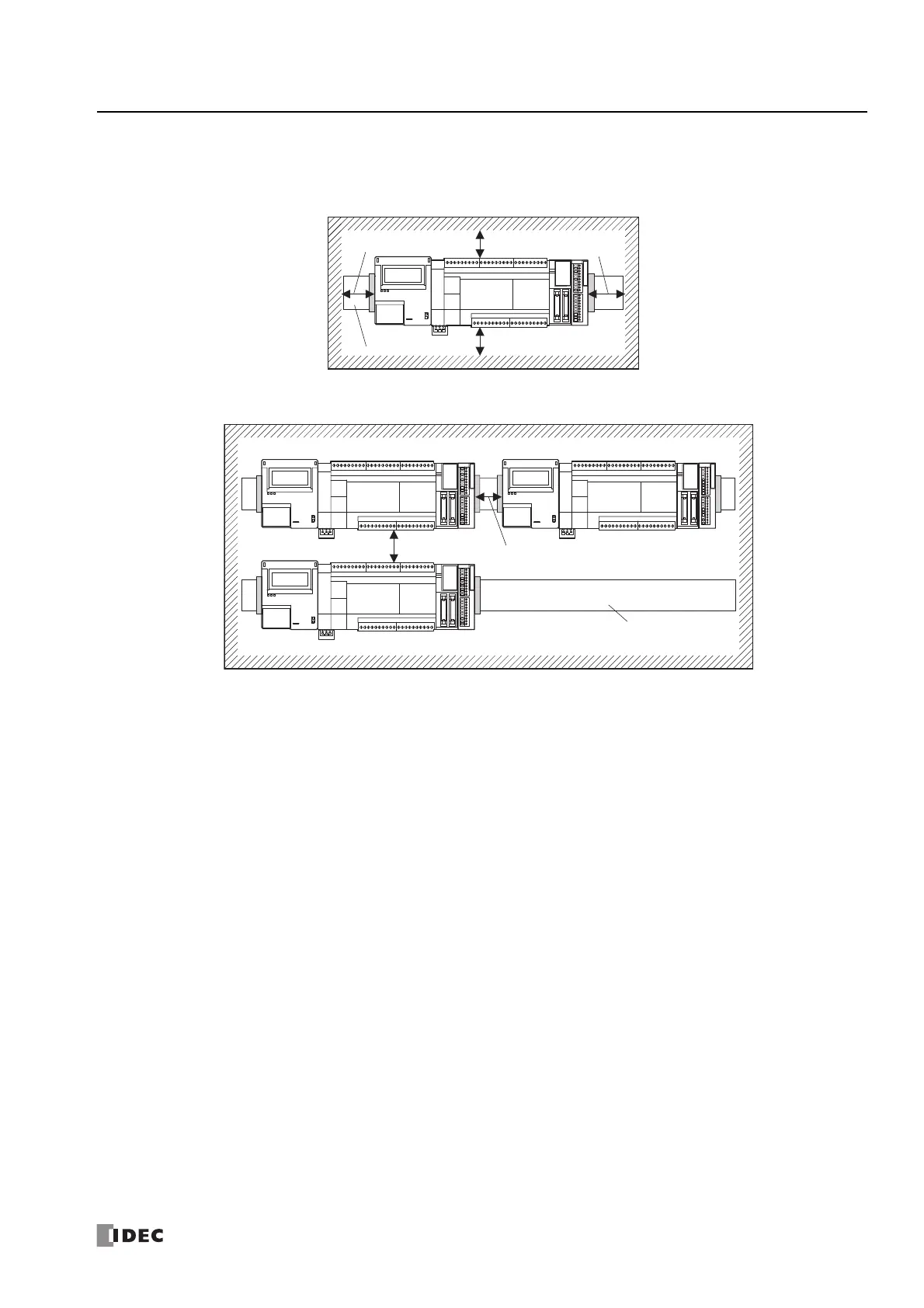

Mounting Two or More Units
20 mm minimum
20 mm minimum
40 mm minimum
40 mm
minimum
DIN Rail
20 mm minimum
40 mm minimum
DIN Rail
