Assembling the Cartridge Base Module and a Cartridge

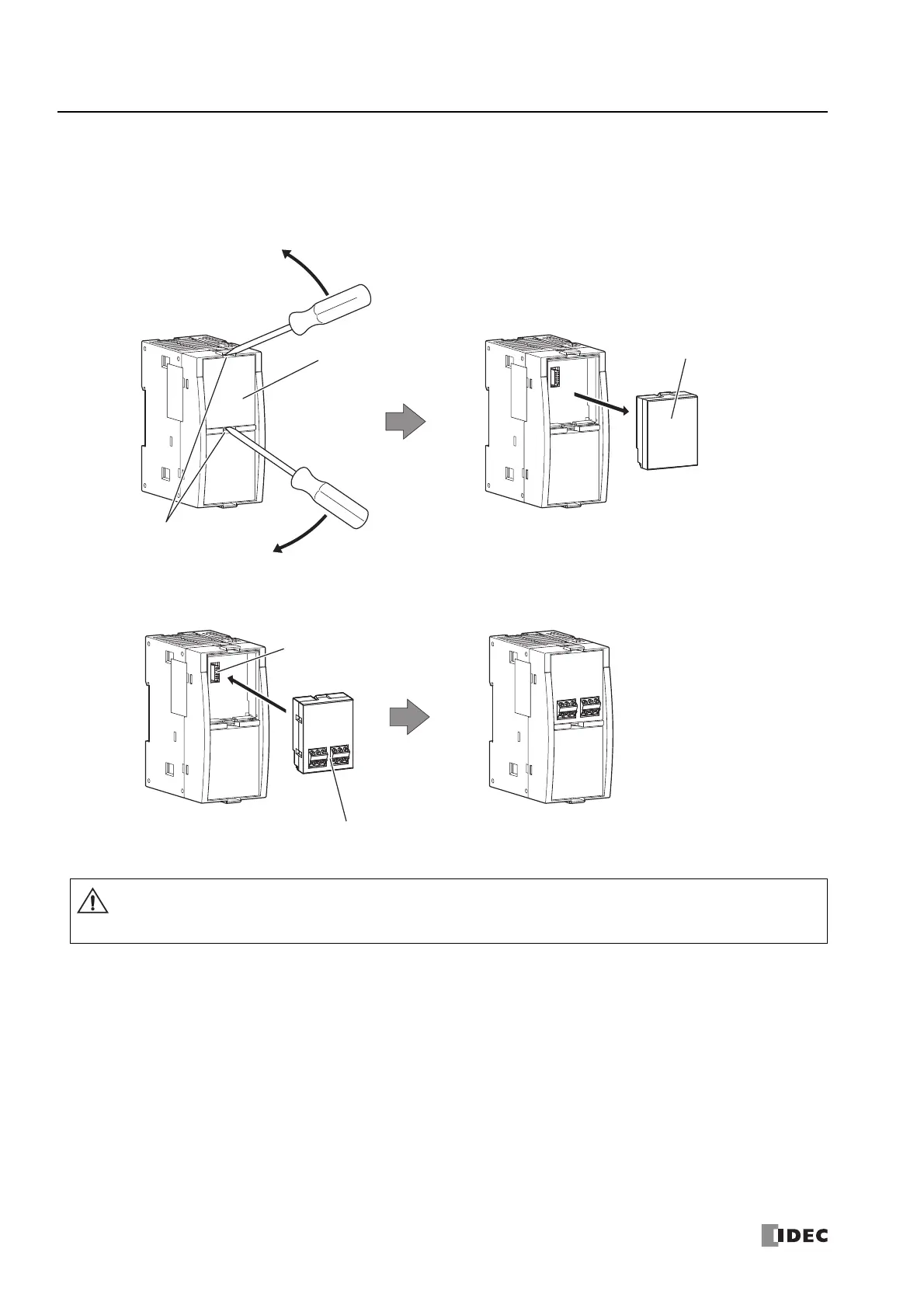

The following procedure describes the assembly of the cartridge base module (cartridge slot 1) and an analog I/O cartridge.
1. Insert a flathead screwdriver into each of the screwdriver slots (two locations) on the cartridge base module (cartridge slot 1)
and remove the dummy cartridge straight off the cartridge base module by pushing down the dummy cartridge tabs.
2. Take care with the vertical orientation of the analog I/O cartridge and firmly push the analog I/O cartridge connector onto
cartridge slot 1 on the cartridge base module.
Note: The cartridge base module cannot be attached to the All-in-One CPU module.
Dummy Cartridge
DummyCartridge
Screwdriver Slot
Cartridge Slot 1
Analog I/O Cartridge
 Do not perform this work when the FC6A Series MICROSmart is powered. Otherwise there is a risk of damage.
 Attach and remove the cartridge straight in relation to the cartridge base module. If you attach or remove the cartridge at
an angle, there is a risk of damage or communication failure.
Caution
