5: F UNCTIONS AND S ETTINGS
5-12 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

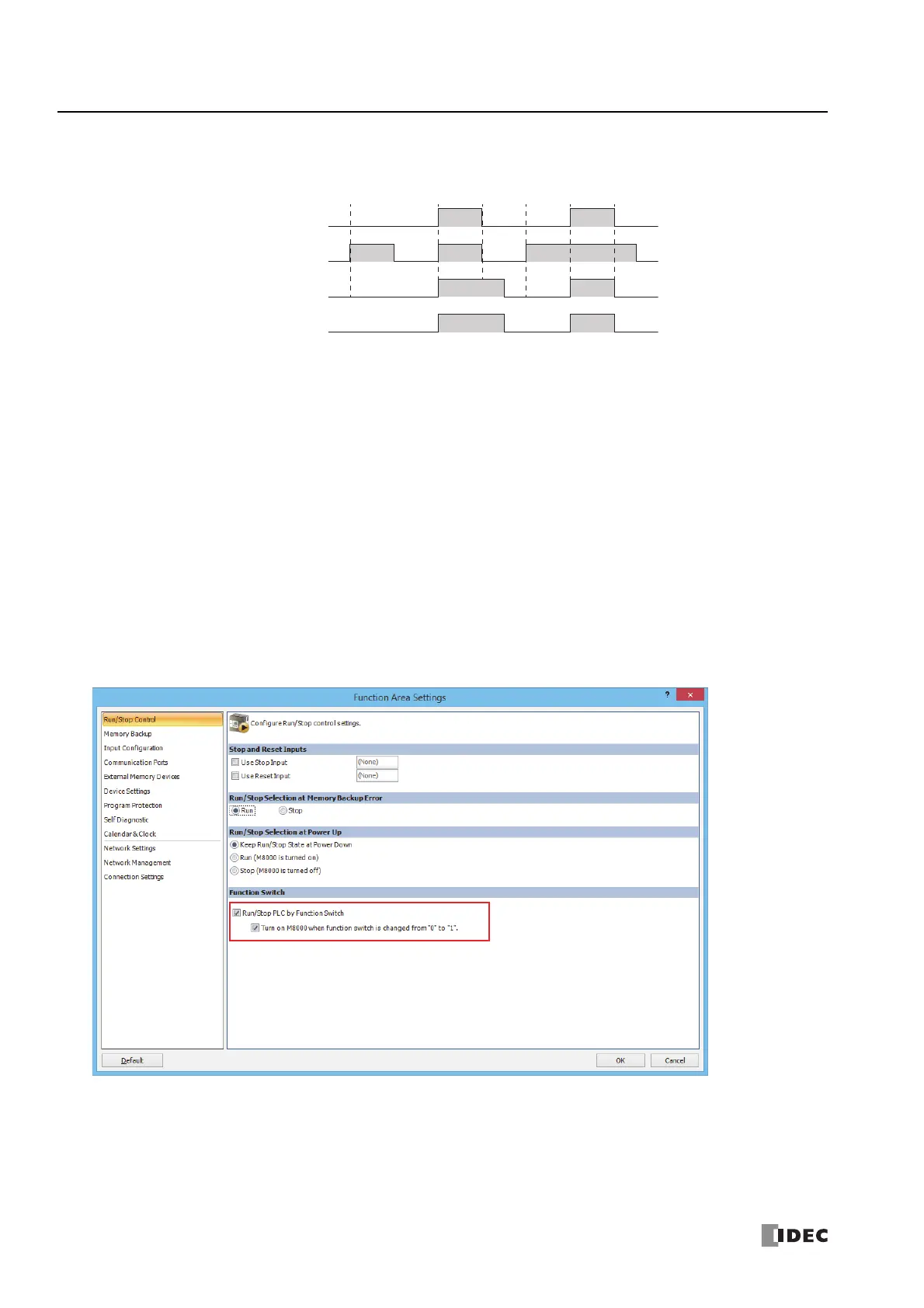

When Run/Stop PLC by Function Switch and Turn on M8000 when function switch is changed from "0" to "1". are
enabled (For the default setting)
WindLDR Settings
When assigning the function to control FC6A Series MICROSmart running and stopping to the function switch, you must configure
Run/Stop Control under Function Switch in the WindLDR Function Area Settings.
 Operation procedure
1. From the WindLDR menu bar, select Configuration > Run/Stop Control.
The Function Area Settings dialog box is displayed.
2. Select the Run/Stop PLC by Function Switch check box.
Select the Turn on M8000 when function switch is changed from "0" to "1". check box.
3. Click OK.
This concludes configuring the settings.
(1) When the function switch is 0, the FC6A Series MICROSmart remains in the stopped state, even when M8000 is turned on.
(2) When the function switch is changed from 0 to 1, and when M8000 is off, it is turned on (remains on when on) and the FC6A
Series MICROSmart runs.
(3) When the function switch is 1, the FC6A Series MICROSmart stops when M8000 is turned off.
(4) When the function switch is changed from 1 to 0, the FC6A Series MICROSmart stops.
* M8073 turns on and off according to the status of the function switch.
RUN/STOP status
Start control
(M8000)
RUN
STOP
ON
OFF
Function switch status
(M8073)
ON
OFF
1
0
Function switch
(When RUN/STOP control setting disabled)
(1) (1)(2) (3) (4)(2)
