FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 5-45
5: F UNCTIONS AND S ETTINGS
Programming WindLDR
To use analog input, you must configure the Function Area Settings in WindLDR and download the user program to the FC6A
Series MICROSmart.
1. On the Configuration tab, in the Function Area Settings group, click Input Configuration.

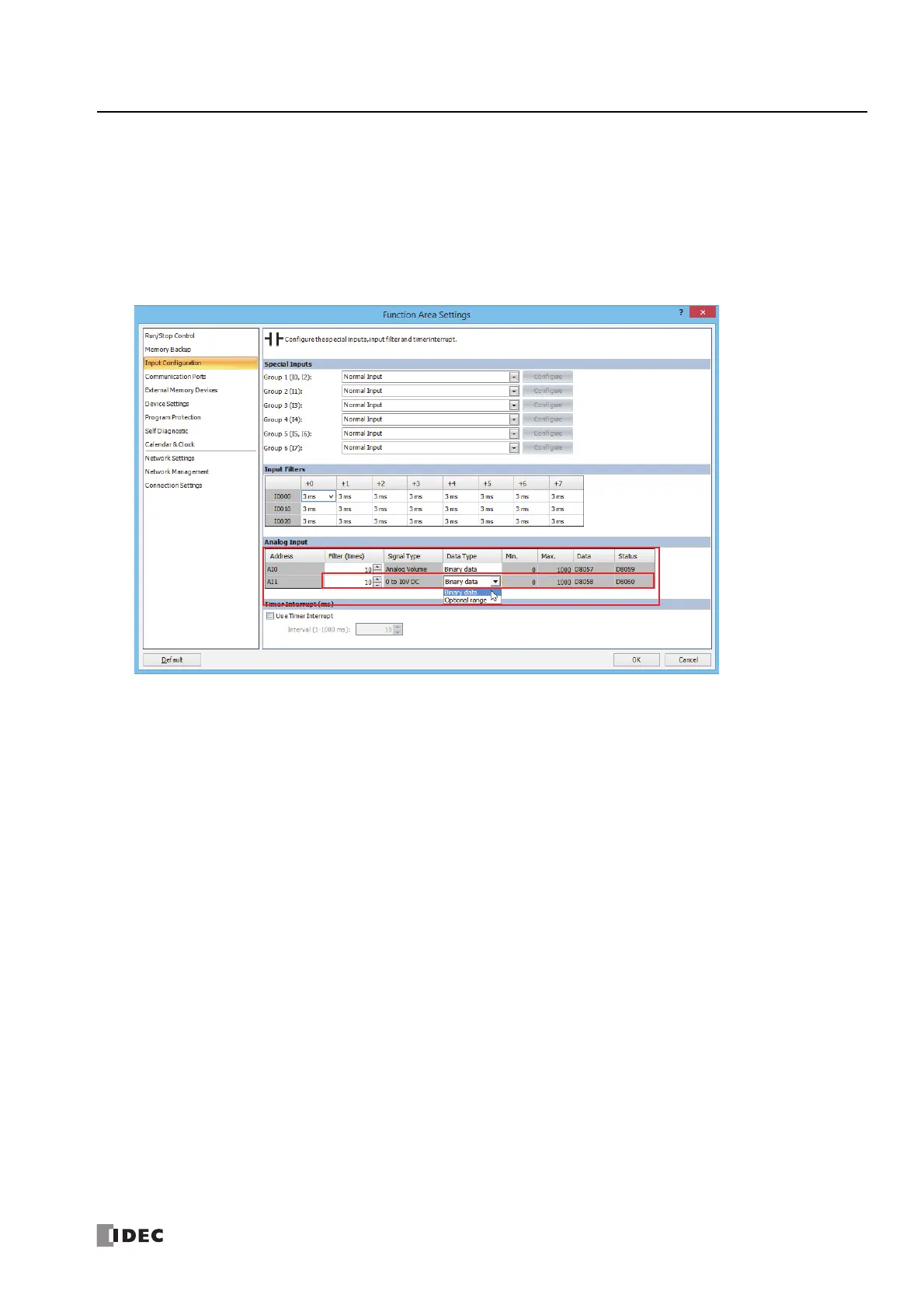

The Function Area Settings dialog box is displayed.
2. For AI1, configure the filter count and data type for the analog input.
The AI1 signal type is fixed as "0 to 10V DC".
3. Click OK.
This concludes configuring the settings.
