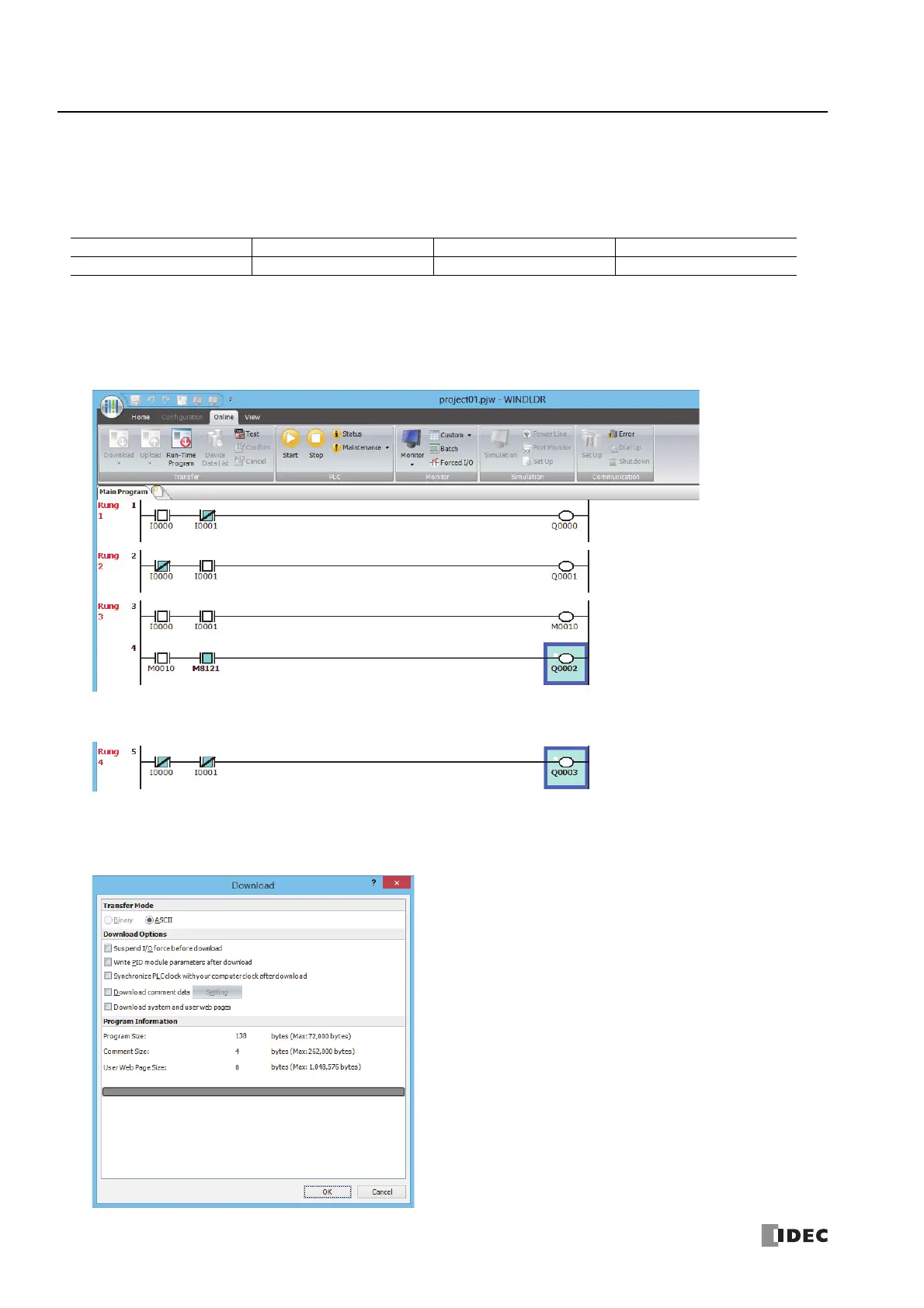

WindLDR Online Edit and test programming operations
Program to create
Add rung 4 with the following specification to the program created in Chapter 4, and after testing operation with the test program,
confirm or cancel the test programming.
When input I0 and input I1 are both off, output Q3 turns on.
Operation procedure
1. Start Online Edit.
After downloading or uploading the user program, when the FC6A Series MICROSmart and WindLDR programs are the same,
on the Online tab, in the Monitor group, click Online Edit under Monitor.
Online Edit mode starts and the operation of the FC6A Series MICROSmart is monitored and the program can be edited.
2. Create a program.
Add rung 4 and insert the instructions according to the specification.
3. Execute the test programing.
On the Online tab, in the Transfer group, click Test.
The Download dialog box is displayed.
The user program is written to the FC6A Series MICROSmart when you click OK.
Rung Number I0 I1 Operation
4 OFF OFF Output Q3 is ON
To Next Page
