This section describes how to use the WindLDR module configuration editor to set the LCD.

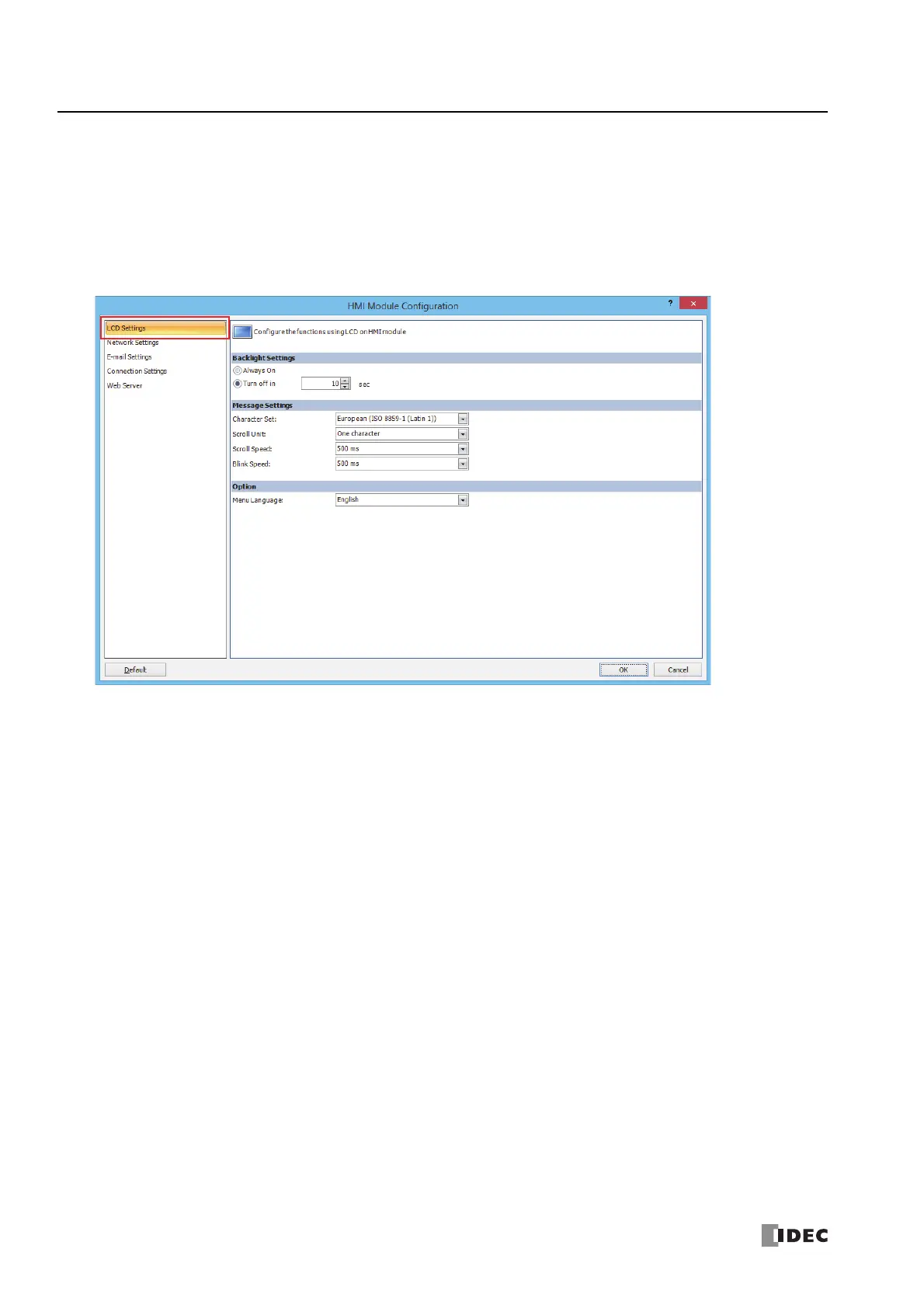

1. From the WindLDR menu bar, select Configuration > Expansion Modules.
2. Click the inserted HMI module in the module configuration area and click Configure.
The HMI Module Configuration dialog box is displayed.
3. Click LCD Settings.
4. Configure the settings in Backlight Settings, Message Settings, and Options.
5. Click OK.
This concludes configuring the settings.
