Configuring the Slave Number
The slave number used in maintenance communication, Modbus RTU communication, and data link slave can be configured.
These settings can be configured when the user program is stopped. This cannot be configured while the user program is running.

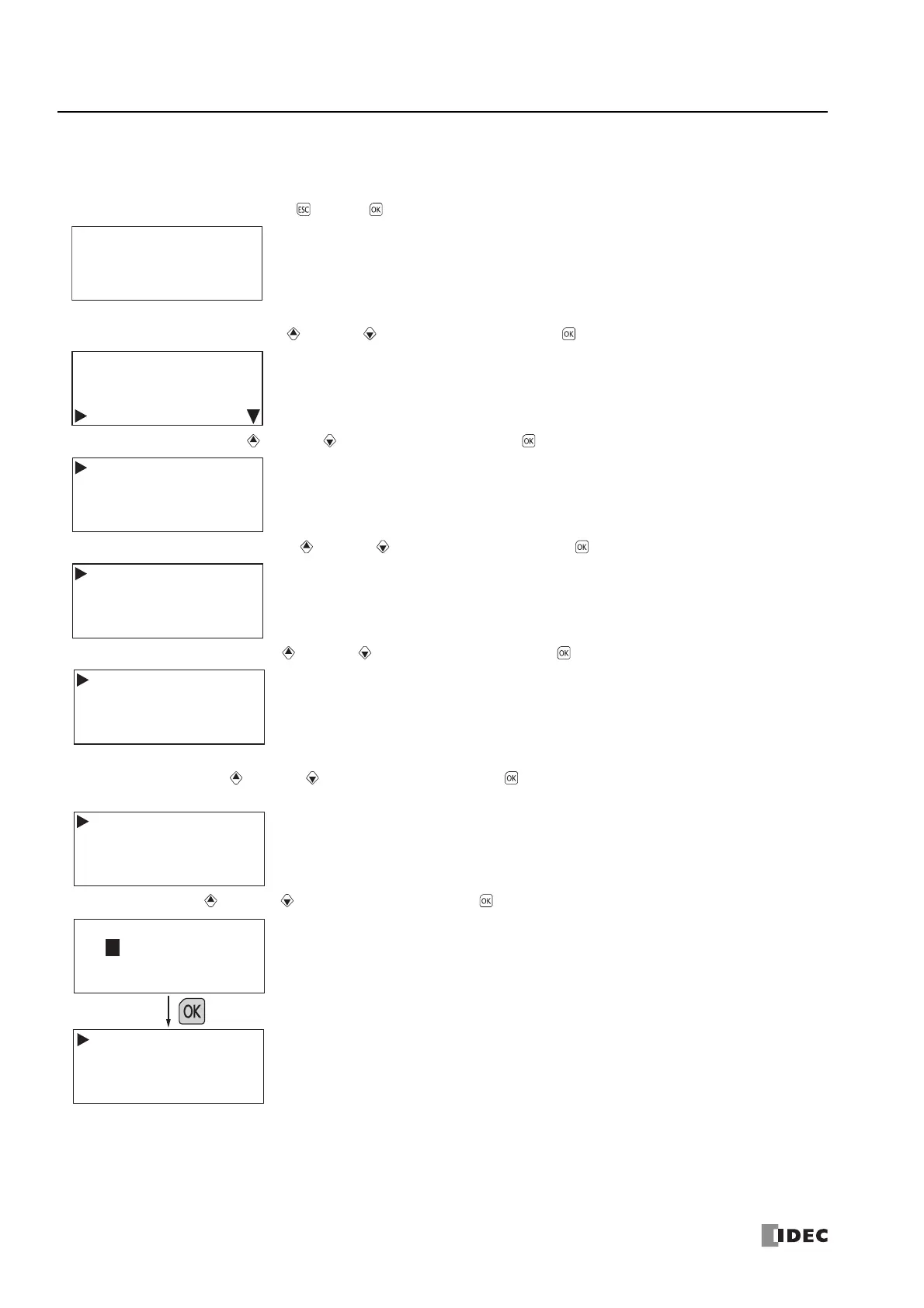

1. On the standard screen, press the (ESC) + (OK) buttons.
The system menu is displayed.
2. Select Configurations with the (up) and (down) buttons and press the (OK) button.
3. Select Function with the (up) and (down) buttons and press the (OK) button.
4. Select Communications with the (up) and (down) buttons and press the (OK) button.
5. Select Slave Number with the (up) and (down) buttons and press the (OK) button.
The port selection screen is displayed.
6. Select Port 2 with the (up) and (down) buttons and press the (OK) button.
For example, change the slave number of the port 2 to 1.
7. Specify 1 with the (up) and (down) buttons and press the (OK) button.
You can set the slave number of port 2 to 1.
 Selectable slave numbers
The slave numbers that can be selected are as follows. (Depending on the communication mode)
 Maintenance communication: 0 to 31
 Modbus RTU slave: 1 to 247
 Data link slave: 1 to 31
Stopped
2015/DEC/01/TUE
13:30:40
Run
Edit Program
External Memory
Configurations
Function
Clock
Menu Languages
Backlight
Communications
Message Settings
Slave Number
CPU Network Settings
HMI Network Settings
Port 2:
0
to confirm
Port 2:
1
Port 2:
1
