11: SD M EMORY C ARD
11-20 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
(7) OK button
Saves the Data Editor content and returns to Recipe Editor.
(8) Cancel button
Discards the Data Editor content and returns to Recipe Editor.

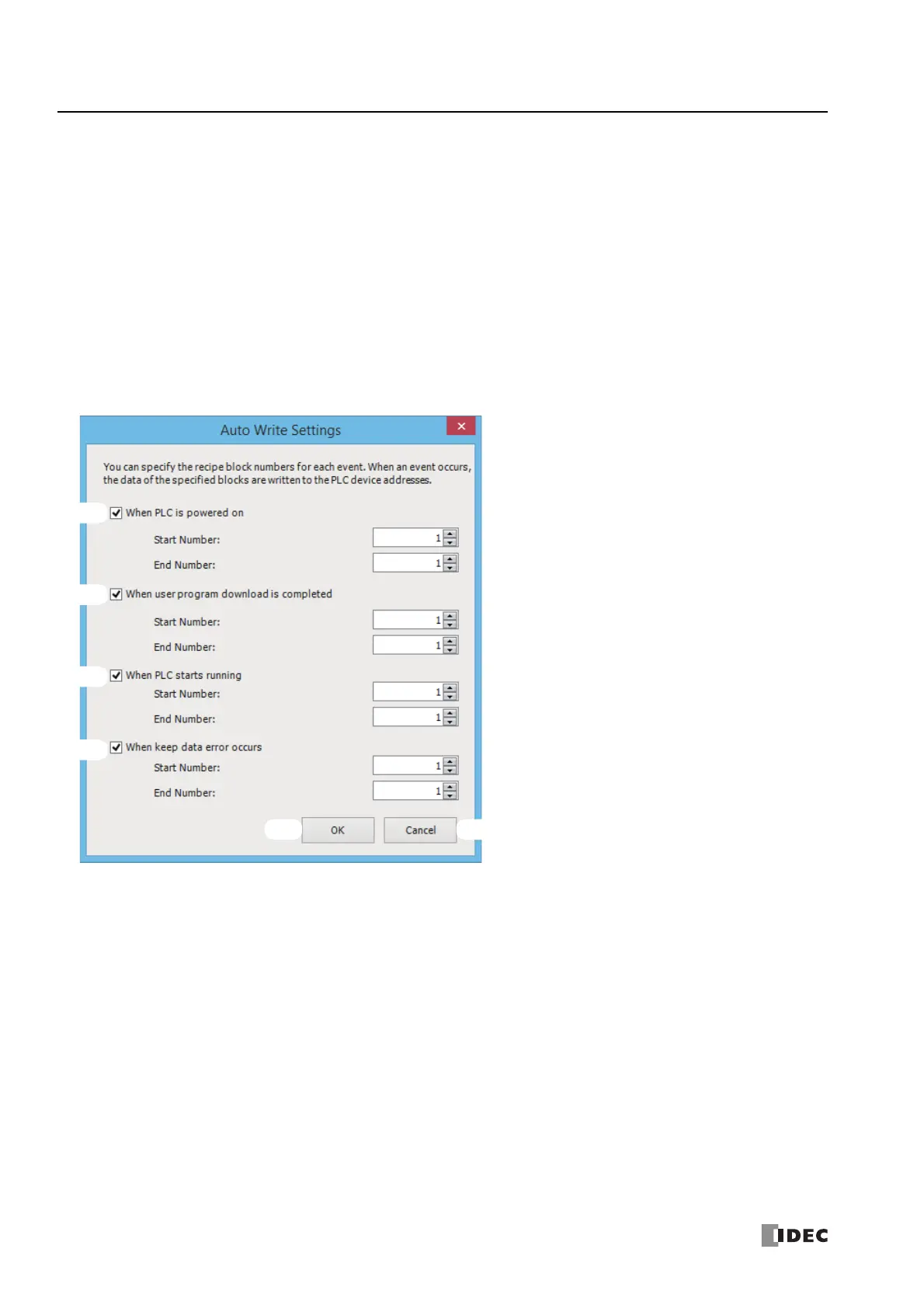

Auto Write Settings Dialog Box
The execution timing and the range of blocks for the auto write function are configured on this dialog box.
The timing to write the recipe values for the block numbers specified for the auto write function can be set by selecting the check
boxes.
A range for the block numbers can be specified with Start Number and End Number. All channels for the specified block
numbers are applicable.
(1) When PLC is powered on
The auto write function is executed when the FC6A Series MICROSmart is turned on.
(2) When user program download is completed
The auto write function is executed when the user program has finished downloading to the FC6A Series MICROSmart.
(3) When PLC starts running
The auto write function is executed when the FC6A Series MICROSmart is set to run.
(4) When keep data error occurs
The auto write function is executed when the keep data error occurs.
(5) OK button
Saves the Auto Write Settings dialog box content and returns to Recipe Editor.
Data : Double-click a cell to enter a recipe value. The value that can be configured varies based on the configured
Data Type and Display Format.
The recipe value cannot be entered when Read Only is selected under Action Setting in Recipe Editor.
The recipe value also cannot be entered when Internal Memory (ROM-Range 1) or Internal Memory
(ROM-Range 2) is selected under Access to in Recipe Editor.
(1)
(2)
(3)
(4)
(5) (6)
