A PPENDIX
A-10 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Upgrade FC6A Series MICROSmart System Software
The system software of FC6A Series MICROSmart can be upgraded using WindLDR. If the system software of your FC6A Series
MICROSmart is old, upgrade the system software with the following procedure:
1. Connect the computer to the FC6A Series MICROSmart USB port, Ethernet port 1, or serial port 1.
For details, see the "FC6A Series MICROSmart Communication Manual".

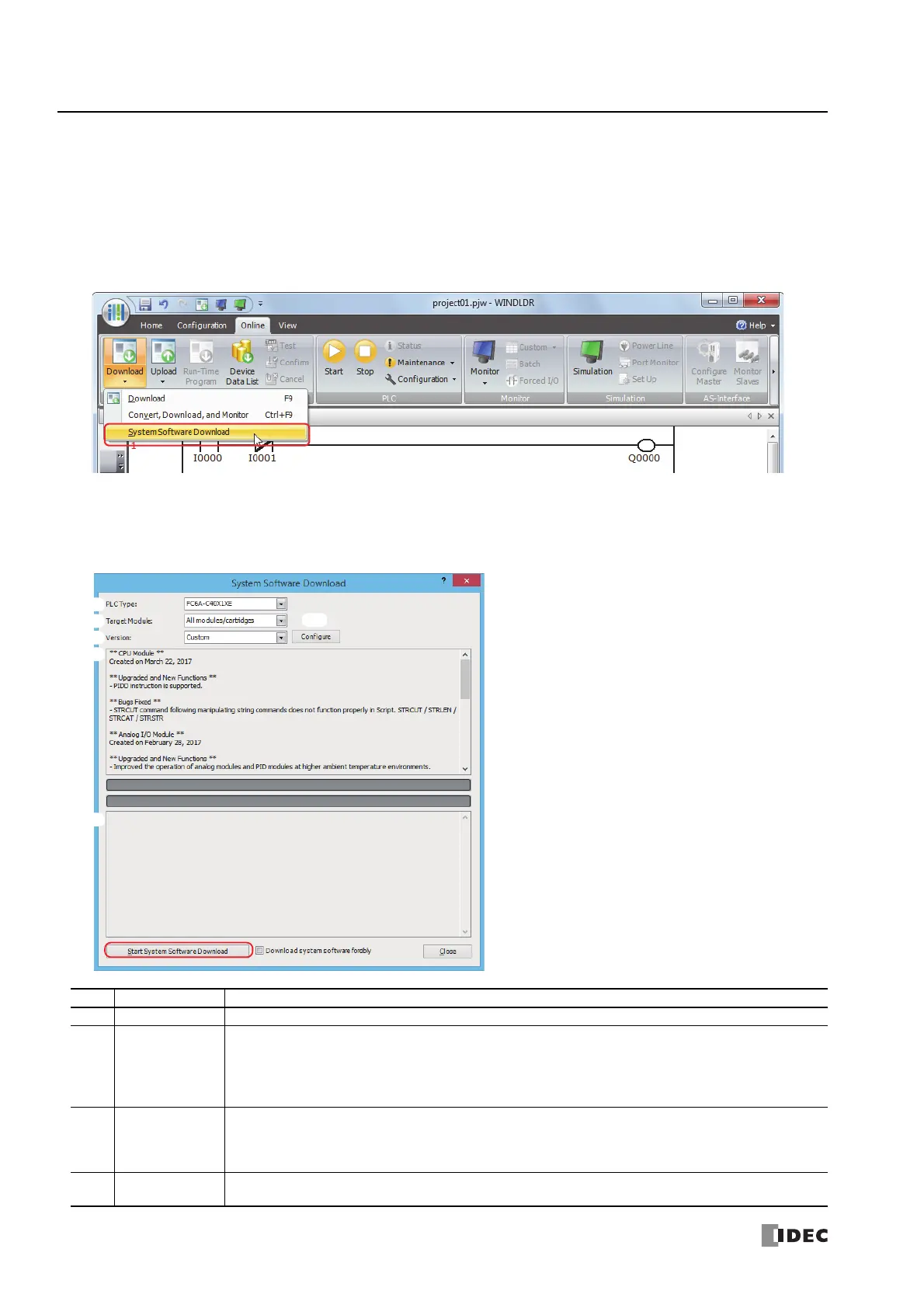

2. From the WindLDR menu bar, select Online > Download > System Software Download.
The System Software Download dialog box appears.
3. Select the PLC type of the CPU module that will perform the download, the target module, and the system software version to
download, and then click Start System Software Download.
No. Item Name Description
(1) PLC Type Select the PLC type of the CPU module.
(2) Target Module
Select the module for downloading the system software from those shown below.
All modules, CPU module, Digital I/O module
*1
, Analog I/O module, PID module, HMI module,
Communication module, Expansion interface remote master module, Expansion interface remote
slave module, Bluetooth communication cartridge.
All modules is selected by default.
(3) Version
Select the system software version.
If you have selected All modules for Target Module, select from Update all and Custom.
If you have selected a value other than All modules for Target Module, select the version to download to the
selected module.
(4) Revision history
The revision history related to the system software of the CPU module selected in the System Software Version
Selection dialog box is displayed here.
(1)
(2)
(3)
(4)
(6)
(5)
