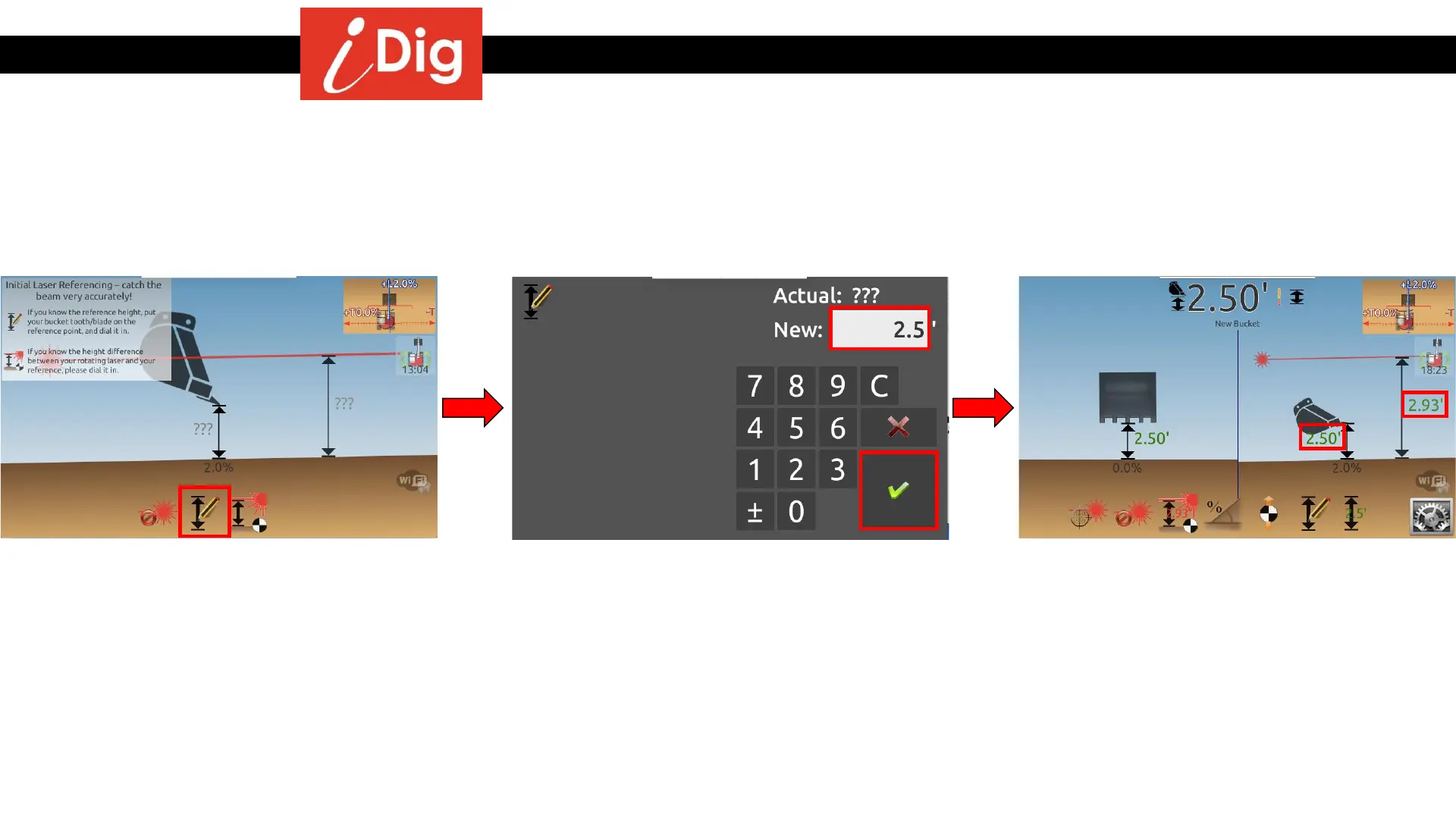

• The bucket height is shown (2.5’) and the
result of the laser catch (2.93’) is shown
Digging a trench with 2% slope using a rotating laser
110
Method 1: Not knowing the Laser Height
• Click on “Bucket Height”.
• Place the bucket tip/edge on the reference
point and enter 2.5’.
• Click on the green check mark to validate
and then catch the laser beam.
To Next Page
