iDig 2D Touch - Tilt Bucket Calibration Procedures

Installation Procedures – Engcon Rotative Coupler Calibration
Setup Rotative Coupler
66

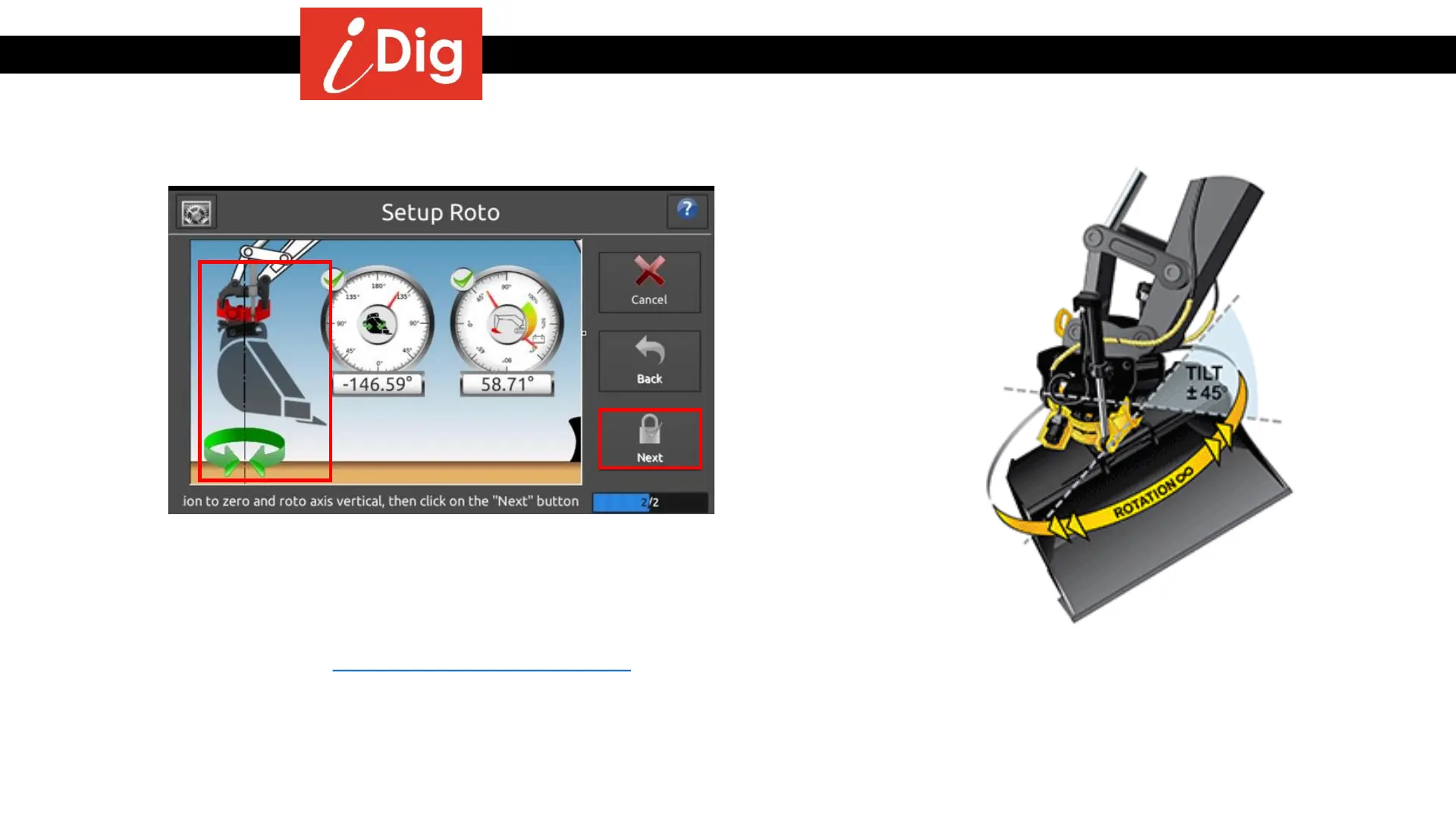

• Set the bucket rotation to zero and the rotative coupler
axis vertical.
• Click on “Next”.
• The rotative coupler calibration is done, but not the tilt
calibration!
• Refer to the “Tilt Bucket Calibration Procedures”
detailed earlier in this manual.
