iDig 2D Touch - Specialized Equipment Calibration

Installation Procedures – Tilt Bucket Calibration
Install the Sensors

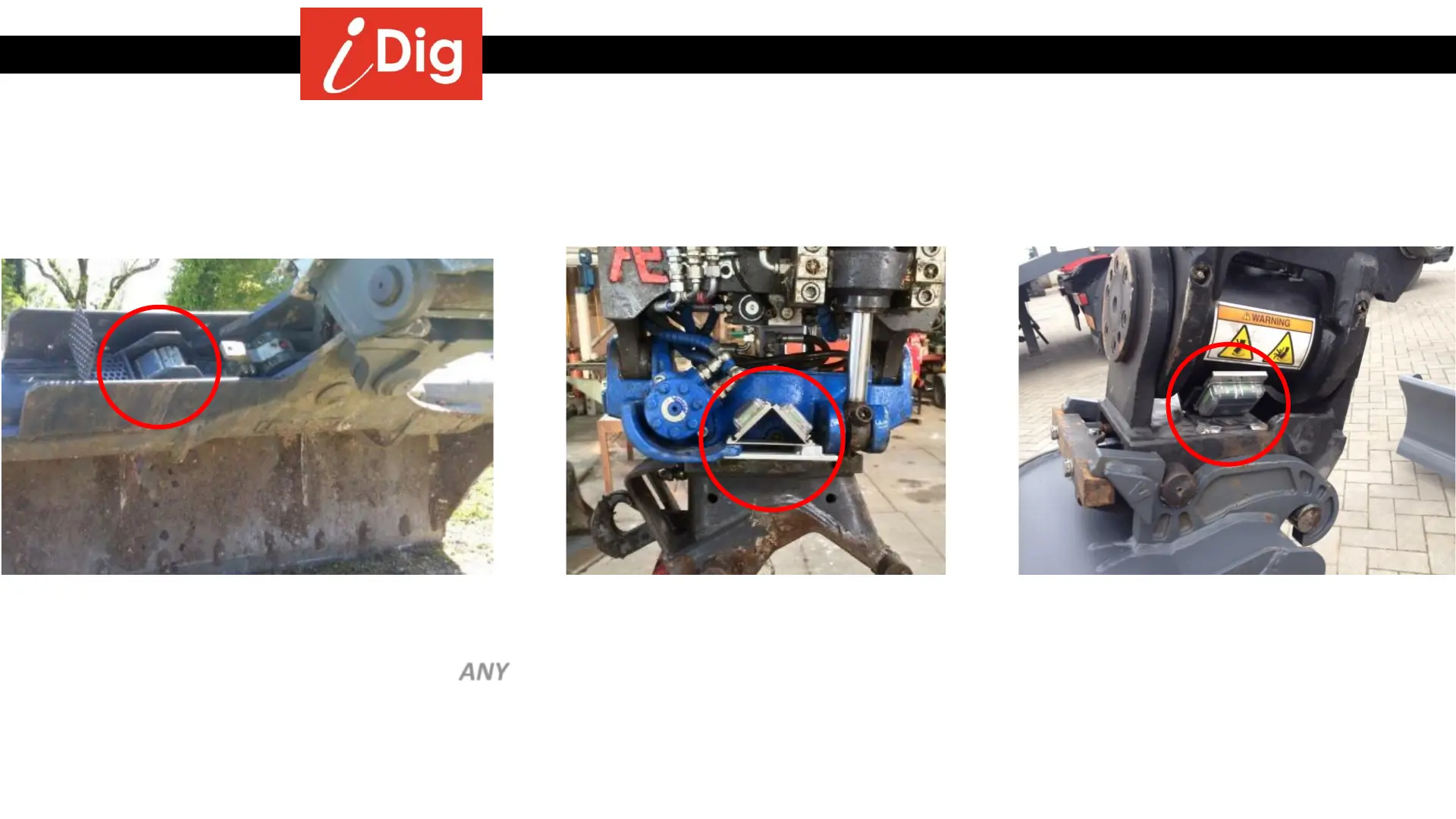

• Install the Triangle Holder on the lower part of the tilt axis as shown on these pictures:
39
On a tilt bucket
On a quick link tilt device
On a compact quick link tilt device
• The Triangle Holder may be setup in ANY position and orientation!
