Installation Procedures – Tilt Bucket Calibration
Install the Sensors
• If there is no space available to setup the Triangle Holder, it is possible to
install the 2 Mini Sensors without it. It is mandatory to proceed by the
following 4 rules:
• #4 – Tilt A should not be mixed-up with Tilt B. The following rules shall be
applied to install the Sensors:

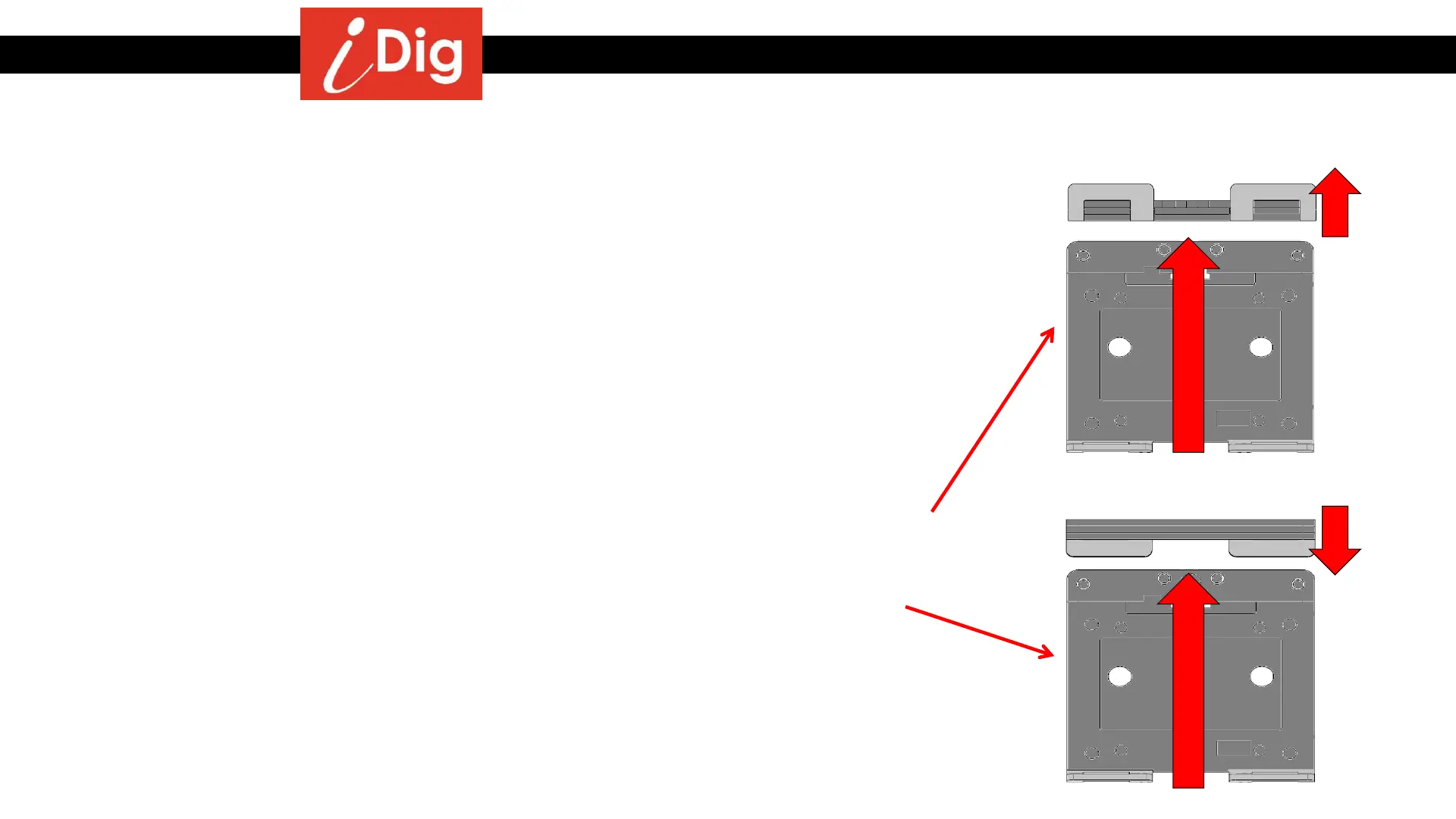

• Choose one of the two plates and imagine an arrow from the “ears”
and going towards the blade spring
• On the second plate, imagine an arrow from the back of the plate to
the top of the plate.
➢ If the two arrows are in the same direction, then that plate is for Tilt
B.
➢ If the two arrows are opposite to each other, then that plate is for
Tilt A.
43
a)
b)
b)
a)
