Installation Procedures – Auger Calibration
Calibration on a New Machine
• Quick coupler
59

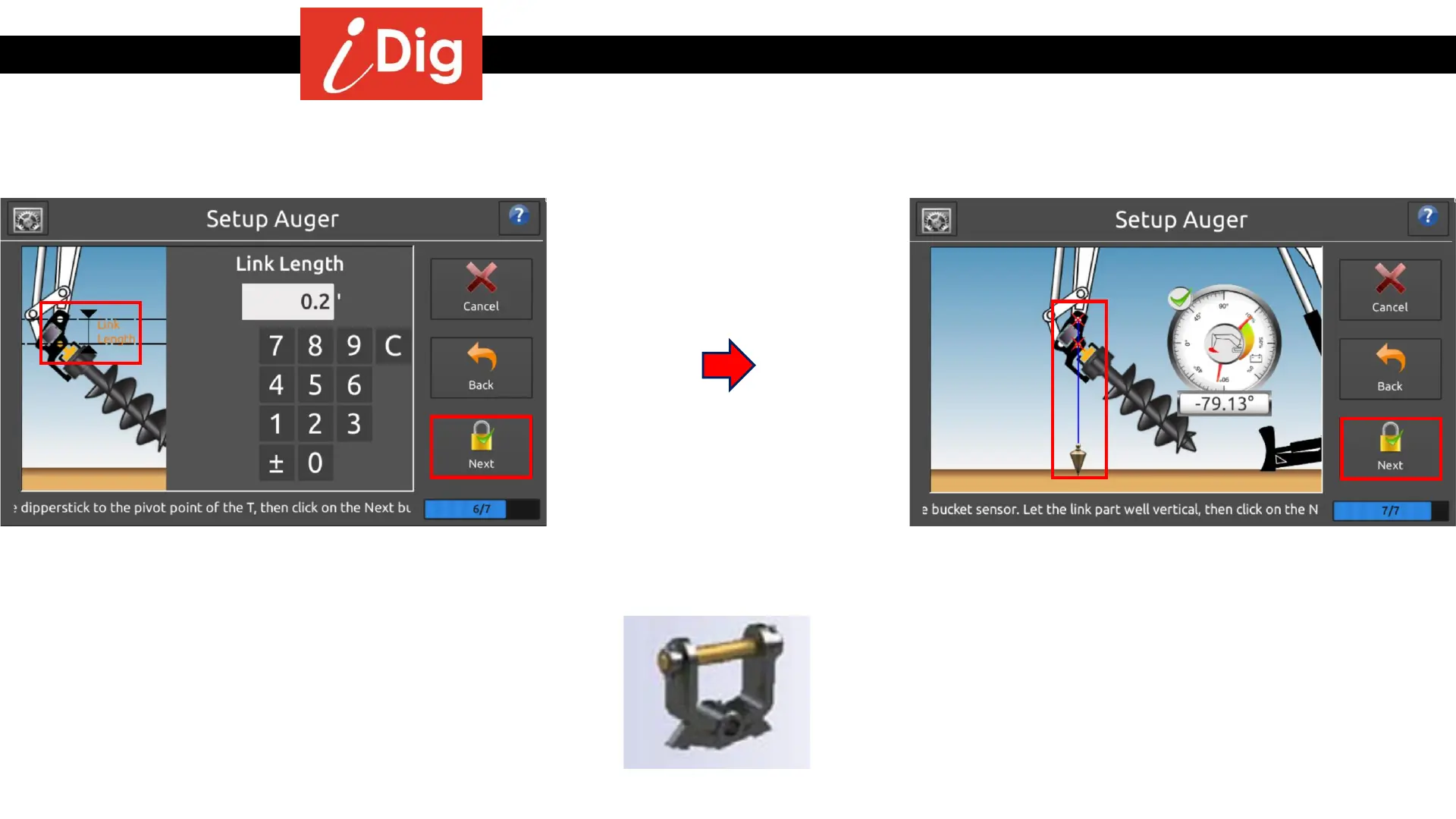

• Measure and enter the distance between the swing
pivot/quick link and the front/rear pivot of the auger.
• Click on “Next”.
• Align the swing pivot/quick ling and the front/rear
pivot on a vertical axis.
• Click on “Next”.
• For “floating” augers as shown here the
distance to be entered is zero (0).
