Installation Procedures – Mainboom Offset Calibration
76

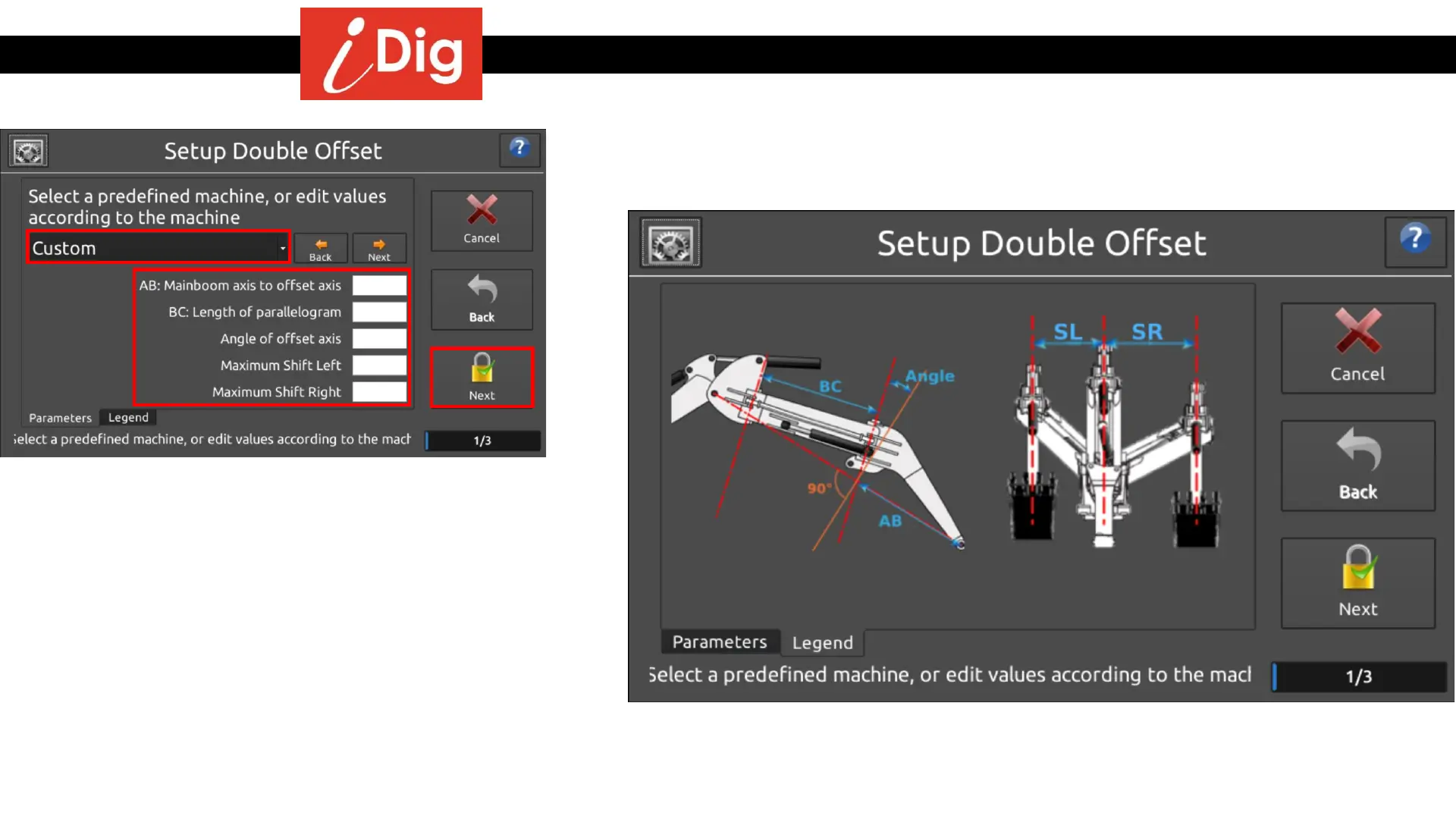

• Select your machine from the drop down menu. If your
machine isn’t listed then take the following
measurements and input the data:
• AB
• BC
• Angle of offset axis
• Maximum shift left
• Maximum shift right
• Click on “Next”.
