Digging to an elevation using a rotating laser
92

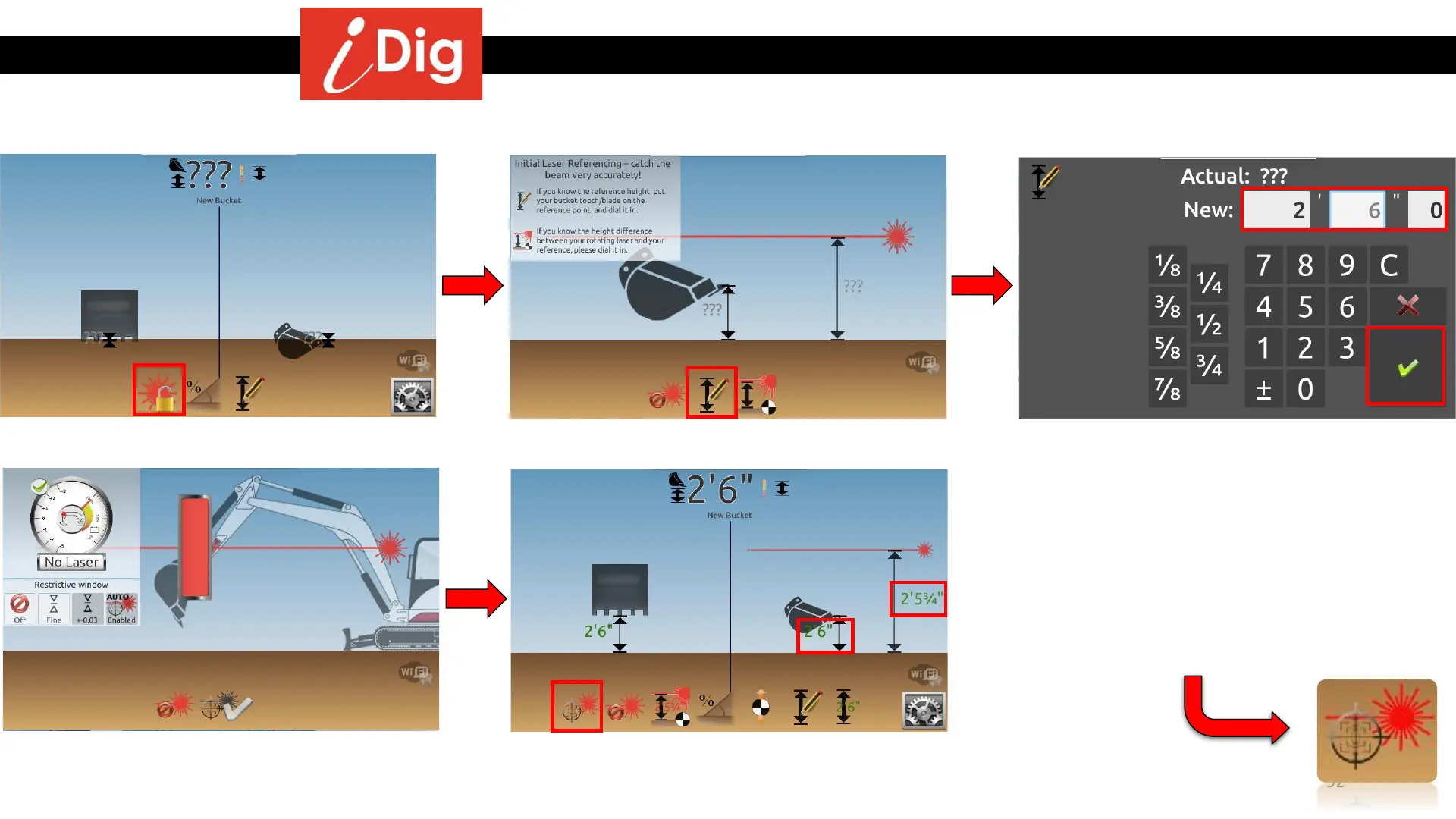

Method 1: Not knowing the Laser Height
• Click on “Activate the 1
st
laser catch”.
• Click on “Bucket Height”.
• Place the bucket tip/edge on the reference
point and enter your positive depth to cut,
+ 2’6” in this example.
• Click on the green check mark to validate.
• Catch the laser beam.
• The bucket height is shown 2’6”.
• The result of the laser catch shows the
laser height, in this example to be 2’5 3/4”.
• Each time the machine gets moved on the
job site, click on this button at the new
location prior to continue digging to catch
the laser beam.
