Step 1. Connect the SMART-31 printer to PC and turn it on, and prepare the exclusive long

cleaning card.

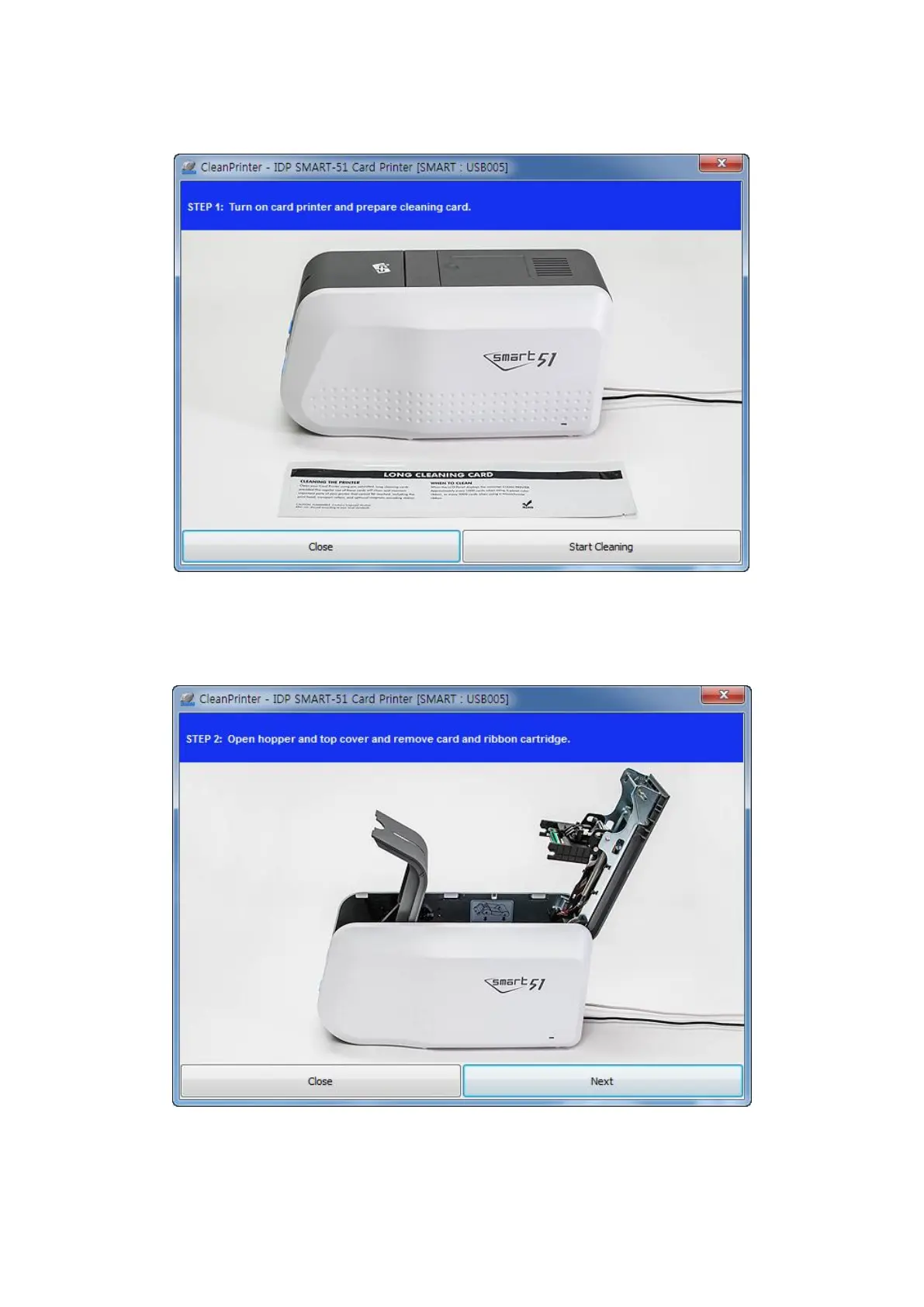

Figure 95 Printer cleaning Step 1

Step 2. Open the hopper and top cover and remove the card and ribbon cartridge.

Figure 96 Printer cleaning Step 2
