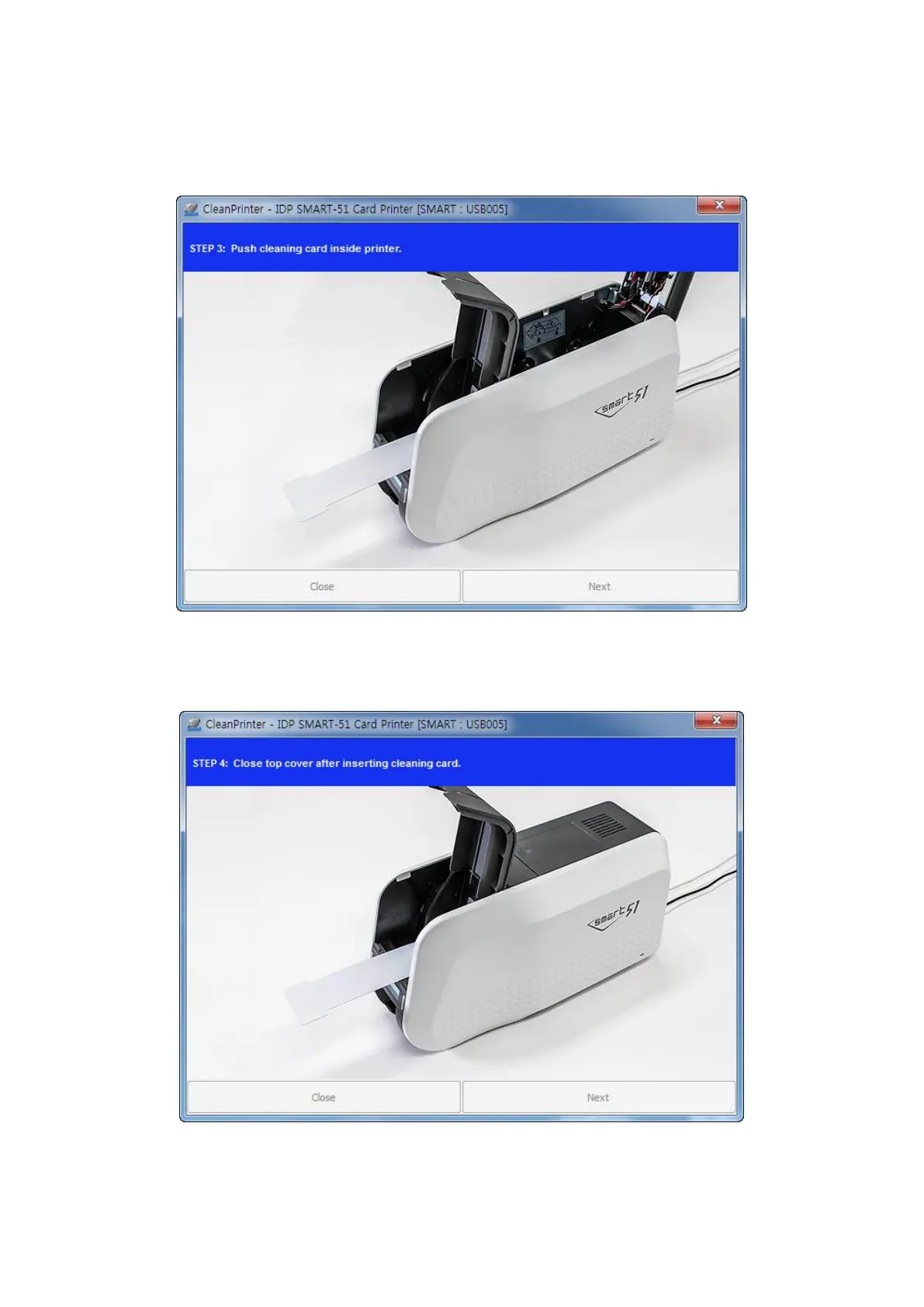

Step 3. Insert the exclusive long cleaning card into the printer through input hopper. When the

exclusive long cleaning card is inserted to the cleaning roller, it will be move

automatically. It is normal that the exclusive long cleaning card is inserted to the ends

and rollers are moving to clean.

Figure 97 Printer cleaning Step 3

Step 4. Close the top cover to clean the Thermal Print Head and the printing roller. When the

top cover is closed, cleaning card will be moving back and forth to clean.

Figure 98 Printer cleaning Step 4
