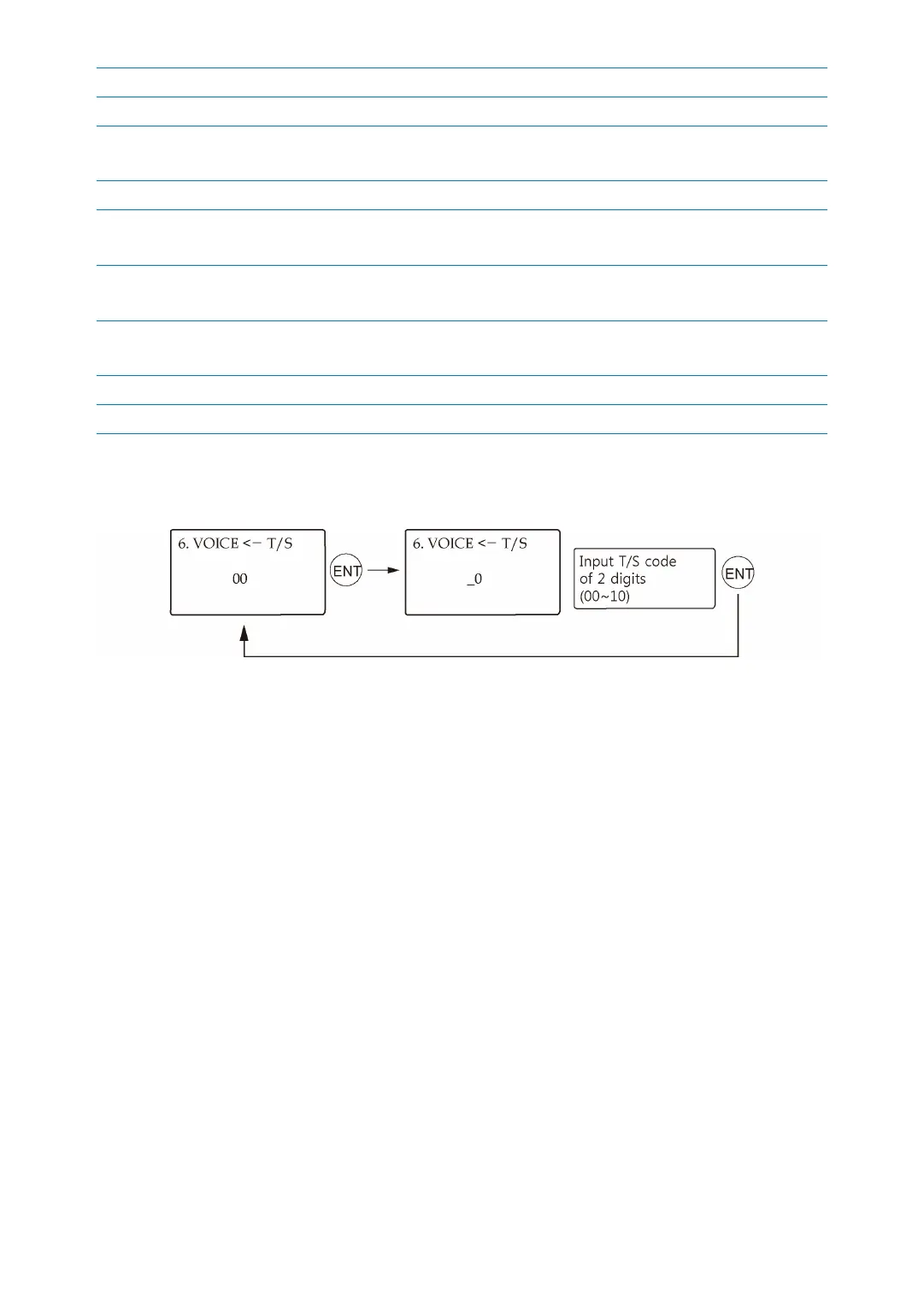

Setting Changesp.60
[6] CUT OFF ALARM 00 00 00 00 00
[7] DURESS ALARM 00 00 00 00 00
[8] ARM/DISARM OU
T
00 00 00 00 00
[9] DOOR TIME OUT 00 99 00 00 00
[10] OUTPUT TIME S
CHEDULE
00 00 00 00 00
INPUT Exit Button
(EX)
Door Contact Sen
sor (DC)
Aux Input #
1 (I1)
Aux Input #
2 (I2)
Tamper Switc
h (TP)
[11] INPUT TIME SCH
EDULE
00 00 00 00 00
[12] CUT OFF CHECK 00 00 00 00 00
[13] INPUT TYPE 00 00 00 00 00
5.1 Exit Button Output Setting
You can program the Output Activation Time, the length of time for which the output is acti
vated after the EXIT button is pressed.
Let’s say, we put ‘03’ for one of the fields, If the unit of time is set to ‘1 sec’, then the activati
on time will be 3 seconds. If the unit of time is set to ‘0.1 sec’, then the activation time will b
e 0.3 seconds (or 300 ms.)
You can set the time somewhere between 00 and 98 seconds (or between 0.0 and 9.8 seco
nds if the Time Unit is set to 0.1 sec.) If you enter “99”, the corresponding output will be acti
vated forever until you reset the output.
DR
Door Relay Output
AR
Alarm Relay Output
T1
TTL#1 Output
