p.63F5 SETUP MENU
I2
Aux Input#2 T/S Code
TP
Tamper Switch Input T/S Code

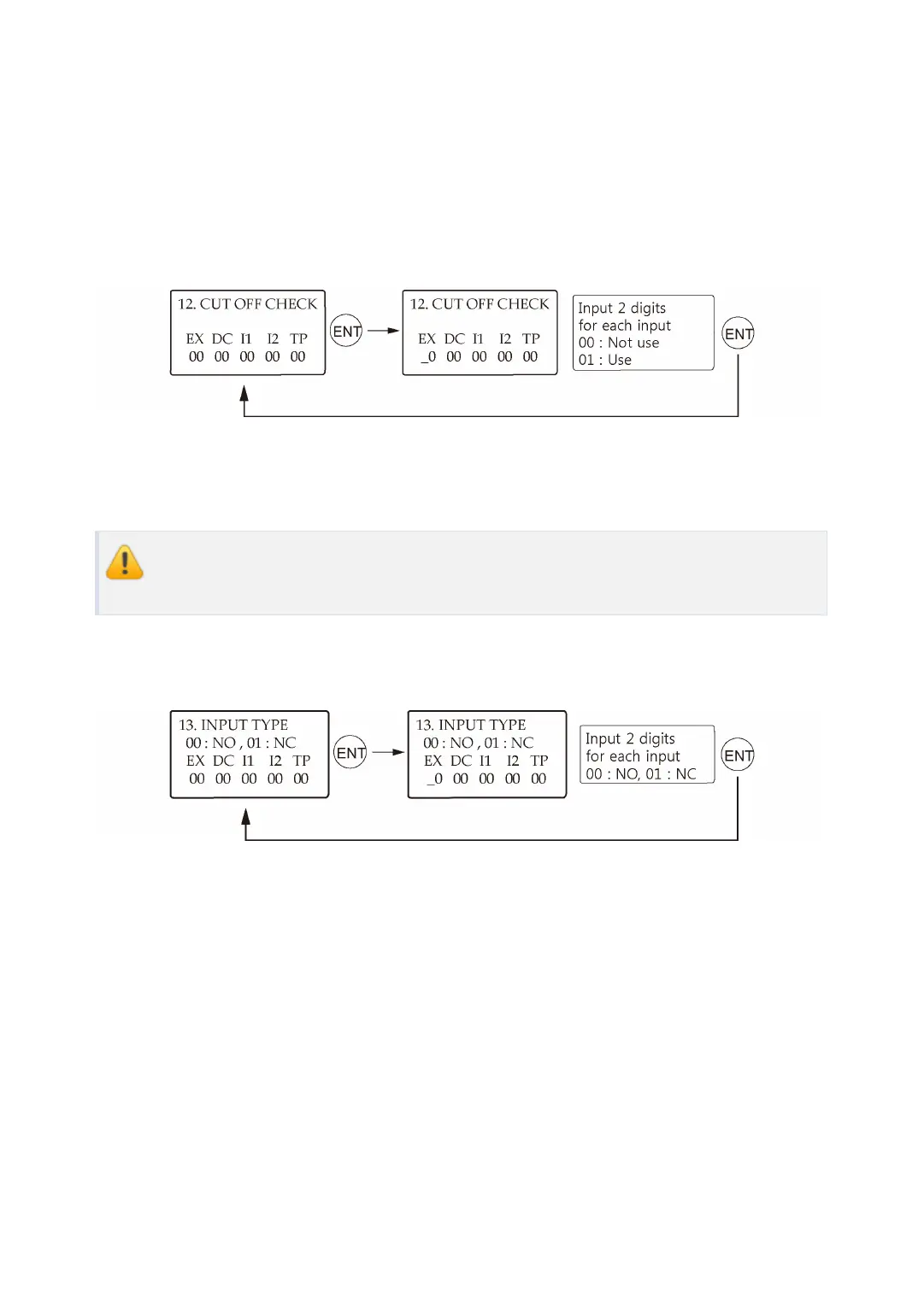

5.12 Cut Off Check Setting
You can choose whether or not to check the connection cutoff of each input port. ‘00’ mea
ns not using this feature and ‘01’ means using it.
Before applying this feature, a 2.2K resistor should be connected between the inp
ut wire and the GND.
5.13 Input Type Setting
You can program each input for either NO(Normally Open) or NC(Normally Close) operation.
‘00’ means NO while ‘01’ means NC. The default setting is 00(NO).
