p.65F6 SETUP MENU
[6] Reader#1 T/S Error 00 03 00 00 00
[7] Reader#1 APB Error 00 03 00 00 00
[8] Reader#2 ID OK LV1 03 00 00 00 00
[9] Reader#2 ID OK LV2 05 00 00 00 00
[10] Reader#2 ID OK LV3 05 00 00 00 00
[11] Reader#2 ID OK LV4 05 00 00 00 00
[12] Reader#2 ID Error 00 03 00 00 00
[13] Reader#2 T/S Error 00 03 00 00 00
[14] Reader#2 APB Error 00 03 00 00 00

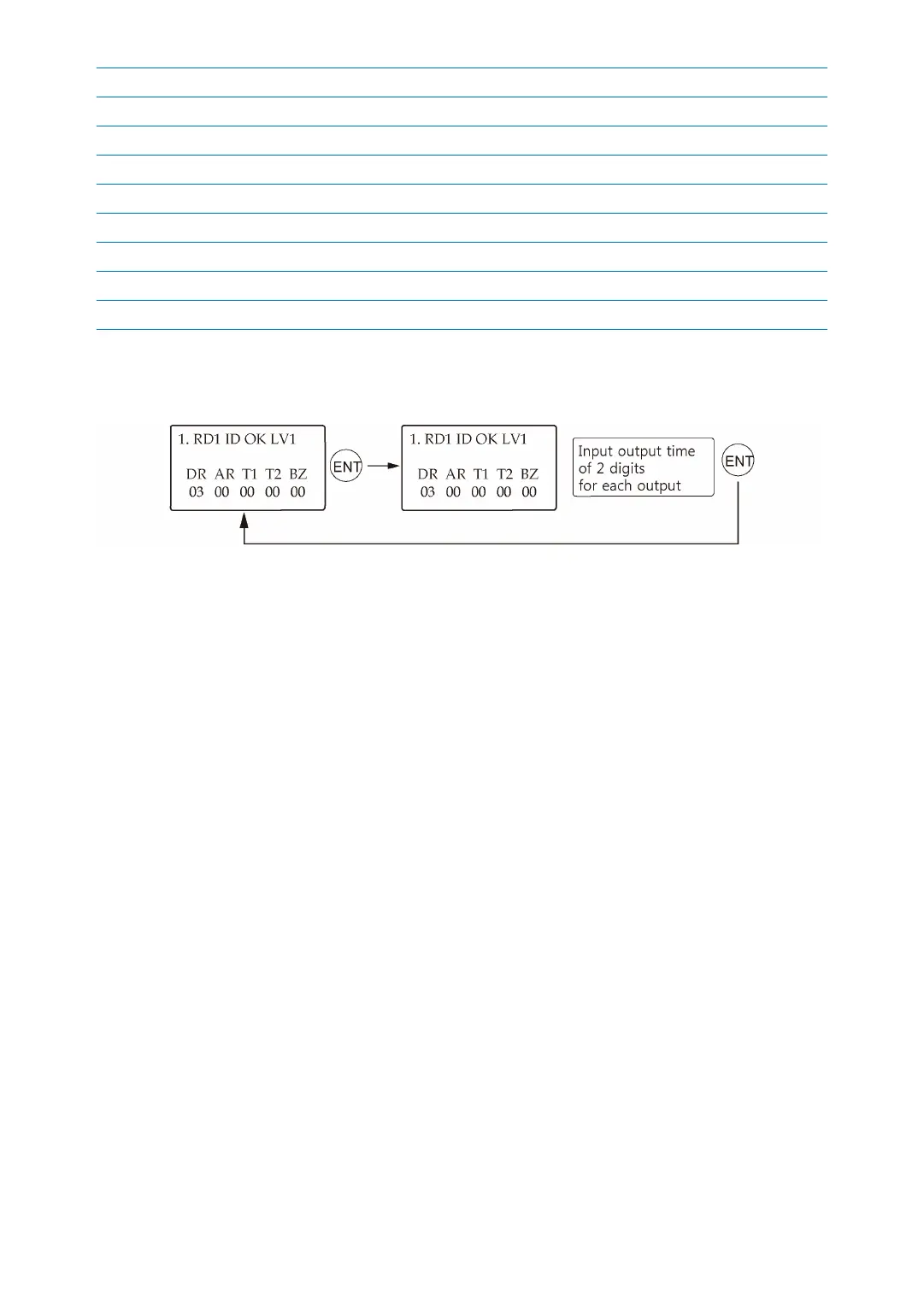

6.1 Output Setting for Reader#1 ID OK Level 1
You can program the Output Activation Time, the length of time during which the output is
activated after the EXIT button is pressed. The actual Output Activation Time equals either V
seconds, provided that the Time Unit is set to 1 second, or V/10 seconds, provided that the
Time Unit is set to 0.1 second. (V=Activation Time Value assigned for each output.)
You can set the time somewhere between 00 and 98 seconds (between 0.0 and 9.8 second
s if the Time Unit is set to 0.1 sec.) If you enter “99”, the corresponding output will be activat
ed forever until you reset the Output.
DR
Door Relay Output
AR
Alarm Relay Output
T1
TTL#1 Output
T2
TTL#2 Output
BZ
Buzzer Output
To Next Page
