IEI MiniMax 3 Installation/Programming Manual Section 2: Installation
2.14 Installing a Tamper Switch
IEI recommends you install a tamper switch. The tamper switch must be mounted inside the locked cabinet and must activate if the
cabinet door is opened. The tamper switch must be wired to an alarm panel or other device that sounds an alarm and/or prevents
anyone from gaining access through the protected door.
IEI recommends using a Sentrol 3012 tamper switch (not provided).
To use this tamper switch, simply clip the switch on the side of the cabinet on the interior, then wire the leads to your alarm device
using the appropriate cable. See diagram below.
Document #: 6055672, Rev 1.0 D1c Page 25 of 48

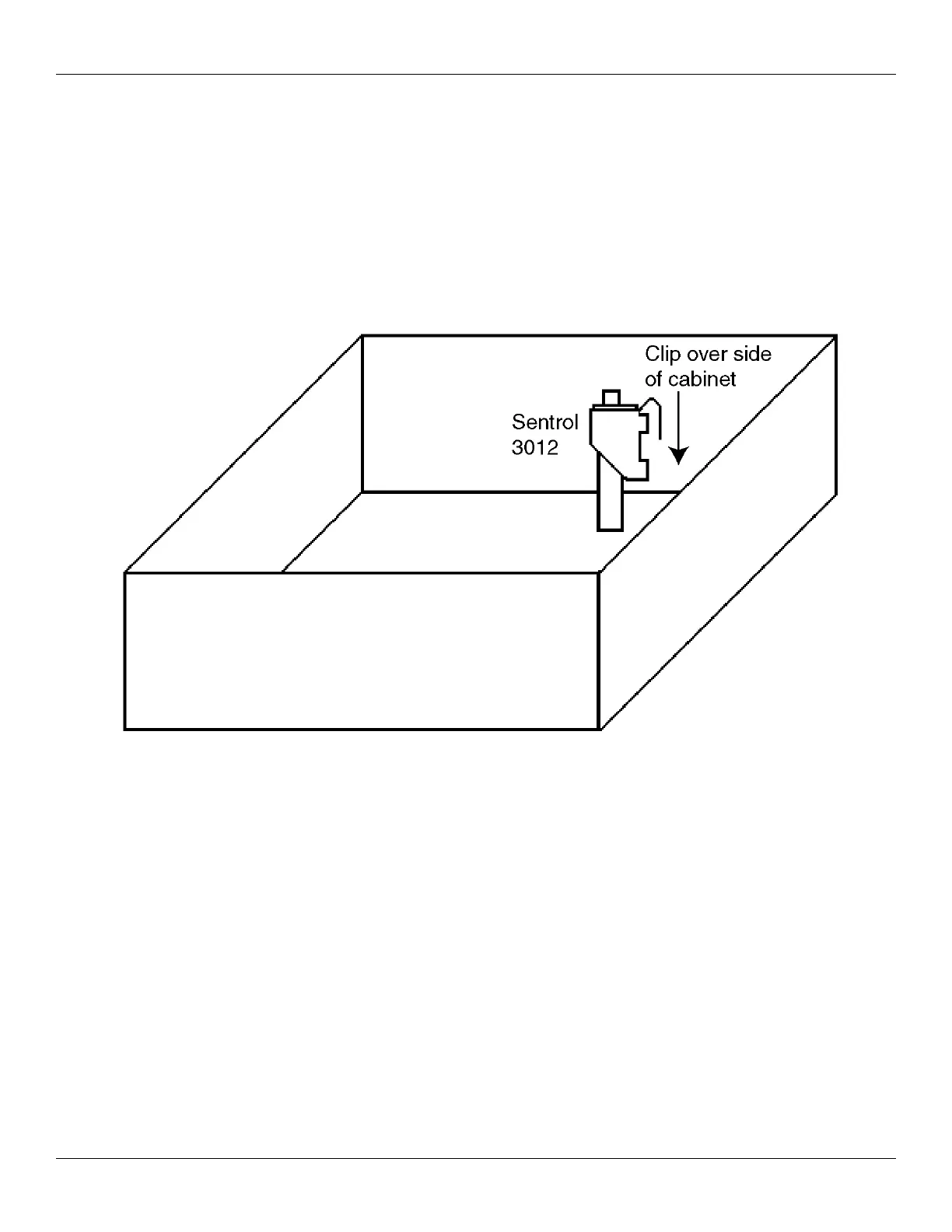

Figure 19: Installing a Tamper Switch
