Section 3: Programming IEI MiniMax 3 Installation/Programming Manual
Section 3: Programming
This section contains the details of programming the Max 3 Door Control Module using the detachable keypad. If you are using the
PC software, this section may not apply, but you may find it useful to familiarize yourself with the various features available in the
Max 3. To see a complete list of programming commands refer to the programming options chart at the end of this section.
3.1 Programming Methods
There are two ways you can program the Max 3 Door Control Module. You can either program it using the detachable keypad or you
can program it using the PC software. Using the PC software gives you access to many more features than you would have
programming through the keypad only. This manual covers only programming through the keypad, although it does refer to features
that require the PC software to use to it's fullest extent.

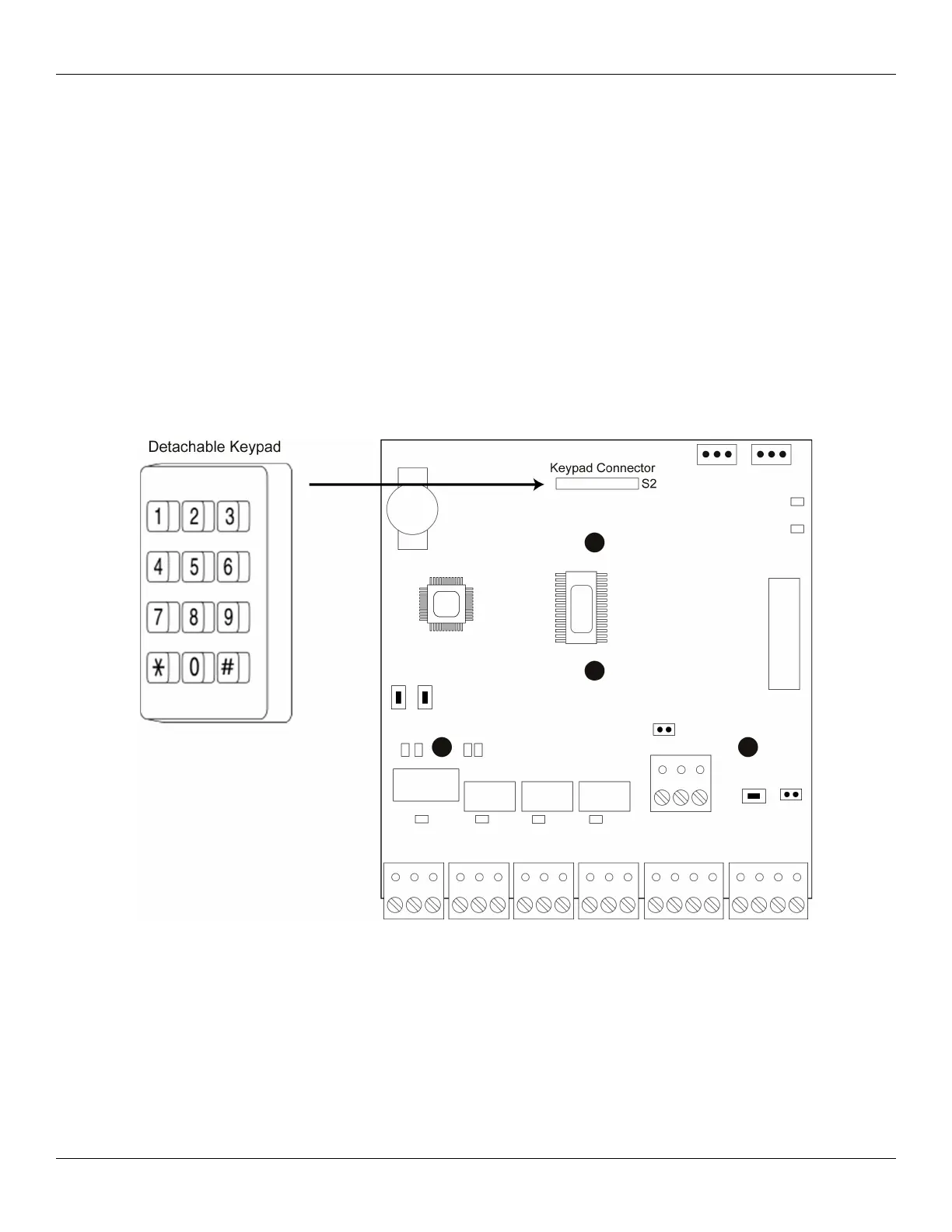

The diagram below shows how to connect the detachable keypad to the Door Control Module. The keypad comes pre-installed on the
first module, but to program additional modules you must remove it and connect to the module you are programming.
Page 28 of 48 Document #: 6055672, Rev 1.0 D1c
Figure 21: Plug on Detachable Keypad
