7
UK
5 Installation
5.1 Installation conditions
► Install the unit so that the object to be detected is within a measuring range of
0�3���10 m�
The unambiguity range of the sensor is fixed to 100 m� Objects within a range
> 6…100 m are suppressed�
Reflecting objects in the direct beam path of the sensor - also in the range
> 100 m – are to be avoided by the customer� Otherwise the measured
values may be ambiguous�
5.2 Mounting accessories
The unit is supplied without mounting accessories�
Examples of mounting accessories Art. no.
Protective cover O1D E21133
Mounting set E2D101 + E20938 + E20951 E21079
Mounting set O1D (for rod mounting Ø 12 mm) E2D101
Mounting rod straight Ø 12 mm / M10 E20938
Mounting set O1D (for rod mounting Ø 14 mm) E2D111
Mounting rod straight Ø 14 mm / M12 E20939
Fixture for mounting and fine adjustment of O1D laser units
(rod or free-standing; depending on the clamp)
E1D100
1
2

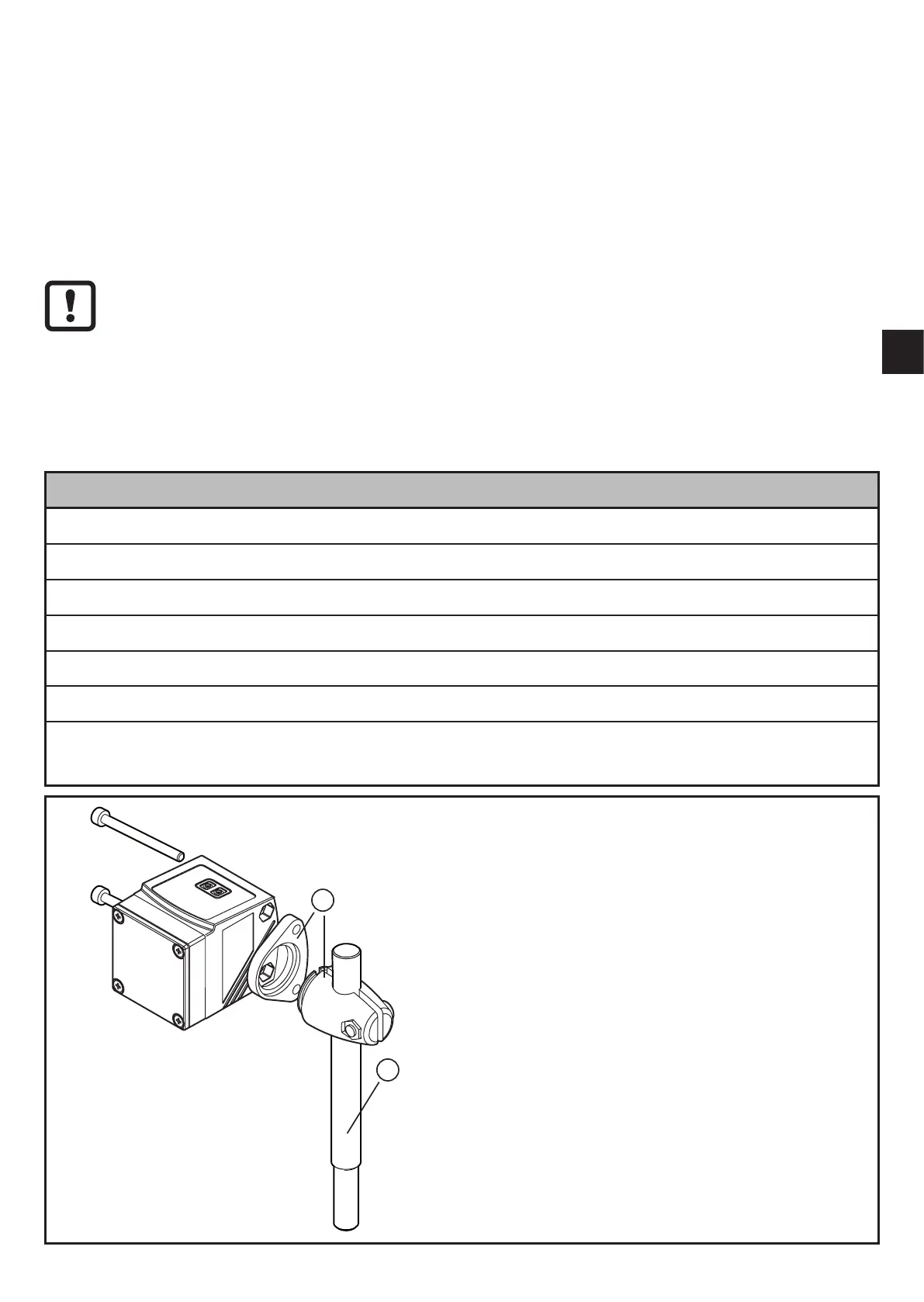

Example mounting:
1: Mounting set for Ø 12 mm rod
art� no� E2D101
2: Mounting rod straight Ø 12 mm / M10
art� no� E20938
