10.4.6 Configure counter reset using an external signal

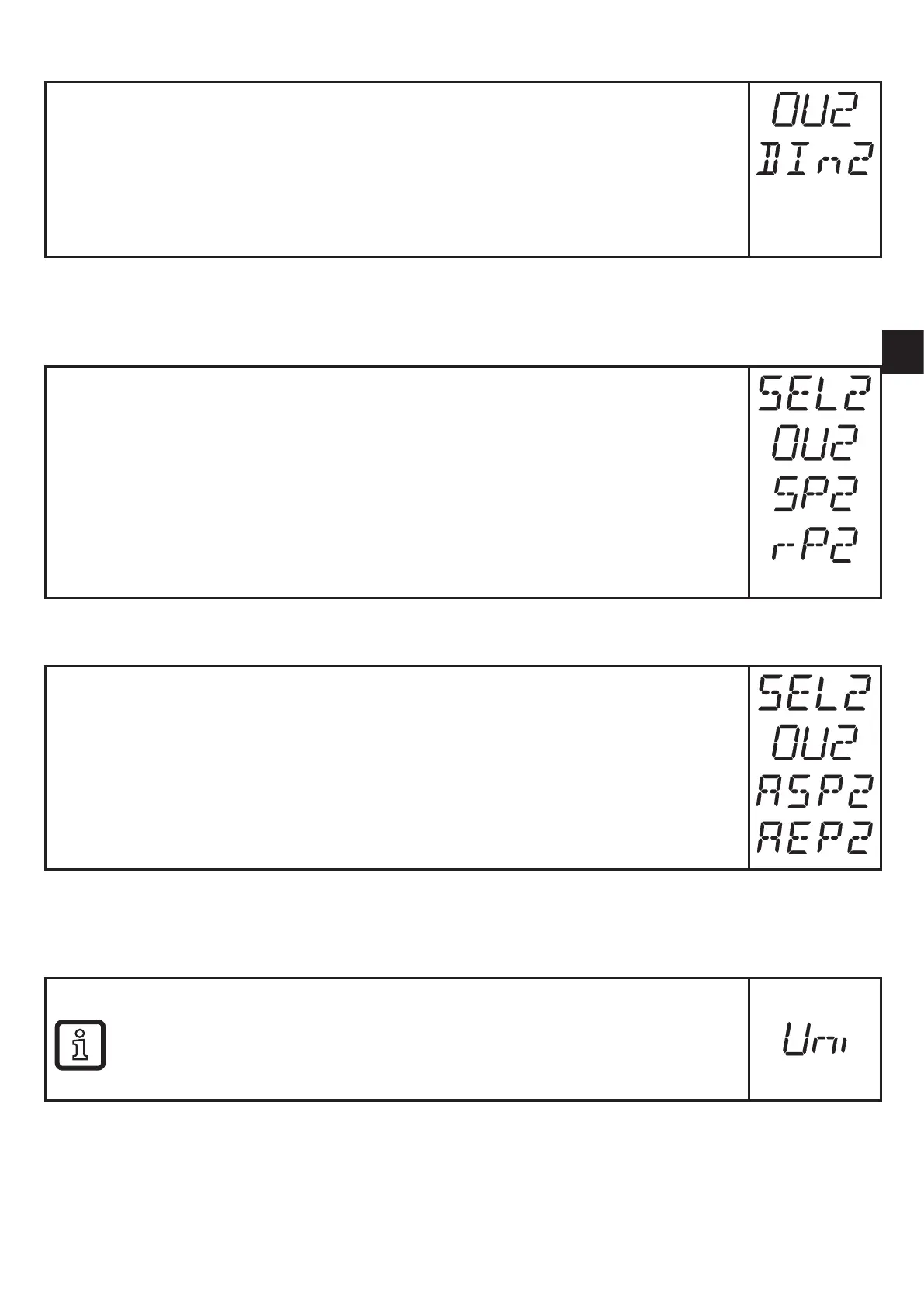

► Select [OU2] and set [InD]�
► Select [Din2] and set the reset signal:
- [HIGH] = reset for high signal,
- [LOW] = reset for low signal,
- [+EDG] = reset for rising edge,
- [-EDG] = reset for falling edge�
10.5 Settings for temperature monitoring
10.5.1 Settings for limit value monitoring with OUT2
► Select [SEL2] and set [TEMP]�
► Select [OU2] and set the switching function�
- [Hno] = hysteresis function/NO,
- [Hnc] = hysteresis function/NC,
- [Fno] = window function/NO,
- [Fnc] = window function/NC�
► Select [SP2] and set the value at which the output switches�
► Select [rP2] and set the value at which the output switches off�
10.5.2 Setting the analogue value for temperature
► Select [SEL2] and set [TEMP]�
► Select [OU2] and set the function:
- [I] = temperature-proportional current signal (4…20 mA);
- [U] = temperature-proportional voltage signal (0…10 V)�
► Select [ASP2] and set the value at which the minimum value is provided�
► Select [AEP2] and set the value at which the maximum value is pro-
vided�
10.6 User settings (optional)
10.6.1 Setting of the standard unit of measurement for volumetric flow
► Select [Uni] and set the unit of measurement: [Lmin] or [m3h]�
The setting only has an effect on the volumetric flow value� The
counter values (consumed quantity) are automatically displayed in
the unit of measurement providing the highest accuracy�
