11 Operation
11.1 Reading the process value
The LEDs 1-6 signal which process value is currently displayed�The process value
to be displayed as standard (temperature, flow velocity or meter reading of the
totaliser)canbepreset→10.6.2Configurationofthestandarddisplay.Astandard
unit of measurement can be defined for the flow velocity (l/min or m
3
/h→10.6.1).
Further process values can be read in addition to the preset standard display:
► Press the buttons [▲]or[▼]�
> The LED of the selected process value display is lit and the current process
value is displayed�
> After 30 seconds the display changes to the standard display�

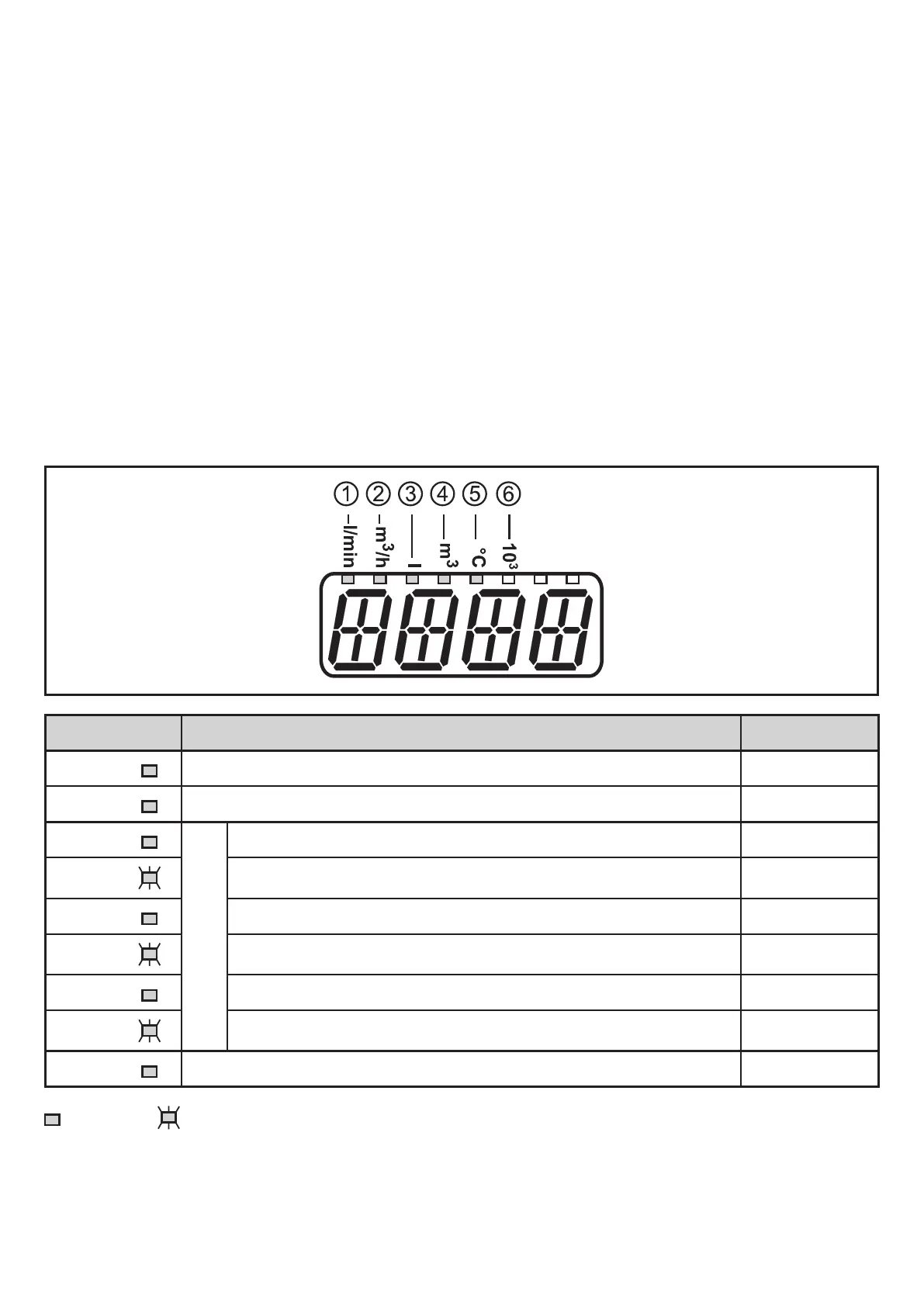

LED Process value display Unit
1 Current flow volume per minute l/min
2 Current flow volume per hour m
3
/ h
3
Totaliser *
Current consumed quantity since the last reset l
3 Consumed quantity before the last reset L
4 Current consumed quantity since the last reset m
3
4 Consumed quantity before the last reset m
3
4 + 6 Current consumed quantity since the last reset m
3
x 10
3
4 + 6 Consumed quantity before the last reset m
3
x 10
3
5 Current medium temperature °C
LED is lit; LED flashes
* The consumed quantity is automatically displayed in the unit of measurement providing the
highest accuracy�
