22
7 Operating and display elements
Enter

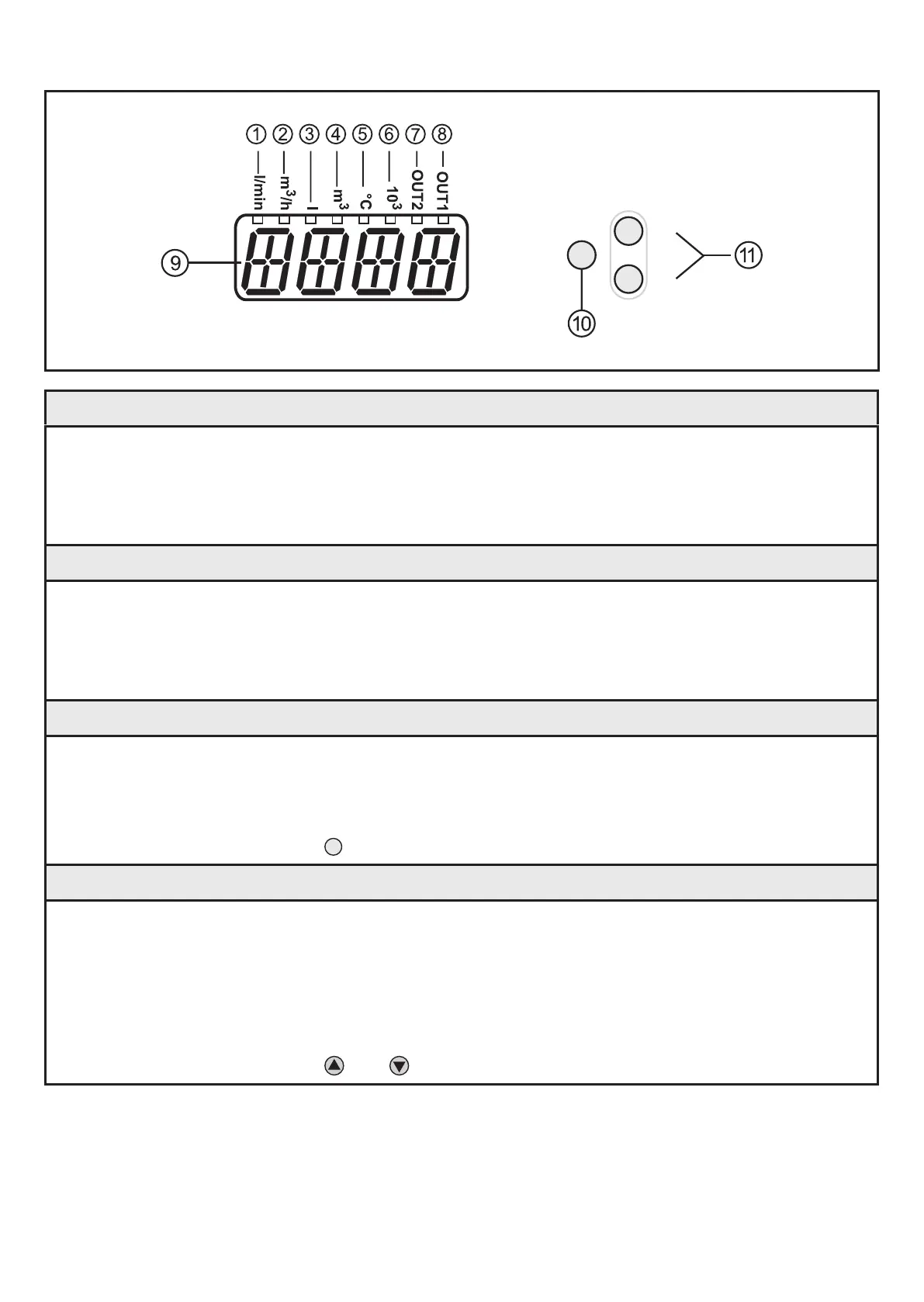

1 to 8: Indicator LEDs
•LEDs1-6=Unitofthecurrentlyrepresentednumericalvalue→11.1Readingthe
process value
•LED 7 = switching state of output OUT2 / of input InD
•LED 8 = switching status of output OUT1
9: Alphanumeric display, 4 digits
•Current volumetric flow quantity (with setting [SELd] = [FLOW])
•Meter reading of the totaliser (with setting [SELd] = [TOTL])
•Current medium temperature (with setting [SELd] = [TEMP])
•Parameters and parameter values
10: [Enter] button
•Selecting the parameters
•Reading the set values
•Confirming the parameter values
Representationin→8Menu:
11: Buttons up [] and down []
•Selection of the parameters
•Activation of the setting functions
•Changing the parameter values
•Change of the display unit in the normal operating mode (Run mode)
•Locking / unlocking
Representationin→8Menu: and
