10.6.2 Configuration of the standard display

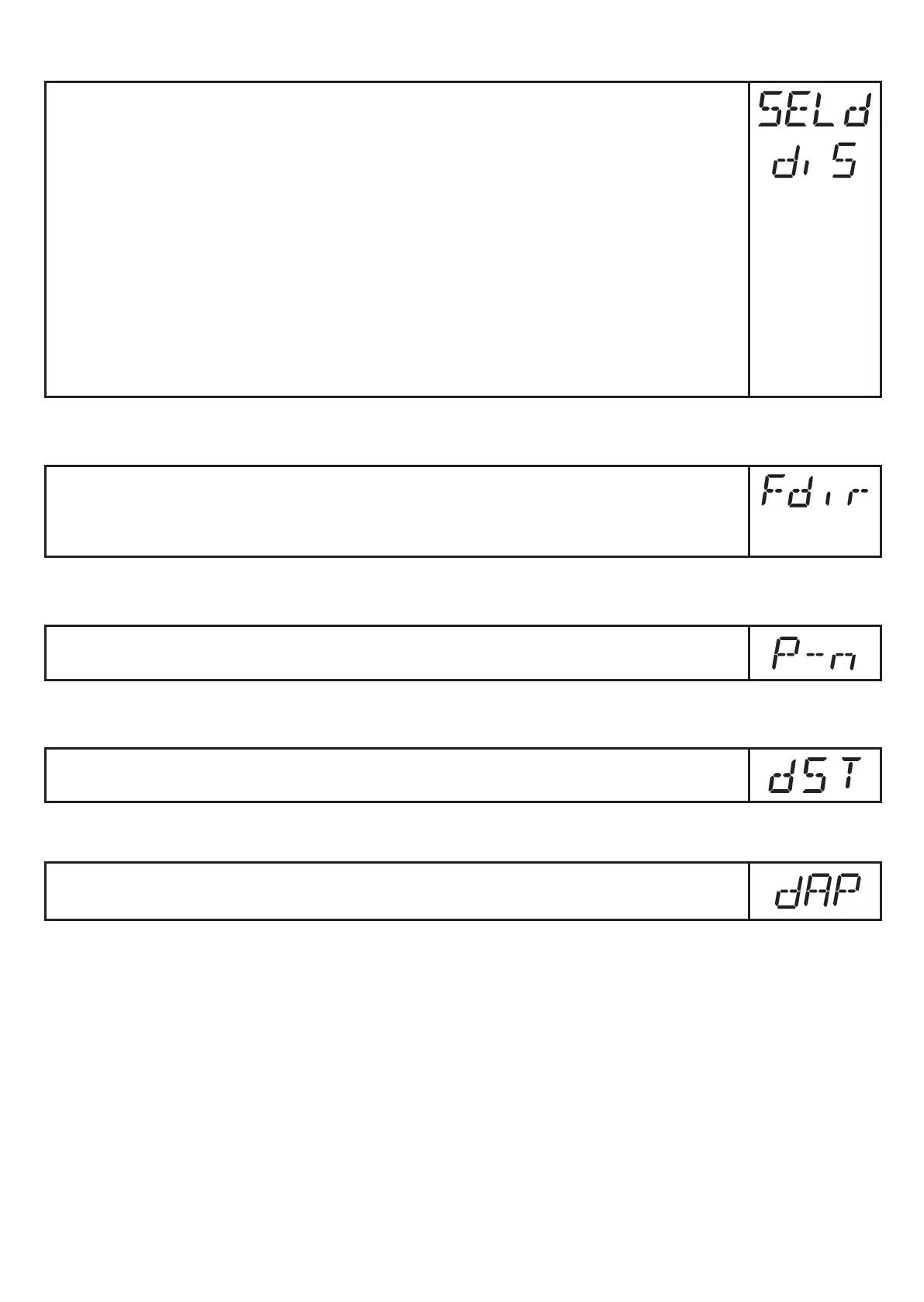

► Select [SELd] and determine the standard measuring unit:
- [FLOW] = the current volumetric flow value in the standard unit of
measurement is displayed�
- [TOTL] = display indicates the current meter count in l, m
3
or 1000 m
3
�
- [TEMP] = the current medium temperature in °C is displayed�
► Select [diS] and set the update rate and orientation of the display:
- [d1] = update of the measured values every 50 ms�
- [d2] = update of the measured values every 200 ms�
- [d3] = update of the measured values every 600 ms�
- [rd1], [rd2], [rd3] = display as for d1, d2, d3; rotated by 180°�
- [OFF ] = the display is switched off in the operating mode�
10.6.3 Changing the direction of the flow rate measurement
► Select [Fdir] and set the direction of flow:
[+] = flow in the direction of the flow arrow (= factory setting)
[-]=flowagainsttheflowarrow►labeloverthearrow
10.6.4 Setting the output logic
► Select [P-n] and set [PnP] or [nPn]�
10.6.5 Setting the start-up delay
► Select [dST] and set the numerical value in seconds�
10.6.6 Setting the measured value damping
► Select[dAP]andsetthedampingconstantinseconds(τvalue63%).
