3.6.4 6-fold Vario Chassis 474-BODY6R
CPU and CON Unit
3
4
5
1
2
6
8
7

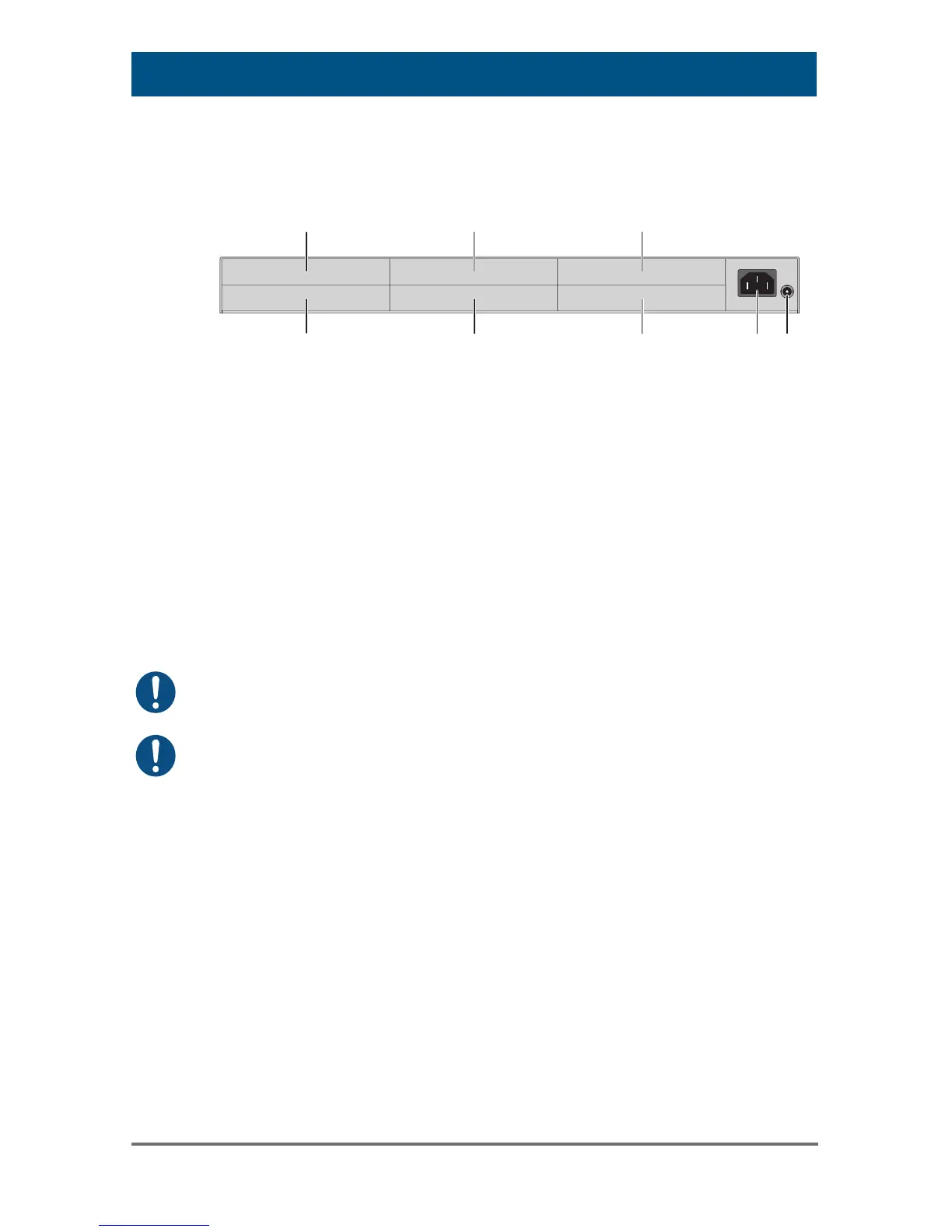

Rear View
1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply (standard)
5 Connect to 5VDC power supply (standard)
6 Slot for modules #6
7 Slot for modules #4
8 Slot for modules #2
For operation with KVM Extender modules in a 6-fold vario chassis, two
power supplies are necessary. In this case, redundancy is inapplicable.
The 6-fold vario chassis is not equipped with a fuse on its primary side.
Therefore the protection against excessive currents has to be provided by
the electrical installation of the building.
