Ihse 474 Series - Status Upgrade Module Digital Audio

Description
2014-04-15 35

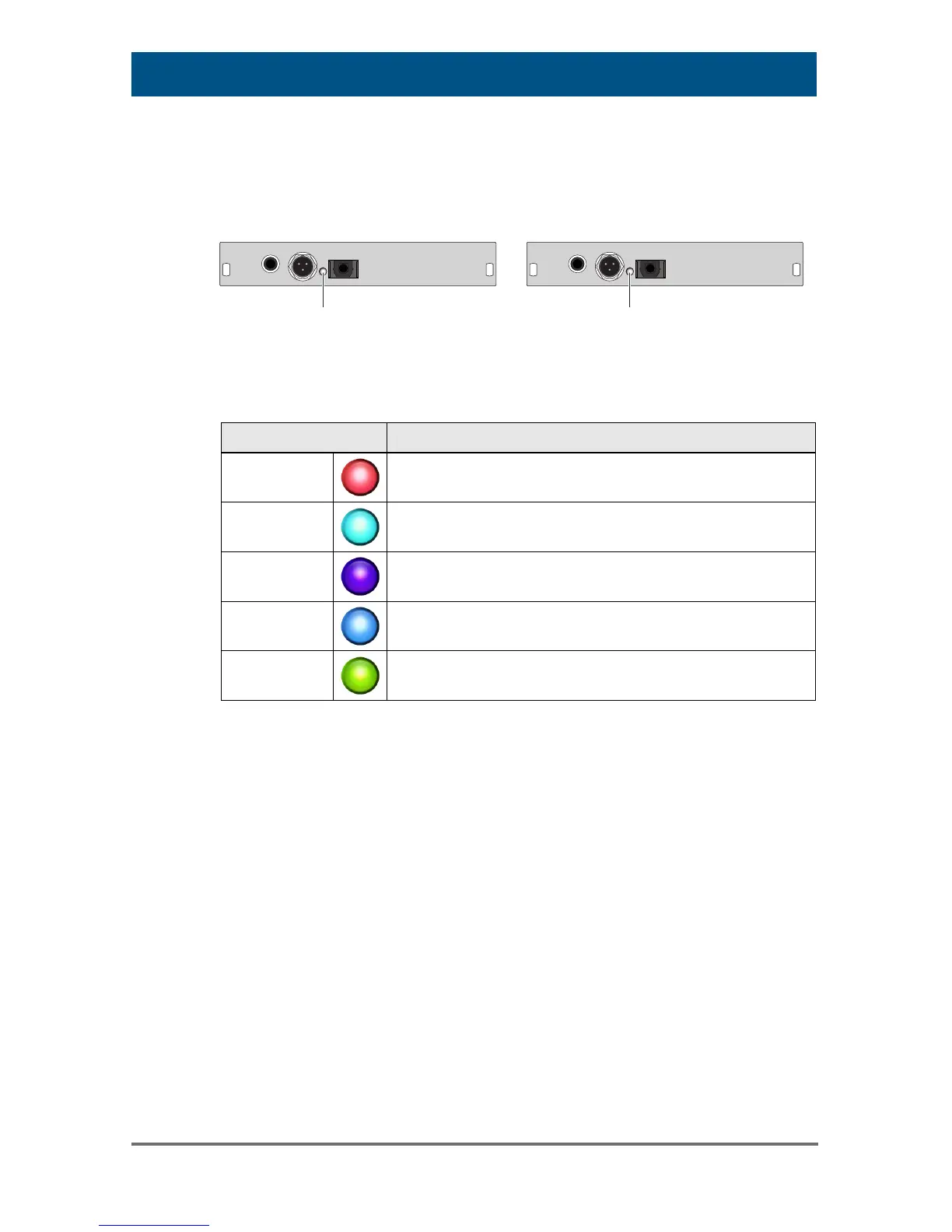

3.7.3 Status Upgrade Module Digital Audio
The upgrade module digital audio is fitted with a further multi-color LED on
the rear side for indication of the connection status:
CPU Module CON Module
1 1
Rear View Rear View
LED 1: Digital Audio Status
LED color Description
Red No signal
Light Blue CPU Unit: S/PDIF signal (RCA) available
Violet CPU Unit: AES/EBU signal (Mini-XLR) available
Blue CPU Unit: S/PDIF signal (TOSLINK) available
Green CON Unit: Signal available
