Ihse 474 Series User Manual

Description
2014-04-15 29

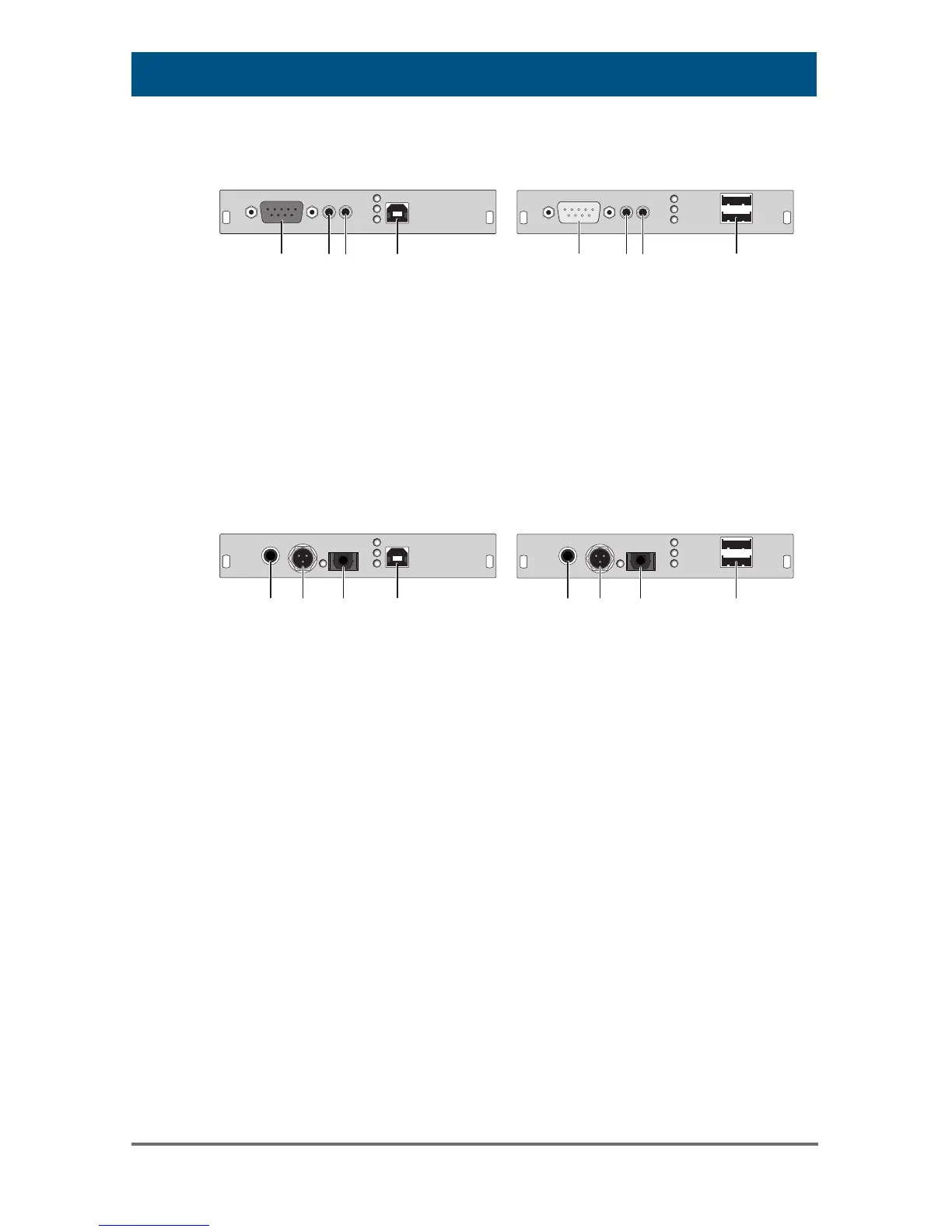

3.6.21 Model L- / R474-BAH
CPU Module CON Module
1
2
3
4
123
4
Rear View Rear View
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 To CPU: USB-HID
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 Connect to USB-HID devices
Pos: 37 /806-IHSE/ Beschreibung/Gerä teansichten/474- xx/Typ L- / R474-BDH @ 6\mod_1304 583646457_6.doc @ 51056 @ 3 @ 1
3.6.22 Model L- / R474-BDH
CPU Module CON Module
1
3
4
2
1
3
2
4
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
4 To CPU: USB-HID
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
4 Connect to USB-HID devices
Pos: 38 /806-IHSE/Besc hreibung/Gerätea nsichten/474-xx/ Typ L- / R474-BAE @ 7\mod_13317991649 39_6.doc @ 58150 @ 3 @ 1

Ihse 474 Series Specifications

General

Category	Extender
Manufacturer	Ihse
Serial	RS-232
Power	External Power Supply
Video Interface	DisplayPort
Distance (Fiber Optic)	Up to 10km
USB	USB 2.0
Audio	Supported
Interface	DisplayPort
Model	Ihse 474 Series
Storage Temperature	-20°C to 60°C
