Ihse 474 Series User Manual

Description
2014-04-15 25

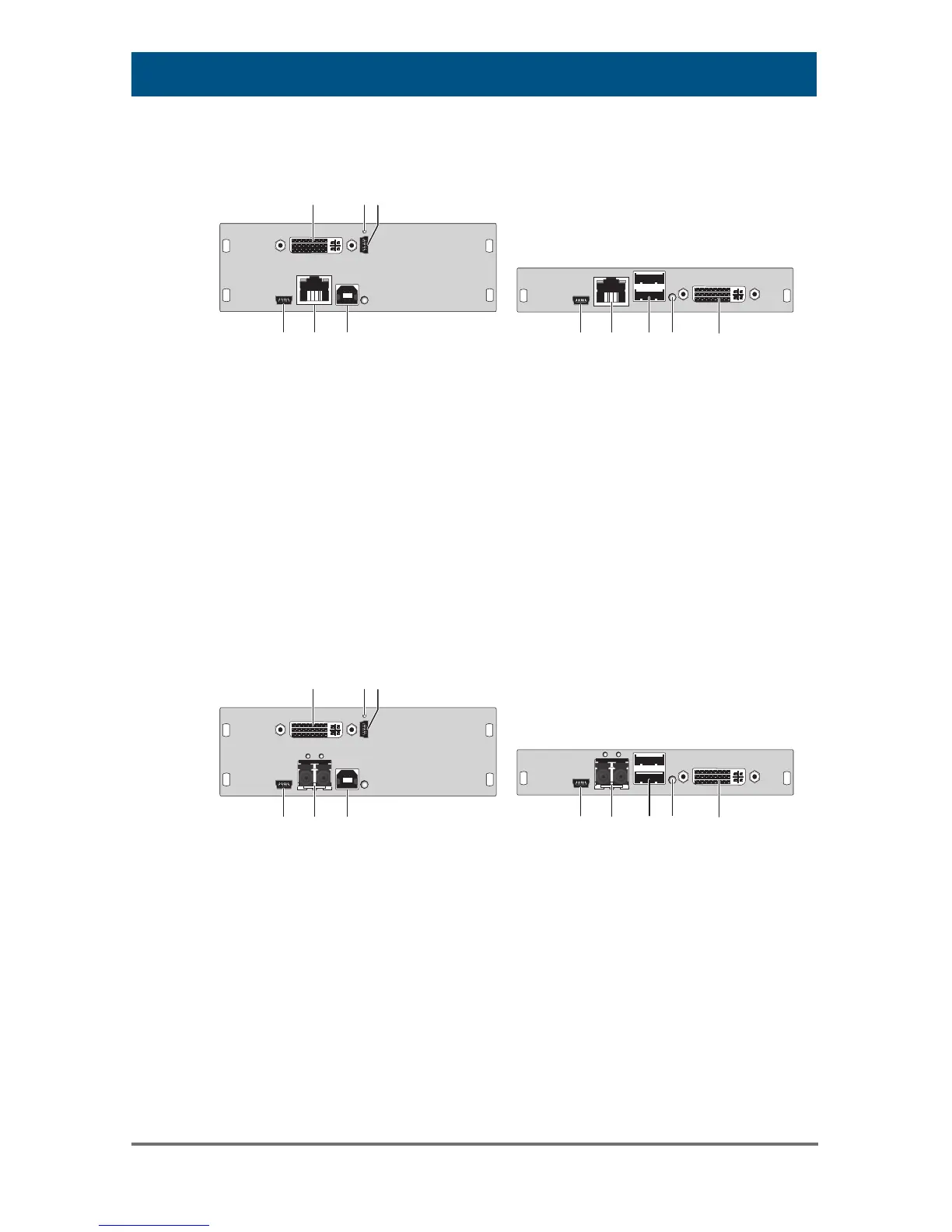

3.6.12 Model L- / R474-BSHCV
CPU Module CON Module
12 3
4
56
12
3
4
5
Rear View Rear View
1 Service port (KVM)
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-I (VGA / DVI)
5 IR receiver for remote control
6 Service port (DVI-I)
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 IR receiver for remote control
5 Connect to DVI monitor
Pos: 27 /806-IHSE/ Beschreibung/Gerä teansichten/474- xx/Typ L- / R474-BSHSV / - BSHXV @ 6\mod_1304583459332_ 6.doc @ 50966 @ 3 @ 1
3.6.13 Model L- / R474-BSHSV / -BSHXV
CPU Module CON Module
12 3
4
5 6
12
3
4
5
Rear View Rear View
1 Service port (KVM)
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-I (VGA / DVI)
5 IR receiver for remote control
6 Service port (DVI-I)
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 IR receiver for remote control
5 Connect to DVI monitor
Pos: 28 /806-IHSE/ Beschreibung/Gerä teansichten/474- xx/Typ L- / R474-BXH @ 6\mod_1304 583507645_6.doc @ 50984 @ 3 @ 1

Ihse 474 Series Specifications

General

Brand	Ihse
Model	474 Series
Category	Extender
Language	English
