MDtest (100-140 V) - User’s Manual 4 Measurements
4.5.2 PE current during operation - IdirEq

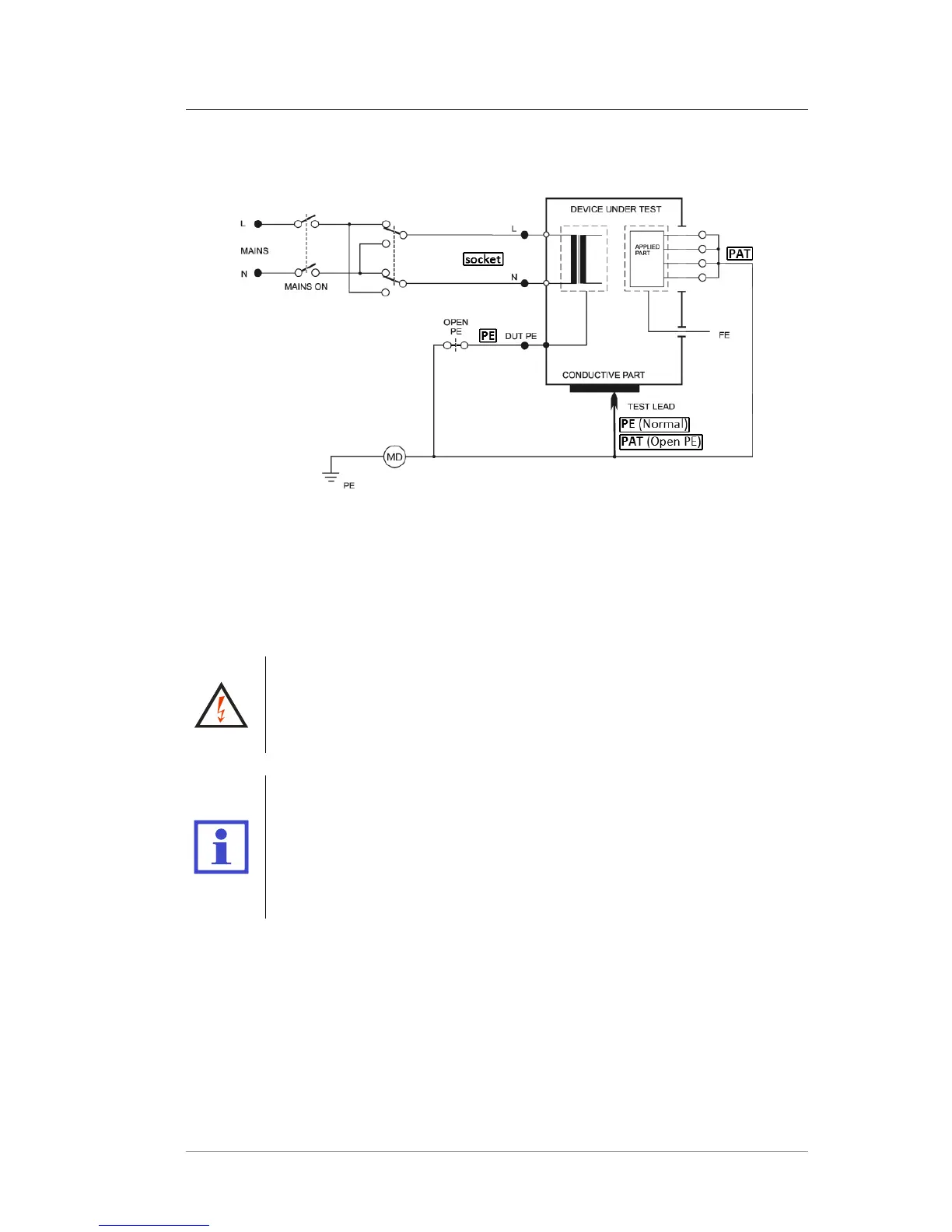

Figure 9: IdirEq measurement
Outlet conditions:
- Normal Polarity - Reversed Polarity
- Normal Polarity, Open PE - Reversed Polarity, Open PE
If the test voltage is present in Test Socket 1, then the tested equip-
ment starts to run after its mains switch is switched on! Take into
consideration all safety warnings referred to by the DUT!
Do not touch the exposed conductive parts of the tested object
after the mains switch is switched on!
The MDtest is equipped with an electronic check for excessive leakage
current during measurement. If the leakage current exceeds the limit
value of approximately 10 mA, then the mains voltage is disconnected
from the Test Socket 1. This status is indicated by displaying (Cur-
rent >10.00 mA) and the acoustic signal sounds.
The value of the DC component can be measured and displayed (see
chapter 6.5.2).
