4.7.4 Lead isolation – Mains on Applied Parts leakage current (direct
method) - I60601MAP

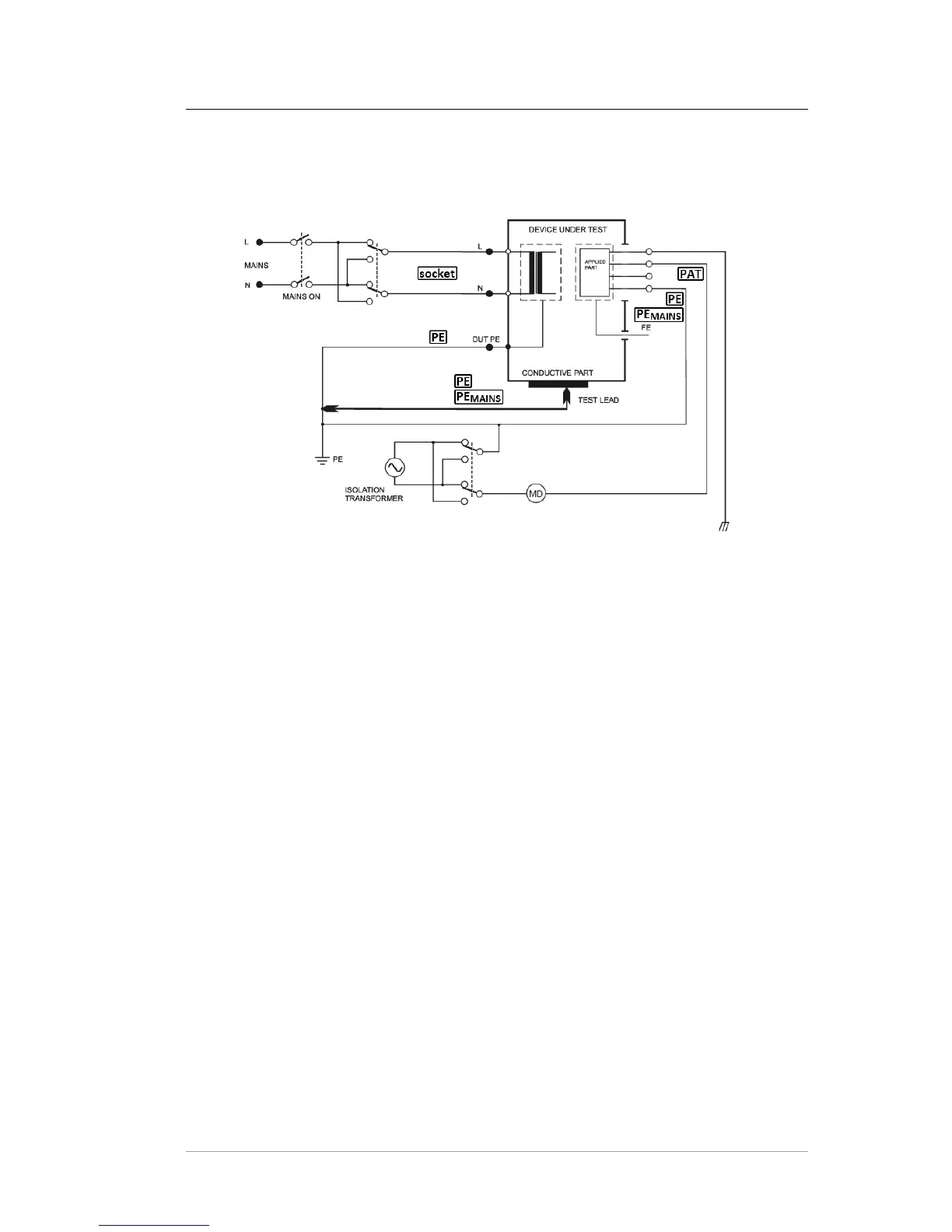

Figure 17: I60601MAP measurement
Outlet conditions:
- Normal Polarity, Normal Polarity Isolation transformer
- Normal Polarity, Reversed Polarity Isolation transformer
- Reversed Polarity, Normal Polarity Isolation transformer
- Reversed Polarity, Reversed Polarity Isolation transformer
Procedure:
• Press the [* UTIL] key and release it. Then press the [4] key and release it.
• Select the polarity of the isolated AC test voltage:
[MAP1] => normal, [MAP2] => reversed.
• Connect the tested appliance: plug in its mains plug into Test Socket 1. Plug
the applications parts into the PAT terminal. If necessary (e.g. protective
class II appliances), plug the test lead into the PE or PEMAINS terminals.
• Press the [TEST] key.
• Switch on the tested appliance’s mains switch.
• Press the test tip against the exposed conductive part of the tested appliance.
• The HOLD function can be used (press the [H] key).
• Switch off the tested appliance’s mains switch.
• Finish the measurement (see chapter 4.2.1).
