4.7.3 Lead to ground (application part) leakage current (direct method)
- I60601Pat

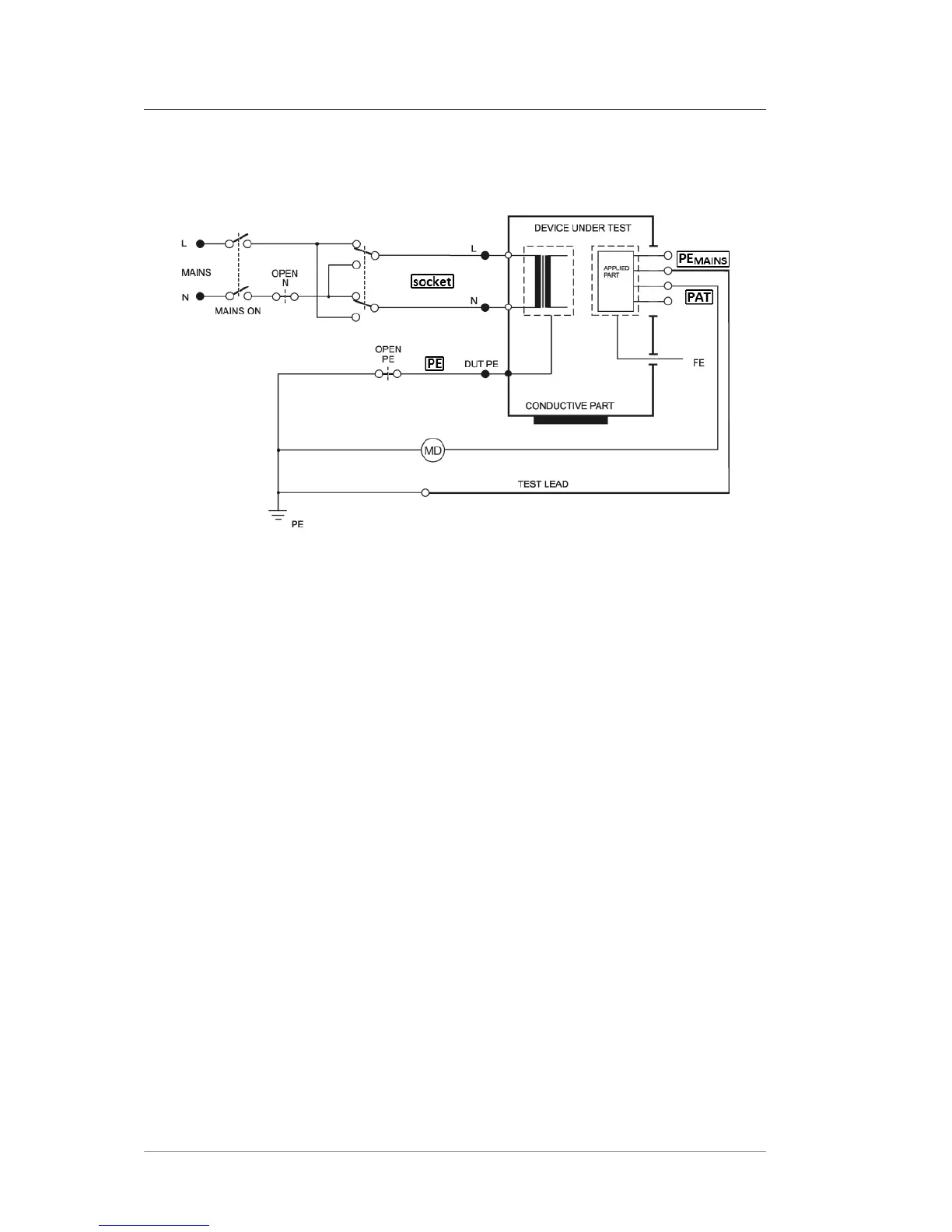

Figure 16: I60601Pat measurement
Outlet conditions:
- Normal Polarity - Reversed Polarity
- Normal Polarity, Open Neutral - Reversed Polarity, Open Neutral
- Normal Polarity, Open PE - Reversed Polarity, Open PE
Procedure:
• Press the [* UTIL] key and release it. Then press the [3] key and release it.
• If the measurement with open N can be performed, press the [OpenN] key.
• If the measurement with open PE can be performed, press the [OpenPE] key.
• Press the [Default], [OpenN] or [OpenPE] keys repetitively in order to
measure with L-N reversal. Symbol L-N reversed is displayed.
• Connect the tested appliance: plug in its mains plug into Test Socket 1. Plug
the applications parts into the PAT or PEMAINS terminals.
• Press the [TEST] key.
• Switch on the tested appliance’s mains switch.
• The HOLD function can be used (press the [H] key).
• Switch off the tested appliance’s mains switch.
• Finish the measurement (see chapter 4.2.1).
