IMC C SERIES User Manual

© 2018 imc Test & Measurement GmbH
imc C-SERIES - Manual, Version 4 R 3 - 2018-10-19
64 Device description
Power-up response:
0)
deactivated
high-Z (high resistance)
1)
power-up
high-Z (high resistance) High- and LowSide switch inactive
2)
first write access
With "Prepare measurement" following Reset or Power-up (setting
procedure): activation of the output state with the mode set by the
programming pin "OPDRN"
Example
wire jumper between programming pin “OPDRN” and LCOM (-> Totem-Pole driver type)
Initialization (first setting procedure) with 0 (LOW)
--> resulting startup sequence: High-Z --> LOW, without intermediate HIGH state!
Without further steps the default initialization state while preparing measurement is: “LOW”.
If a different state is desired, the appropriate checkmark must be set in the DIO interface dialog, namely
under:
Settings --> Input/ Output channels --> Set values of Input/ Output channels in the experiment
and not at: Measure --> Input/ Output channels --> Read and write Input/ Output channels!

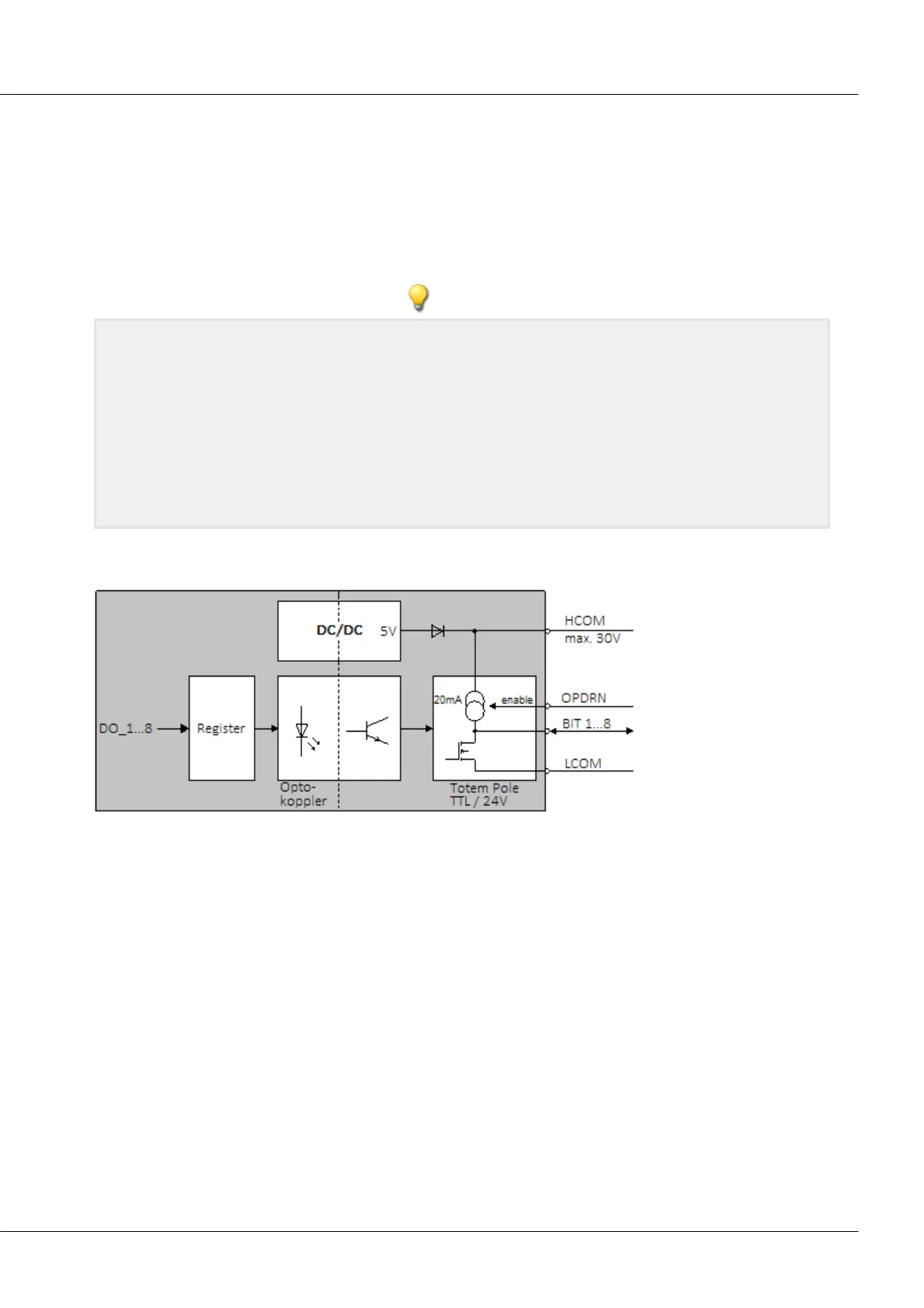

5.1.1.2.1 Block schematic
