IMC C SERIES User Manual

© 2018 imc Test & Measurement GmbH
imc C-SERIES - Manual, Version 4 R 3 - 2018-10-19
65Hardware configuration of all devices

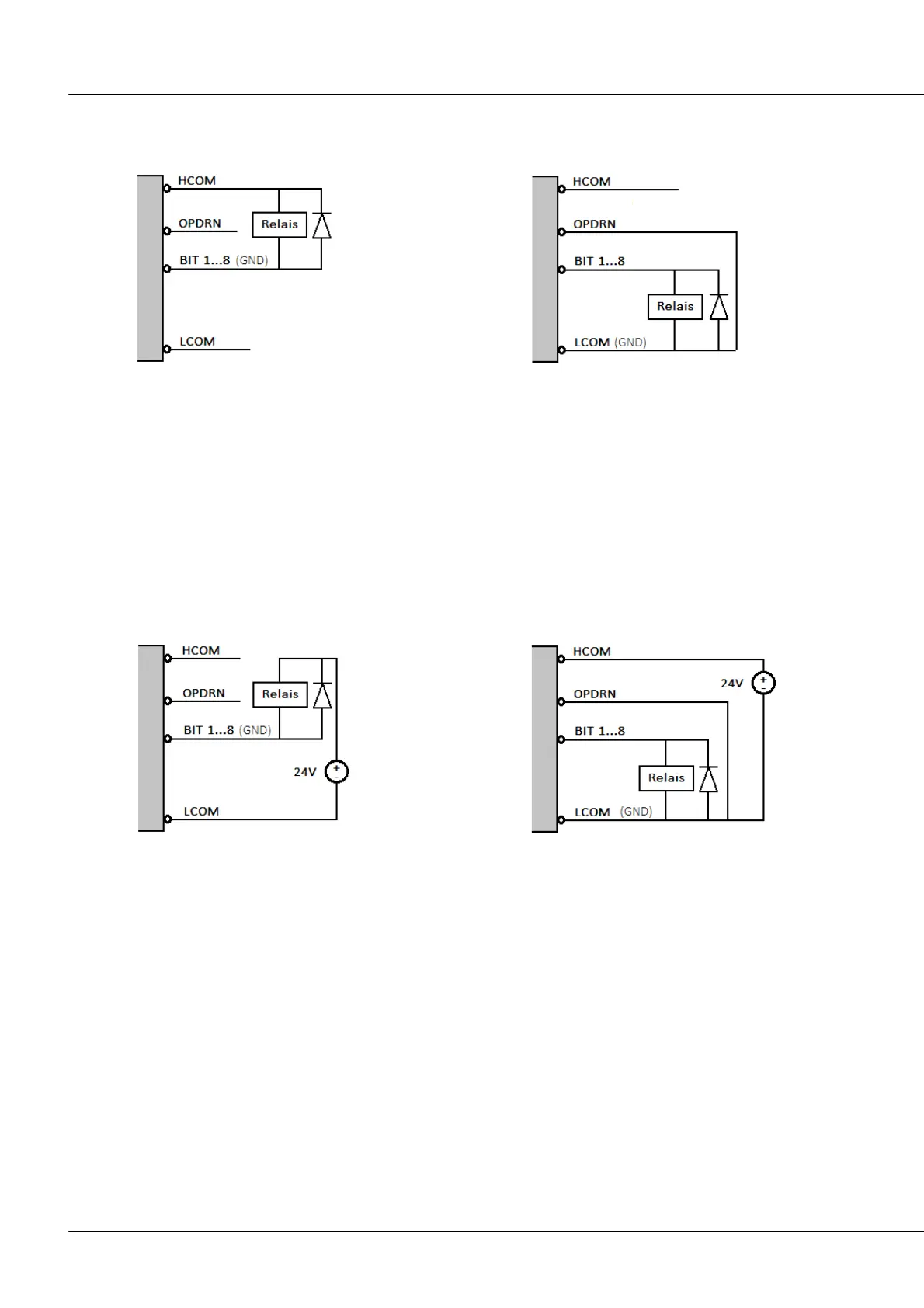

5.1.1.2.2 Possible configurations
Open Drain
5V (internal)
Totem Pole
Device off: no continuity/high impedance
(138 kOhm), 0 V at output
Device off: no continuity/high impedance
Device booting: no continuity/high impedance
(138 kOhm), 0 V at output
Device booting: no continuity/high impedance,
0 V at output
After booting process: no continuity/high
impedance,
0 V at output, but all DO Bits = 1
After booting process: no continuity/high
impedance,
0 V at output, but all DO Bits = 1
DO Bit = 0 -> 5 V
DO Bit = 1 -> 0 V
DO Bit = 0 -> 0 V
DO Bit = 1 -> 5 V
Open Drain
24V
Totem Pole
Device off: no continuity/high impedance
(1.5 MOhm), 0 V at output
Device off: no continuity/high impedance (1.5
MOhm)
Device booting: no continuity/high impedance
(1.5 MOhm), 0 V at output
Device booting: no continuity/high impedance
(1.5 MOhm), 0 V at output
After booting process: no continuity/high
impedance (1.5 MOhm),
0 V at output but all DO Bits = 1
After booting process: no continuity/high
impedance (1.5 MOhm),
0 V at output, but all DO Bits = 1
DO Bit = 0 -> 24 V
DO Bit = 1 -> 0 V
DO Bit = 0 -> 0 V
DO Bit = 1 -> 24 V
With Totem Pole, a maximum of 22 mA load current is possible, totally independently of any externally
connected voltage.
Open Drain is able to switch currents of up to 700 mA. When using the internal 5 V power supply, note
that the limit on total current at all outputs is 200 mA.
