5.2.7 WiFi (WLAN) connection

Measurement devices can optionally be equipped with a built-in WiFi (WLAN) adapter. An alternative

wireless network connection may especially useful in applications such as mobile test drives.

Measurement devices can be equipped with WiFi (WLAN) adapters conforming to the standard IEEE

802.11g ("Draft-g"), which achieve maximum gross transfer rates of 54 Mbit/s.

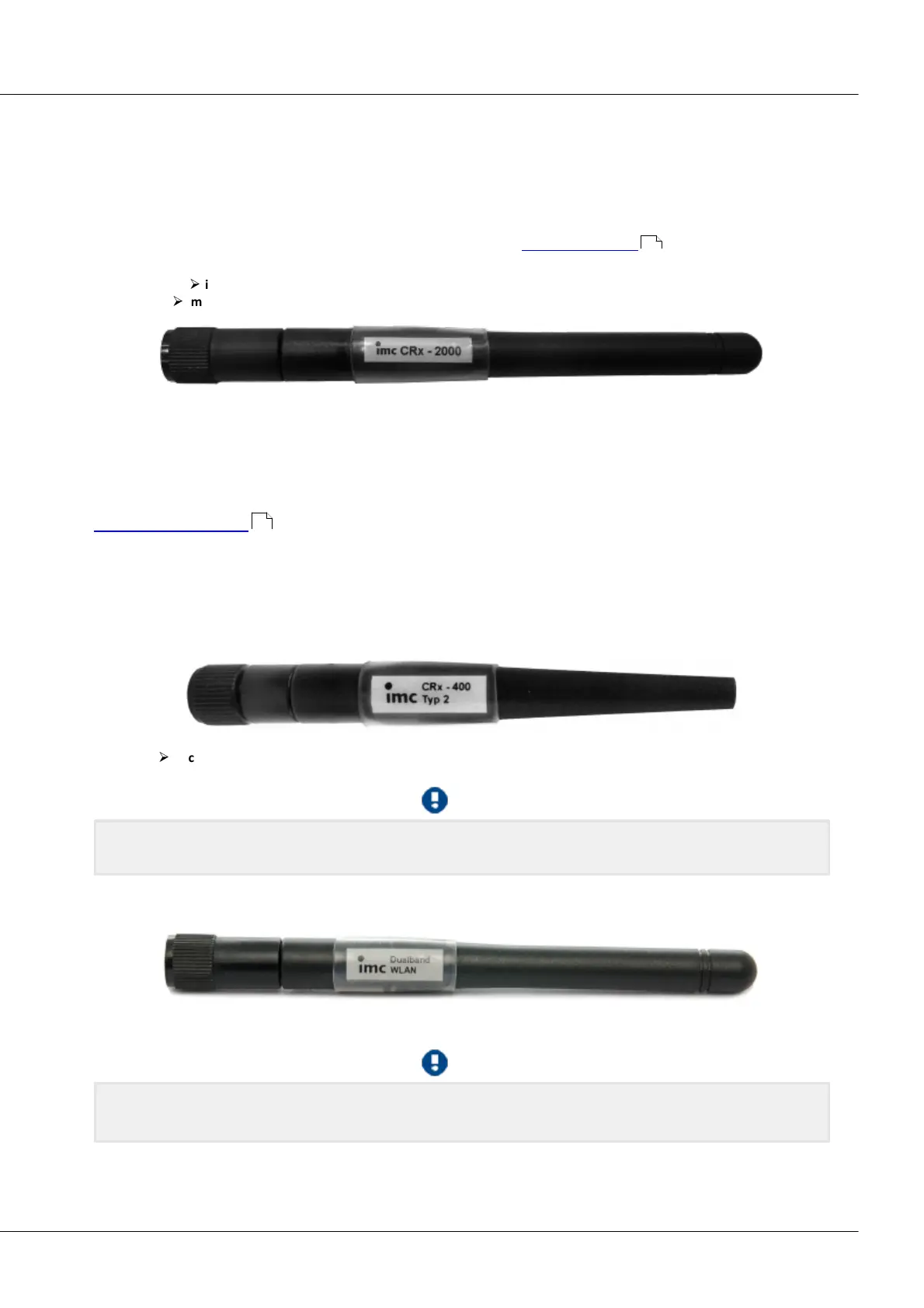

WiFi (WLAN) antenna for a CRx - 400 system (see device overview )

Each antenna of the corresponding system is labeled ex-factory at imc Berlin:

imc CRx - 400; antenna with SMA Male — only fits with devices with RP-SMA (SMA Female)

imc CRx - 2000; antenna with RP-SMA plug (SMA Female) — only fits with devices with SMA Male

WiFi (WLAN) antenna for a CRx - 2000G system

The "2000G" devices allow installation of optional WiFi (WLAN) adapters conforming to the standard IEEE

802.11n ("Draft-n"), which by using multiple antennas provides higher data rates. Two externally

connectable antennas are supported (standard SMA connection), which together achieve a data rate of

300 Mbit/s.

Technical details: WiFi

The WLAN antenna with an SMA male terminal is no longer offered by the manufacturer. imc has a

modified substitute antenna from the same manufacturer (this affects systems shipped as of August,

2014). For this reason, imc has changed the connection terminals on the devices (SMA Male). Devices

previously having RP-SMA (SMA Female) terminals will instead have SMA Male terminals in future.

There is a new label for the new antenna to differentiate:

WiFi (WLAN) antenna for CRx - 400 system

imc CRx - 400 Typ 2; antenna with RP-SMA plug (SMA Female) — only fits with devices with SMA Male

Note

The antenna labeled: "imc CRx - 2000" can be used for all imc CRONOS with built-in WiFi (WLAN)

adapter (SMA Female).

In order to make the label of the antenna for all devices uniform, we changed the label as follows:

Note

Please pay attention to the terminal connection on your device!

WiFi antenna with RPSMA (female) is only compatible to RPSMA (male) on your device.
