10
- Plug and screw cutter drive and hose package together using 3 screws M5x45, which
are used to fasten the cover plate to the hose package.
- Check the required cutting tool for imbalance (e.g. missing blades; if OK, then fasten
cutting tool (see 2.5.2 ).

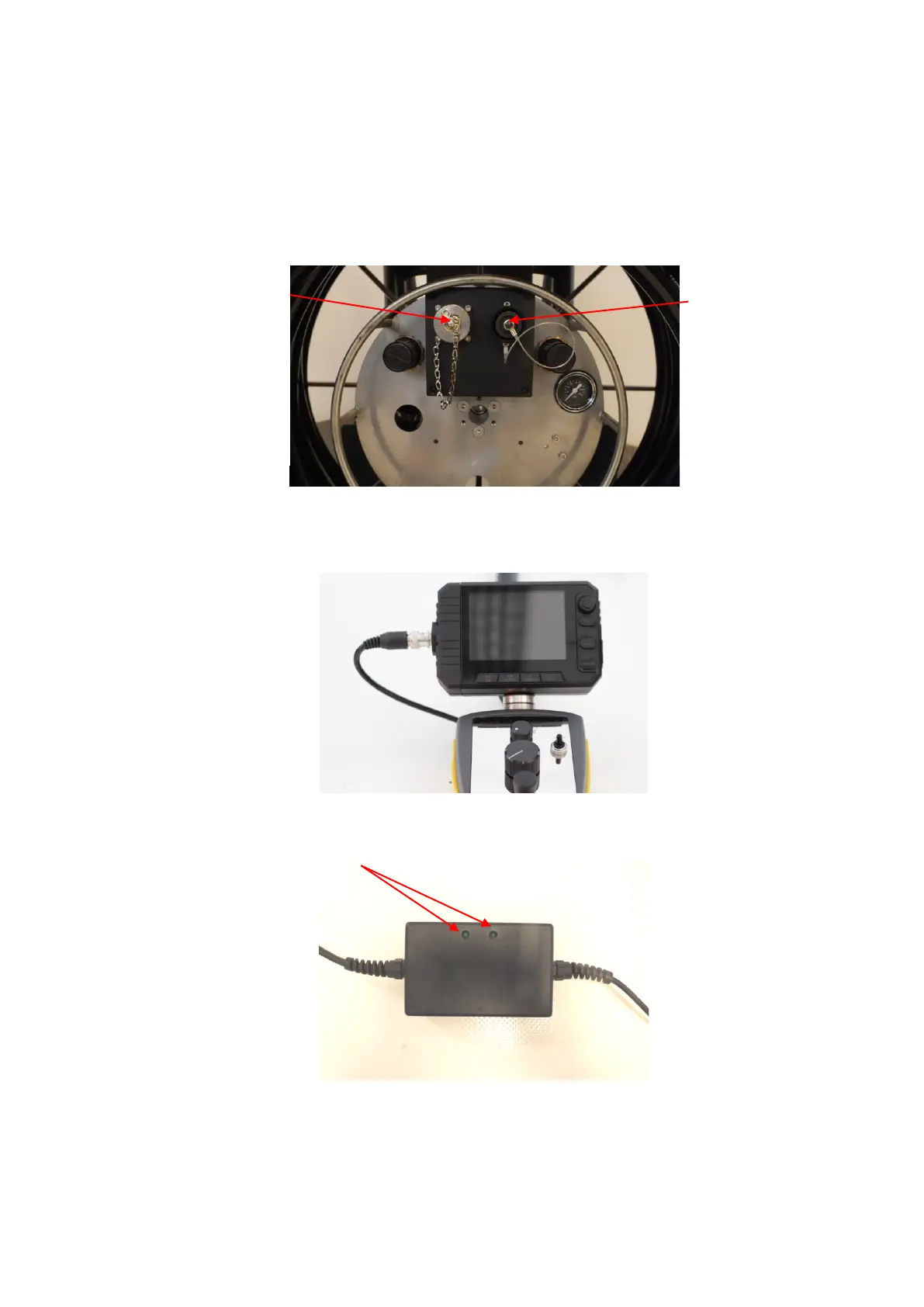

- Connect the control unit to the reel (all switches on te control unit must be switched
OFF)
5 m/16 ft (030 07 400), 10 m/33 ft (030 21 400) and 20 m/66 ft extensions (030 22 400) to
connect the control unit to the reel are optionally available.
- Connect the monitor (optional 032 01 001) to the control unit
- Connect the power supply unit to the reel
- Connect the power supply unit to the electrical supply; both the LED's (green) on the
power supply unit must light; otherwise the power supply assembly is defective
(replacement required)
- The camera light must be on.
