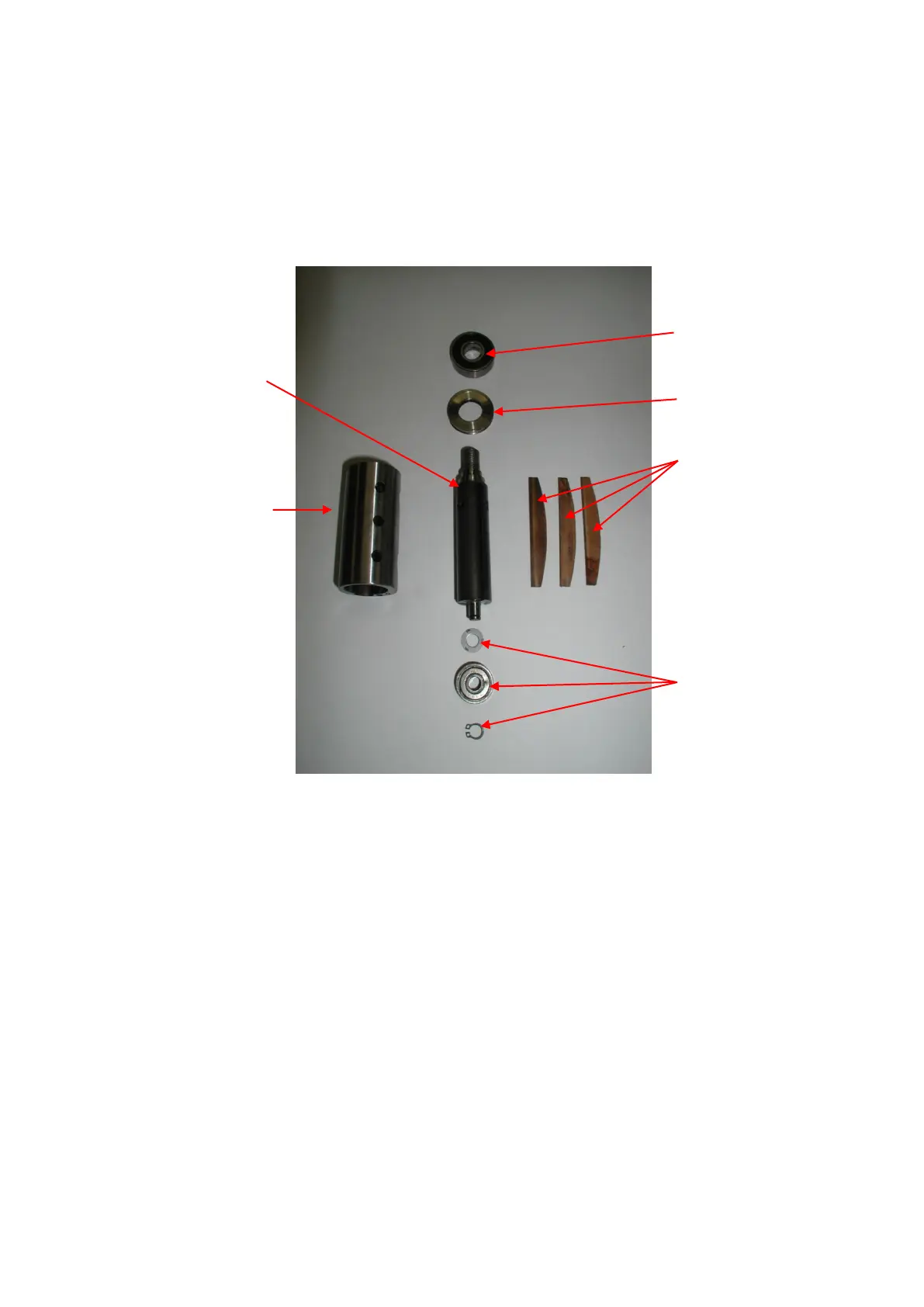

5.2 Air motor repair
5.2.1 Overview of air motor spare parts
1
006 30 002
Rotor with air motor ring
2
021 01 027
Cylinder
3
030 01 070
Ball bearings
4
030 01 032
Ventilation ring
5
021 01 053
Set of fins
6
006 30 001
Ball bearing with shim and circlip
3
2
5
6
4
1
