4.4.2 Checking the pressure reducer for the bracing bubble

First disconnect the blue 6 mm hose (coming from the hose package) from the pressure

reducer 2 (DM2). Press the black circlip towards the screw fitting and pull on the hose at the

same time.

Then pull the T-piece off the way-valve 1. For this purpose press the circlip on the way valve

towards the valve and pull on the T-piece at the same time.

Now connect the T-piece to the output of the pressure reducer 2 (DM2) and connect the blue

6 mm hose.

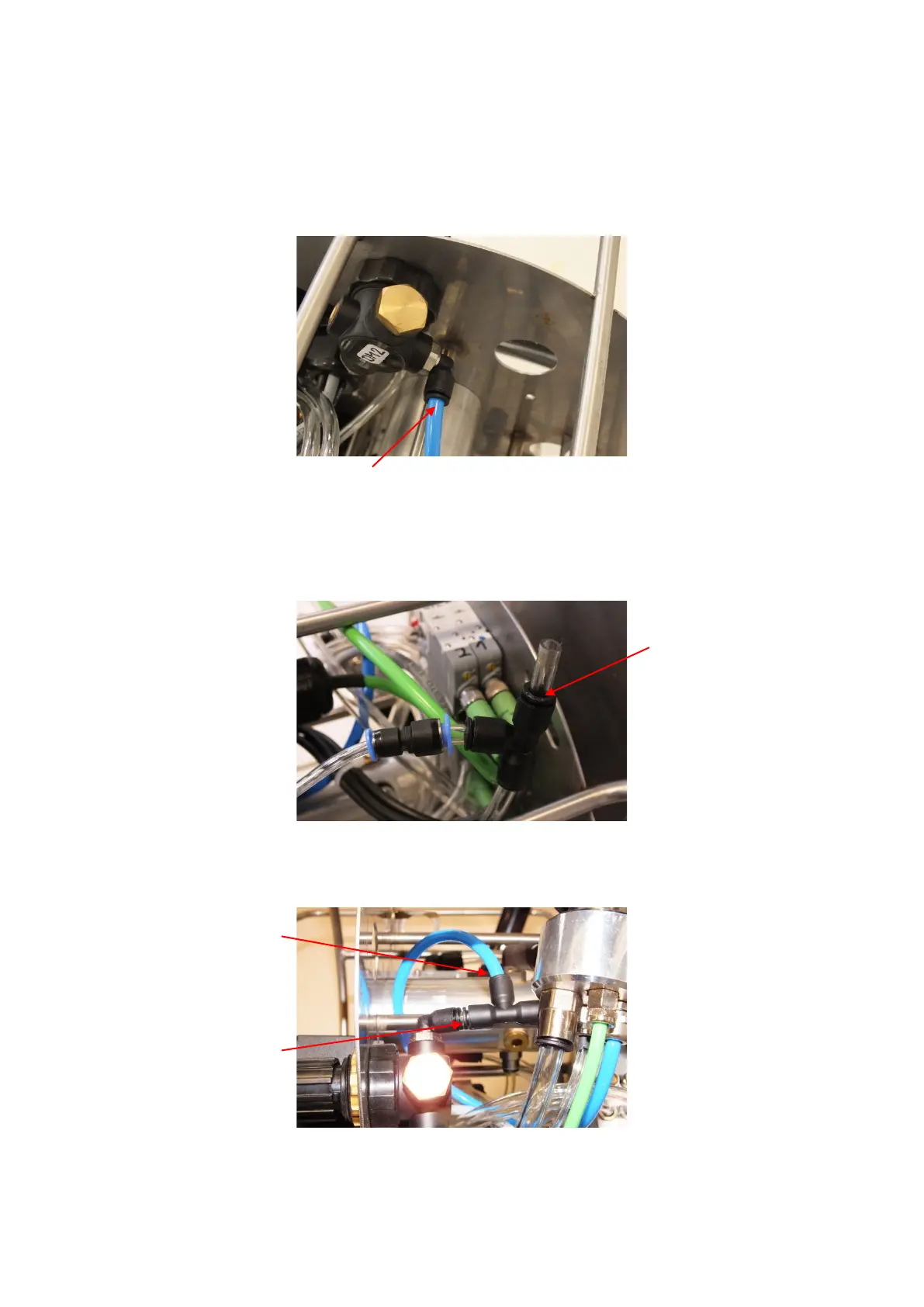

Locking ring

T-piece

Blue hose coming from

the hose package

T-piece connected to

the pressure reducer 2

(DM2)
