5.3 Pressure reducer

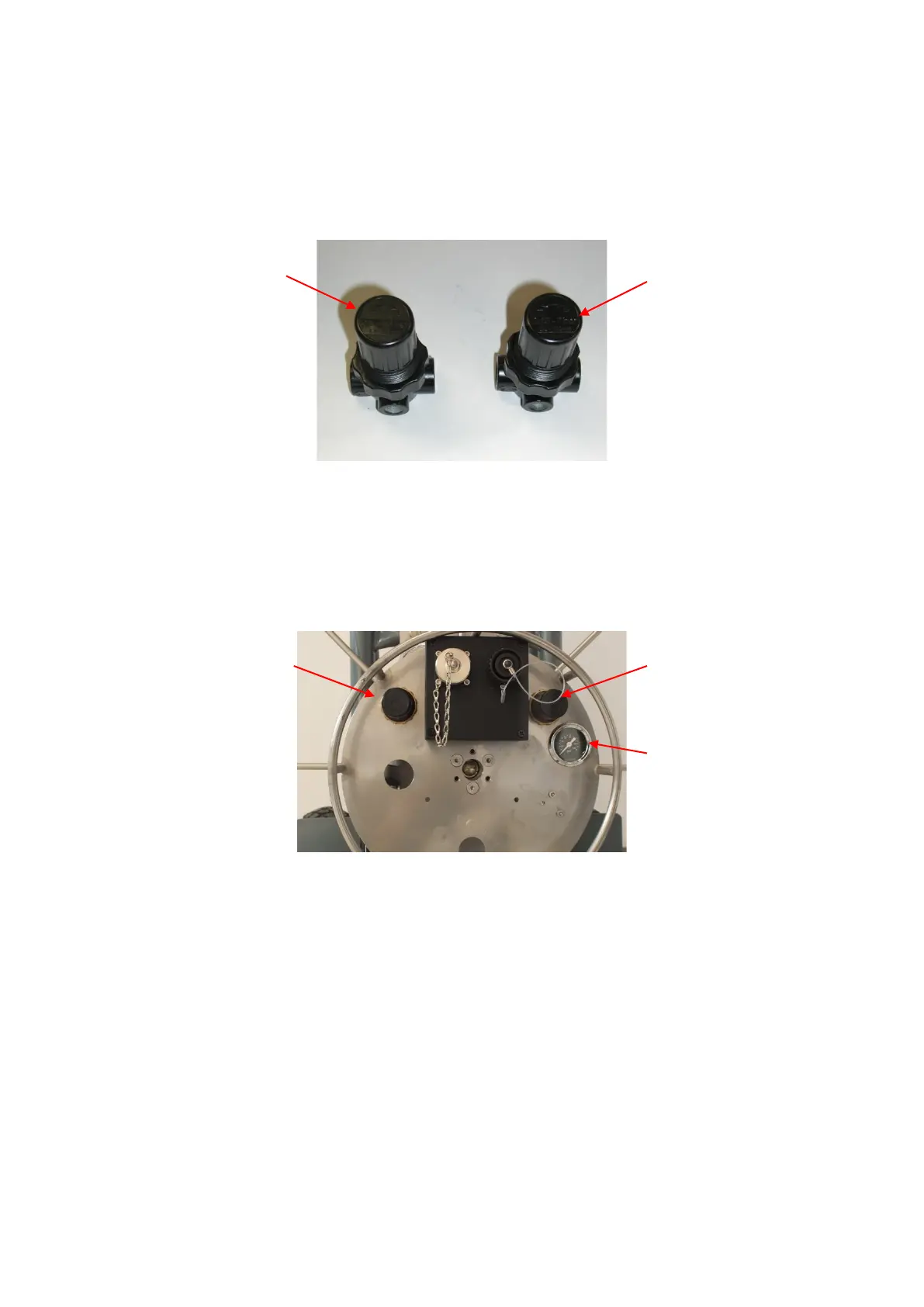

5.3.1 Overview of pressure reducer spare parts
1
014 01 045
Pressure reducer 0.15 – 7 bar (stroke drive 6 bar)
2
010 01 055
Pressure reducer 0.1 - 3.5 bar (bracing bubble 2 bar)
5.3.2 Changing the pressure reducer
Both pressure reducers DM1 (stroke drive) and DM2 (bracing bubble) are spare parts and
can be ordered from IMS.
Both pressure reducers are delivered with blind plugs. These are sealed. The pressure
reducer is pre-adjusted. However, the pressure must still be checked after the pressure
reducer has been replaced. In this respect see 4.4.1 Checking the pressure reducer for the
stroke drive and 0 .
1
Pressure reducer 1
(DM2) lifting unit
Pressure gauge
2
Pressure reducer 2
(DM2) (bracing bubble)
