5.2.2 Disassemble and reassemble air motor

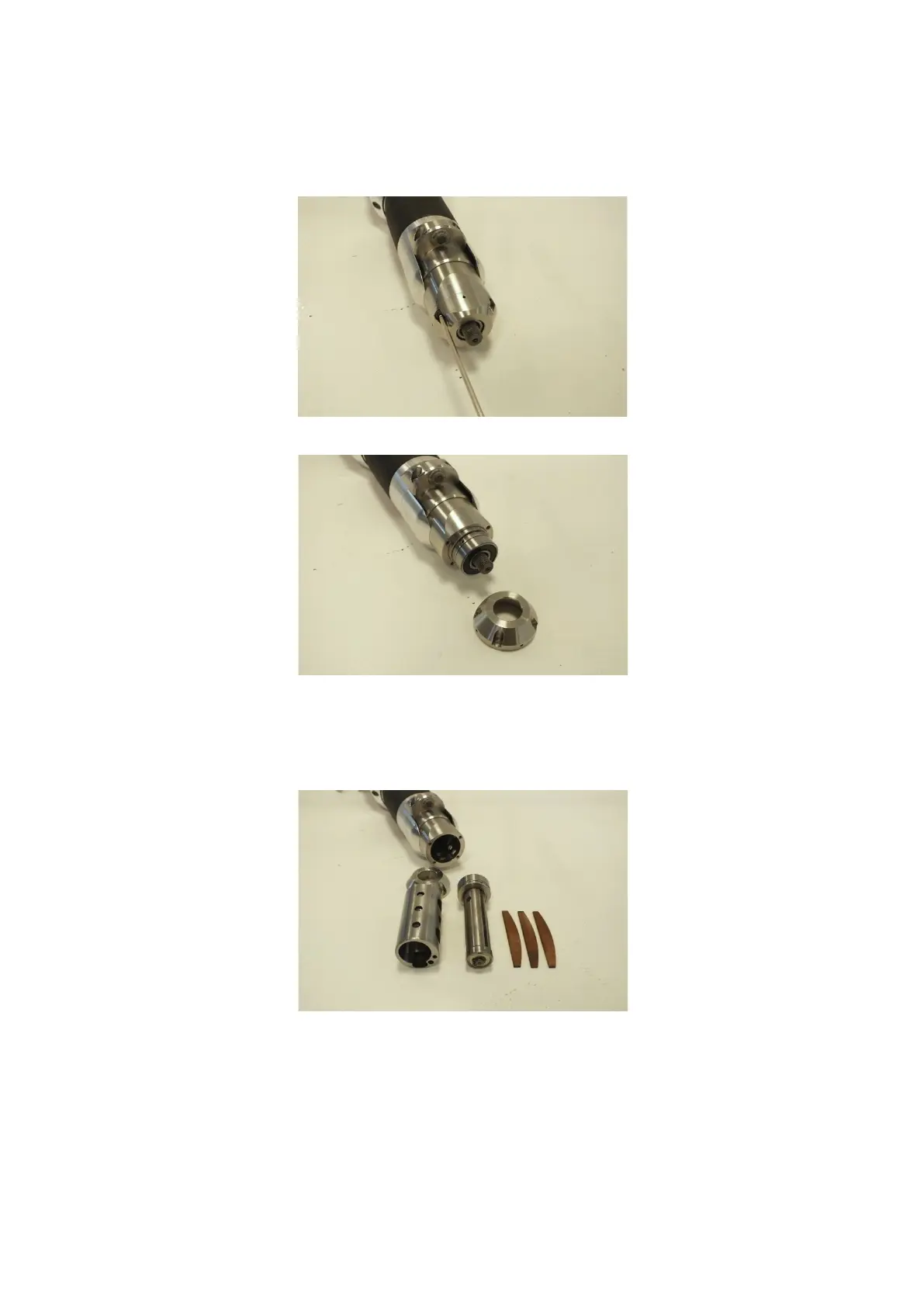

Removing the cutting tool, see 2.5.2 . Unscrew the air motor cover (4 M3x8 screws).
Pull out rotor with cylinder. Cylinder can be replaced. Remove the discs from the rotor.
Cylinder and discs can now be exchanged.
