IMS ROBOTICS MICRO light - Fasten the Fiberglass Push Rod

12
2.2.1 Fasten the fiberglass push rod
When using the fiberglass push rod, make sure that it is properly attached to the hose
assembly.
The fiberglass push rod pushes the milling drive better in the pipeline and stabilises it when
pushing it in at branches and joints.
NOTICE
No work may be carried out without the fiberglass push rod!
The mounting plate can get jammed in the pipeline (e.g. in sockets, branches or similar)
and the hose assembly will thus be damaged.
Structure of the fibreglass push rod:
The coupling of the fiberglass push rod must have an external thread M12.
Fasten the fiberglass push rod to the mounting plate of the hose assembly using the M12
lock nut and the M12 cap nut (from the accessories case).
The receptacle on the hose assembly must always be fitted before the transition to the
milling drive (blue hose connection)!

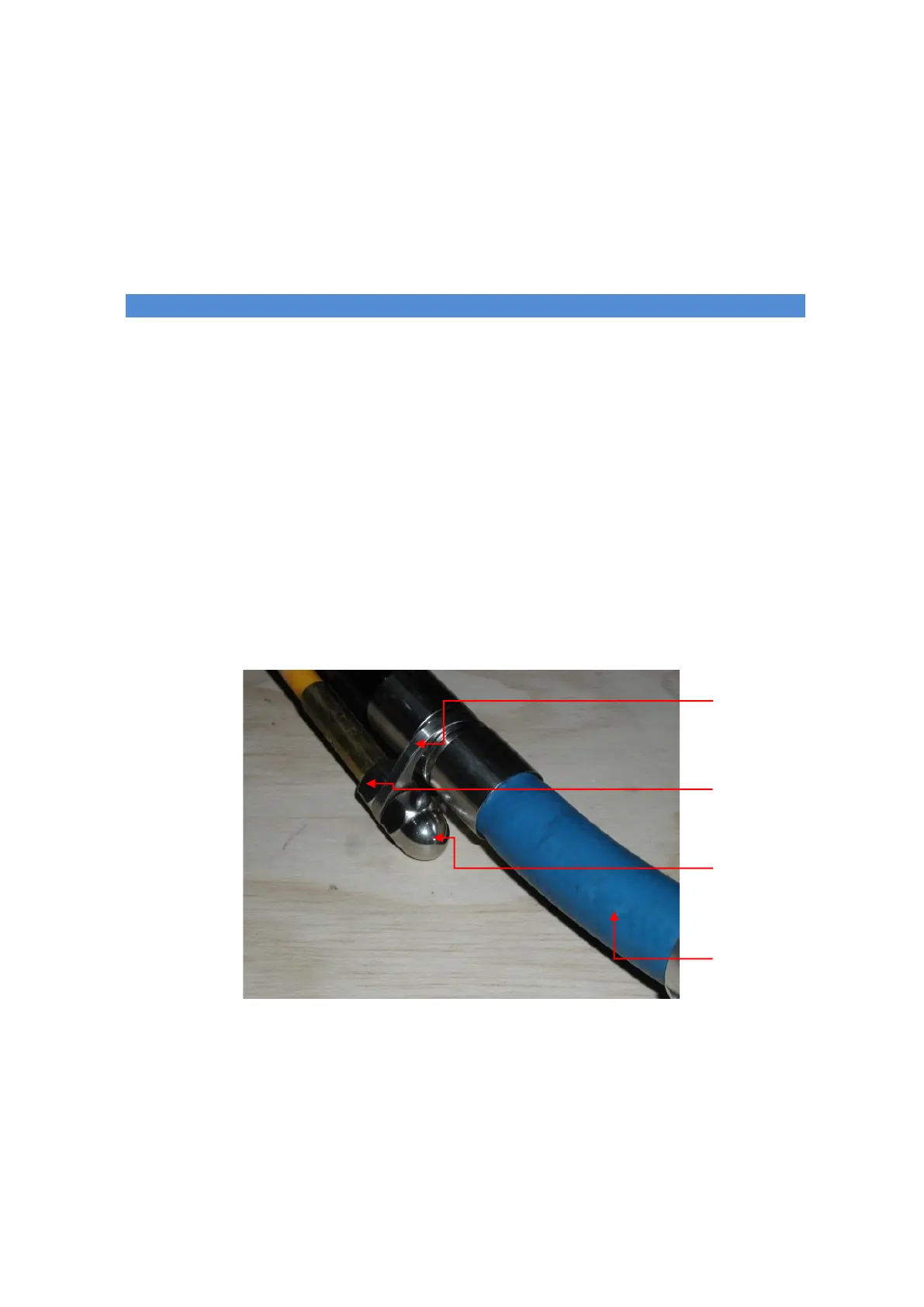

Attachment to the hose assembly:
1
Mounting plate for fiberglass push rod
2
Hexagon nut M12 (lock nut)
3
Cap nut M12
4
Transition to the milling drive (blue hose connection)
1
2
3
4
