5.4 Way-valves
The way valves (WV 1 - 2 and WV 3) are spare parts and can be ordered from IMS.

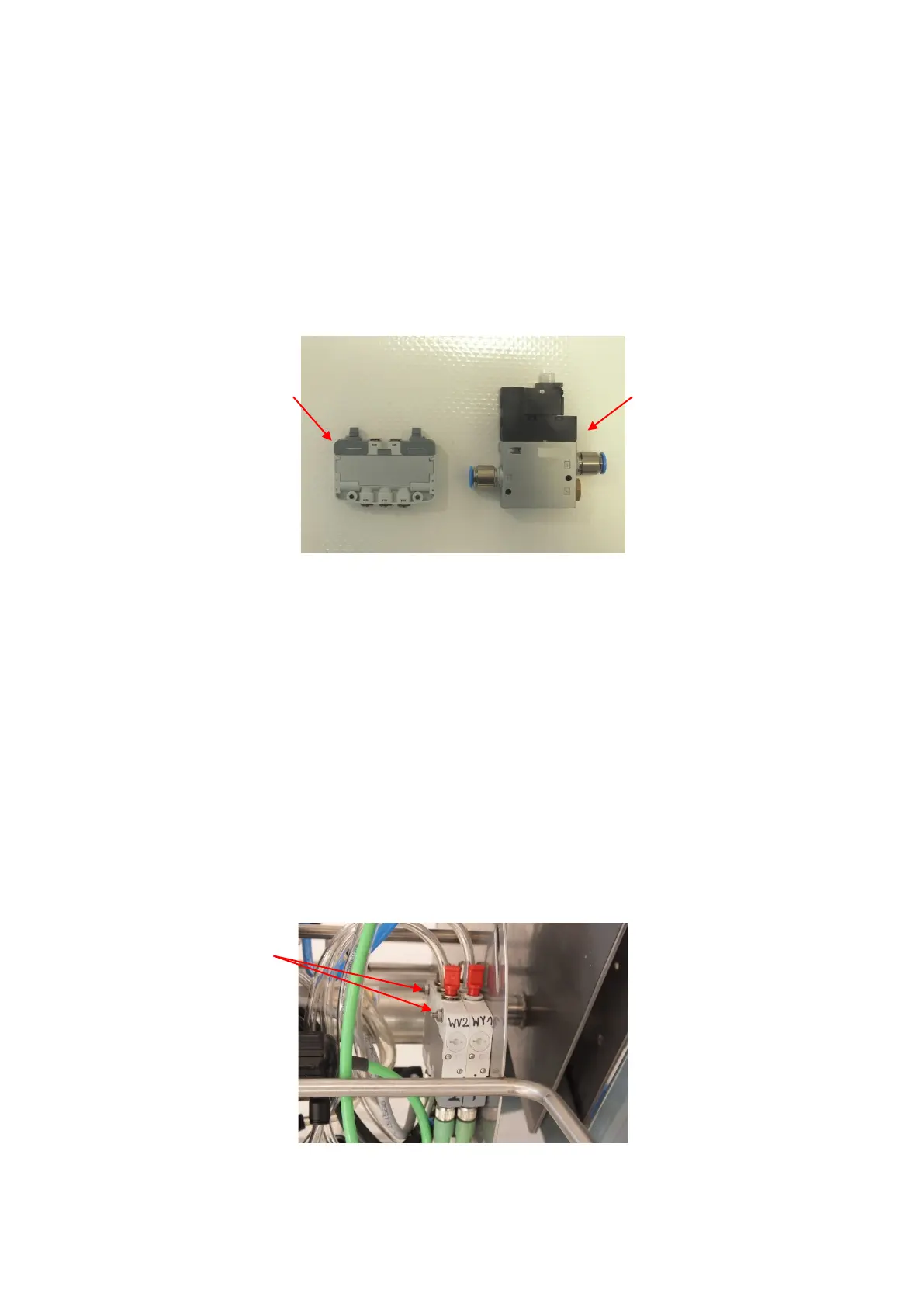

5.4.1 Overview of way-valve spare parts
1
016 12 010
Way-valve (WV 1-2, stroke, bracing bubble)
2
030 04 747
Way valve (WV 3, cutting air)
5.4.2 Replacing the way-valves
5.4.2.1 Replacing way-valve WV 1 - 2 (stroke, bracing bubble)
Unwind the hose package from the reel. Loosen the two screws M3x30 on the valve block to
replace a way-valve. Each connector should be swapped to its corresponding new valve and
the 2 valves reattached. Label the new valve. Attention: Standard shipments do not include
attachment screws.
Fastening screws
M3 x 30
1
2
