8

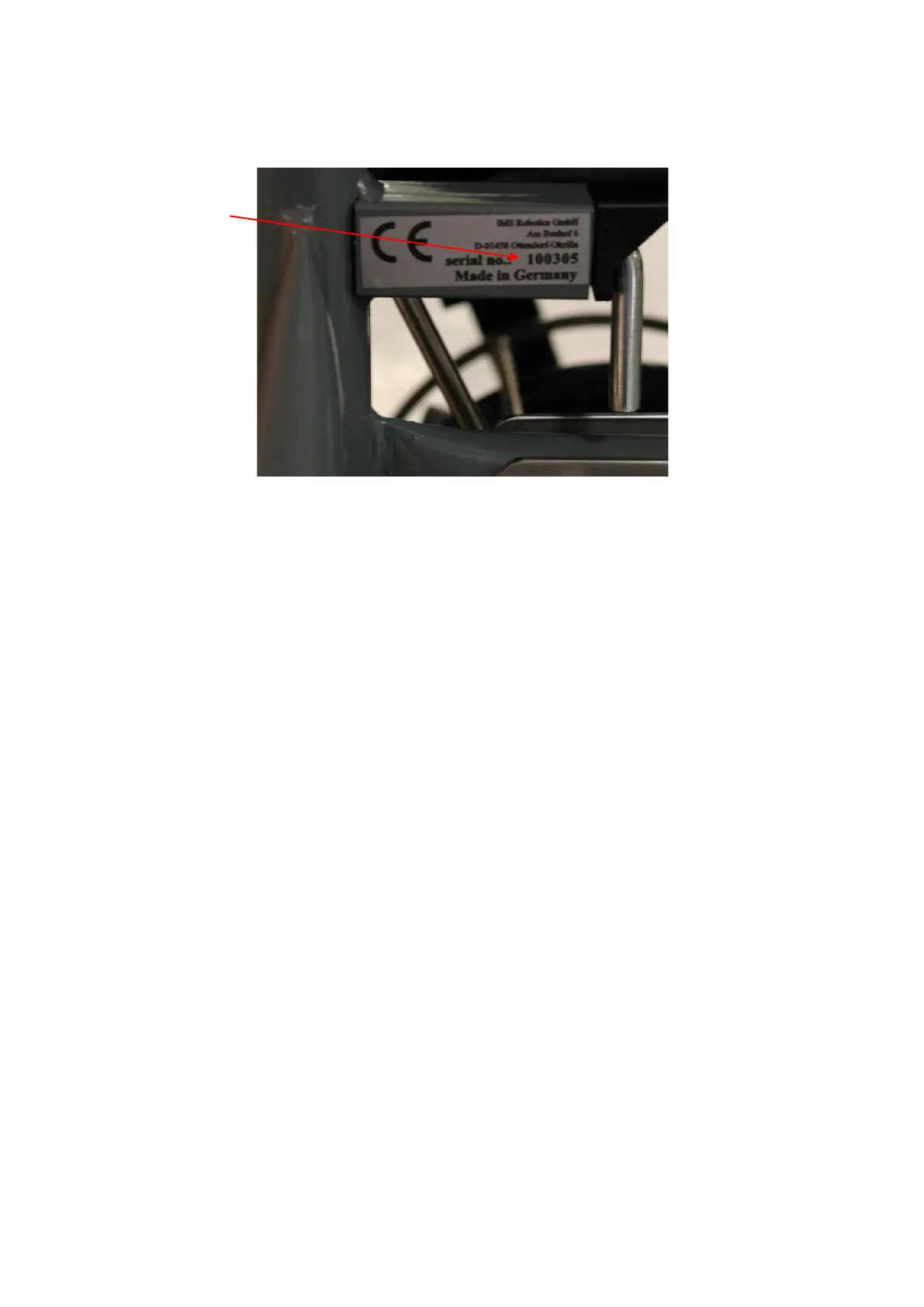

The cutter serial number is located on the rack.
All assemblies have a minimum protection class of IP54. This means that the assemblies are
protected against:
- access by small tools / wires;
- dust; and
- surrounding splash water
The push rod must have an M12 external thread on the coupling.
The media must have the following properties:
Power supply: 100 – 240 VAC, 50/60 Hz, max. 1.6 A
Supply air: Dirt-free (particles < 5 micrometer)
Temperature range 5 °C to max. 40 °C
(41 °F to max. 104 °F)
Residual water separated
Residual oil < 5 mg/m
3
Supply line pressure 10 bar (145 PSI)
min. volume flow 1 m
3
/min (35 CFM)
