Manual de Instalação e Operação

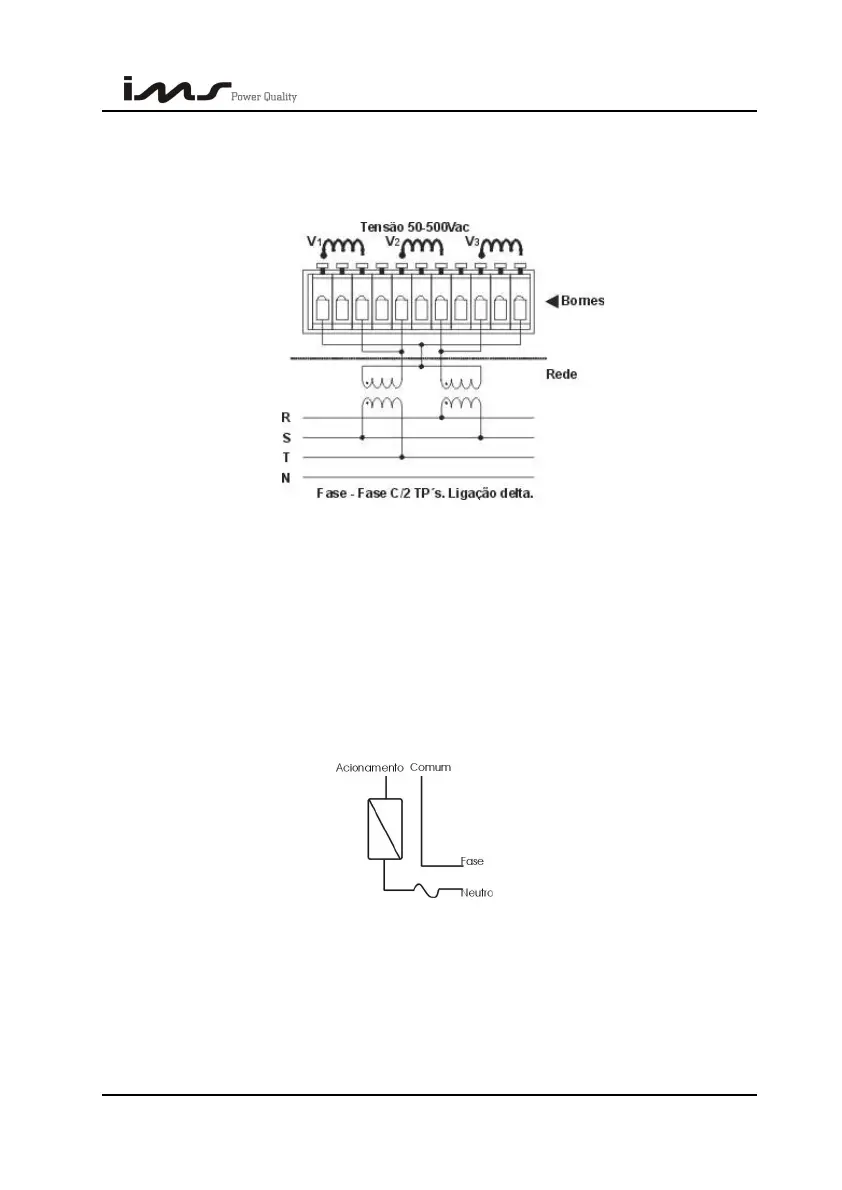

4.2.2.5. PHASE – PHASE VOLTAGE SENSOR WITH 2 PTs
TN:
TENSÃO 50-500VAC = (Voltage 50-500Vac)
Bornes = Terminals
Rede = Net
Fase – Neutro S/TP. Ligação estrela = Phase-Neutral w/PT. Star connection
4.3. OUTPUTS CONNECTION SCHEME
Each controller output should have a protection circuit before being connected to the
contactor
TN
Acionamento = Actuation, Comum = Common, Fase = Phase, Neutro = Neutral.
If possible, do not use the same phase for the device feeding and for contactors feeding
and install noise suppressors in contactors coils. The noise suppressor should be done as
contactor manufacturer specification, or in the case of not existing it can be a series RC
circuit (R=100ohm and C=0,1uF).
SMART CAP 485 42
