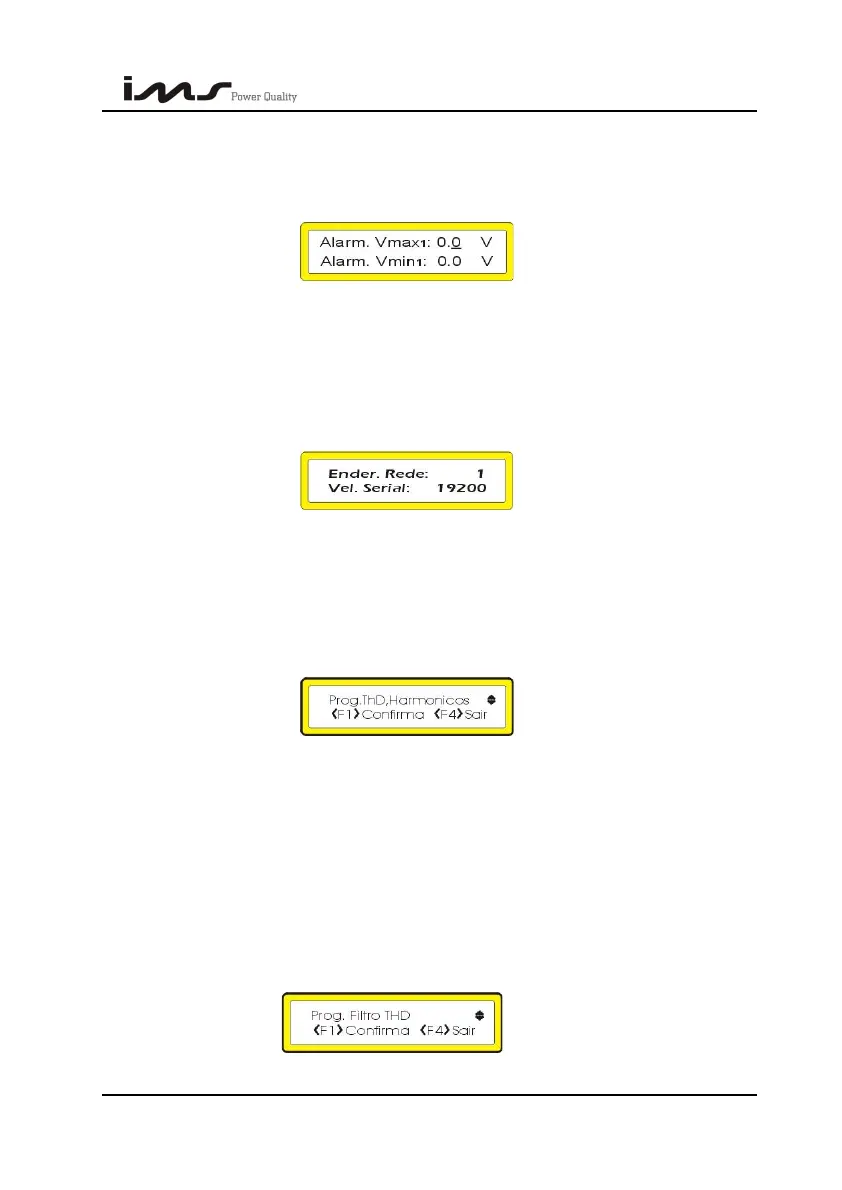

Proceed in the same way for the screens values as follows (Vmax2, Vmin2, Vmax3,

Vmin3, Imax1, Imin1, Imax2, Imin2, Imax3, Imin3, PFmax1, PFmin1, PFmax2, PFmin2, PF

max3, PFmin3, THD_V1, THD_V2,, THD_V3, ).

For THD's alarm the harmonic measurement should be enabled.

9.10. SERIAL COMMUNICATION

These parameters define how Smart Cap 485 will be recognized when being connected

in the net. The net address from 1 until 250 and communication speed of 9600,19200 and

38400bps.

Ender. Rede = Net address , Vel. Serial = Serial speed

9.11. HARMONICS

Go to the screen below using the key F1 and the arrows

Prog ThD Harmonicos = Prog. ThD Harmonics

Then use the arrows to enable (On) or to disable (Off) the voltage harmonics calculation

and press F1 to confirm.

Disabling the harmonics calculation the speed of Smart Cap 485 increases. This

procedure can be useful when it is wished faster updates of the measured values and there

is no need for harmonics measurements.

9.12. THD FILTER ENABLING

Go to the below screen using the key F1 and the arrows

SMART CAP 485 54
