Manual de Instalação e Operação

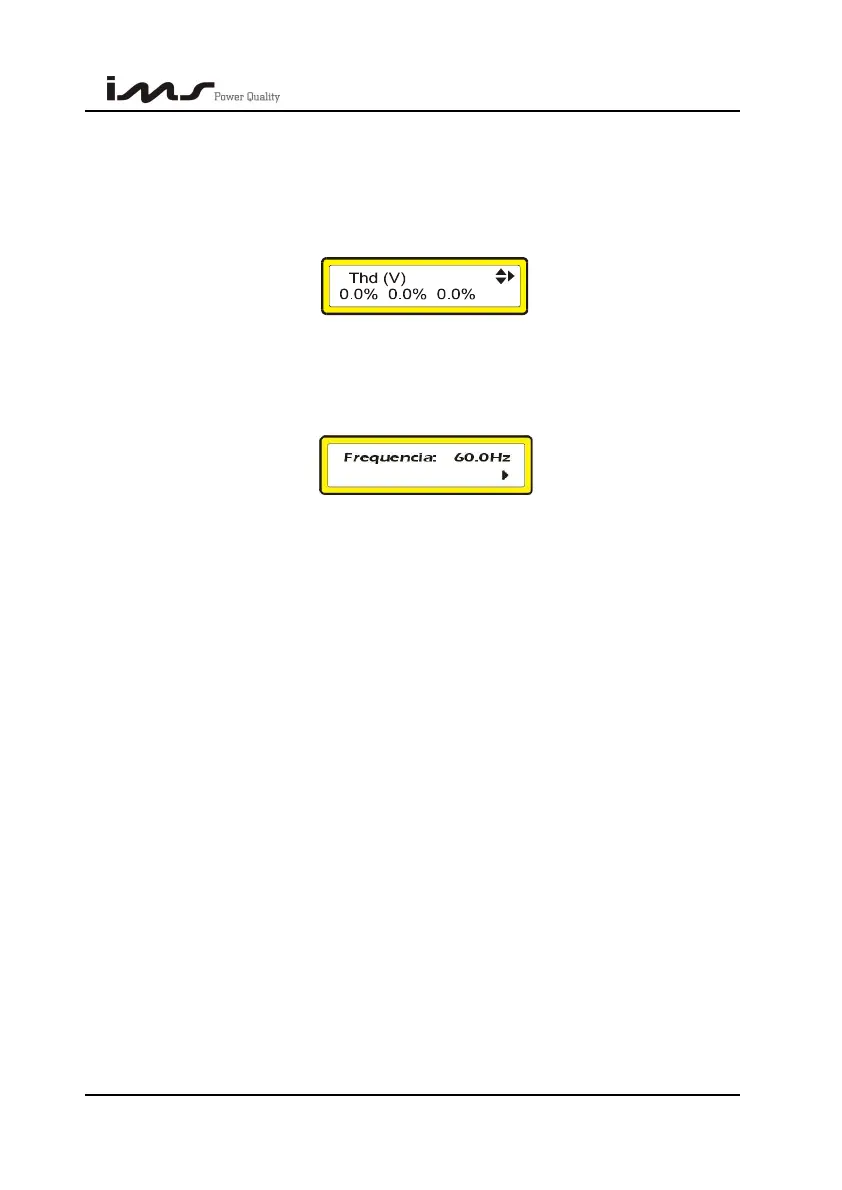

10.6. THD AND HARMONICS
Being enabled the harmonics calculation (see item 9.11), pressing the key THD it will be
shown the screen with Thd's voltages measurement. Using the arrows and it can be
visualized the odd harmonics measurement, per phase, until the eleventh order.
10.7. FREQUENCY
Pressing THD again it is shown the net electric frequency value.
10.8. NUMBER OF COMMUTATIONS
Pressing it is shown the screen with the number of commutations. Use the arrows and
to change visualized capacitors bank.
SMART CAP 485 57
