Lighting & Electrical 96 Section 4
IMT 5005i / 6006i - Manual # 99904387
99906235-3

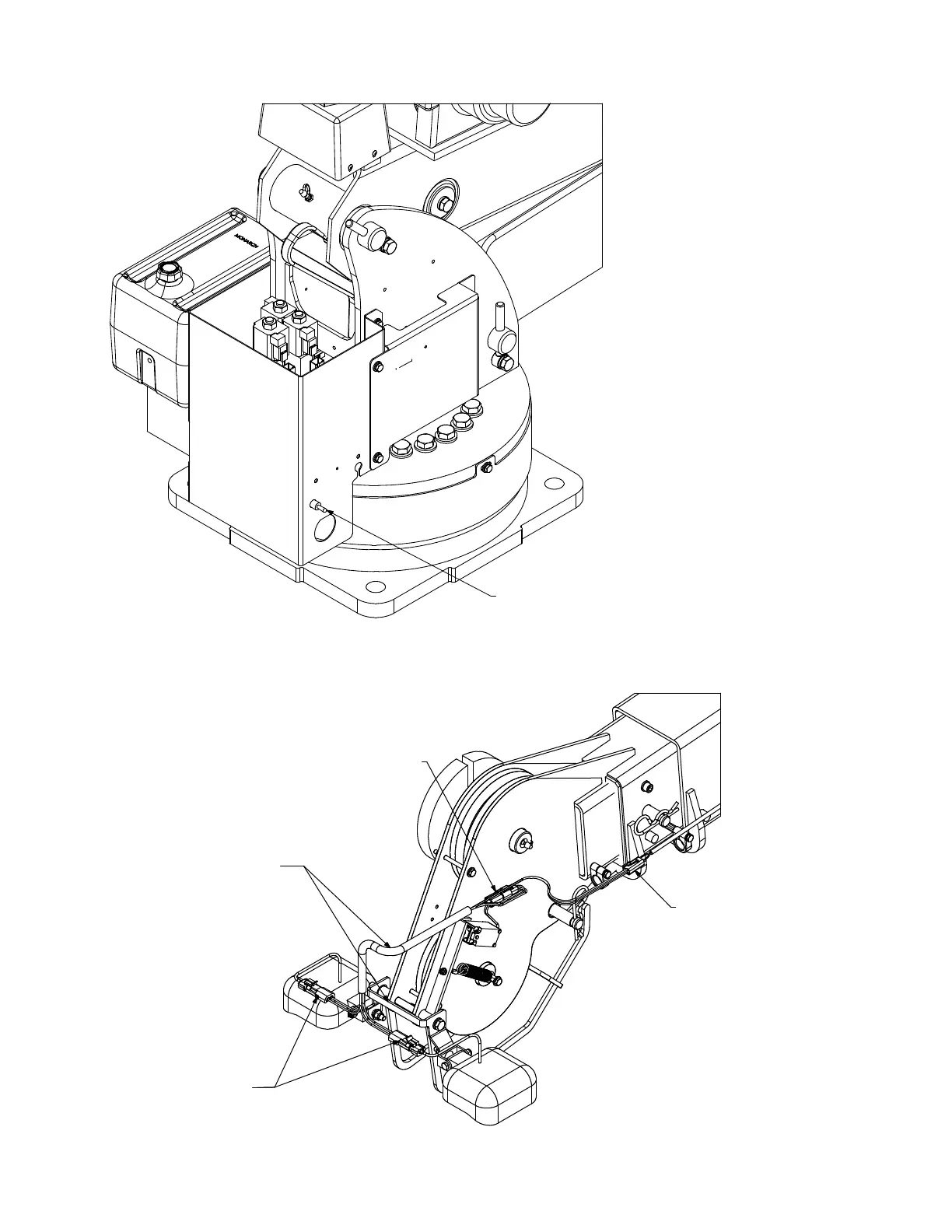

INSTALL TOGGLE SWITCH IN VALVE BANK COVER
TO "UP" AS ON AND "DOWN" AS OFF
NOTE: TOGGLE SWTICH 77041345
ISPART OF HARNESS 77441674
CP-400 CONNECTS TO NEW REEL
CJ-401 CONNECTS TO ADAPTER THAT WAS ATTACHED TO OLD
REEL, OR ATTACHES TO NEW LIMIT SWITCH ADAPTOR
EXCESS HARNESS AND WIRES ARE
ZIP TIED TO LIGHT BRACKET
CJ-200 AND CJ-201 CONNECT
TO THE LIGHT ASSEMBLY
